SY21611FHC (SY67211FHC)

Production
Dual H-bridge Stepper Motor Driver IC
Datasheet
SY21611FHC Dual H-bridge Stepper Motor Driver IC Datasheet
    Part numberSY21611FHC
    Vin (max) !(V)16
    Vin (min) !(V)2.5
    Number of half bridges2
    RDS(on) (HS + LS) !(mΩ)640
    Peak output current !(A)1.1
    Sleep current !(µA)0.1
    Integrated FETs(Yes/No)Yes
    Control interfaceHW
    FeaturesCurrent regulation, Mixed decay, Integrated current sensing, Open circuit detection
    Operating temperature range!(°C)-40 to 85
    PackageSSOP10
    Functional safety category
    • Power Supply Voltage Range from 2.5V to 16V
    • Maximum Drive Current of 800mA RMS Current for Each H-bridge
    • Dual H-bridge Motor Driver
    • Internal Over Current Protection, Short Circuit Protection, Under Voltage Lockout and Thermal Shutdown
    • Low-power Standby Mode
    • SSOP10 Package

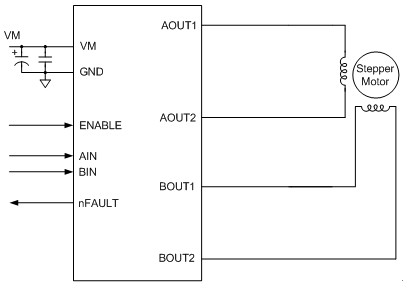

    The SY21611 is a dual H-bridge motor driver designed for use in brushed DC motors, bipolar stepper motors, solenoids, or other inductive load applications. The highly integrated H-bridge driver block consists of two H-bridges with internal logic control, a gate driver, over-current protection, and a charge pump circuit.

    The SY21611 operates with a power-supply voltage range of 2.5V to 16V. It provides protection functions with a fault output pin for over-current protection, short circuit protection, and thermal shutdown. It also features a low-power standby mode.

    The SY21611 is available in a compact SSOP10 package.
