Three Phase Sensorless Sine Wave Motor Driver with Integrated Power MOSFETs
![]()
- Parameters
- Features
- Description
| Part number | SY21643HHP |
|---|
| Vin (max) (V) | 32 |
|---|
| Vin (min) (V) | 5 |
|---|
| RDS(on) (HS + LS) (mΩ) | 200 |
|---|
| Peak output current (A) | 3 |
|---|
| Sleep current (µA) | 200 |
|---|
| Integrated FETs(Yes/No) | Yes |
|---|
| Motor with control method | BLDC with sensorless 180 degree modulation |
|---|
| Control interface | I2C, Analog, PWM |
|---|
| Features | Support 100% PWM, Integrated buck, Code-free sensor-less control, Sine wave current, Initial position detect, Rotor lock protection |
|---|
| Operating temperature range(°C) | -40 to 85 |
|---|
| Package | TSSOP24E |
|---|
| Functional safety category | |
|---|
- Power Supply Voltage Range from 5V to 40V
- Maximum Drive Current of 2A RMS, 3A Peak Current
- Sine Wave Driver
- Integrated 5V or 3.3V Buck Regulator
- I2C Interface
- Speed Setting: PWM/ Analog/I2C
- Forward/Reverse Control
- Sleep Mode
- Over Current Protection
- Motor Lock Protection
- Under Voltage Protection
- Thermal Shutdown
- TSSOP24E Package
The SY21643 is designed for sensorless control of three-phase brushless DC (BLDC) motor, especially for low noise, low external component count and high efficiency applications. The SY21643 also integrates three half-H-bridges, which have low turn on resistance. A 180° modified SPWM is used to reduce the motor noise and torque ripple. The device can be easily configured through an I2C interface to drive different motors.
The SY21643 supplies several protections and abnormal state detections to ensure reliable operation of the motor, such as over current protection, short circuit protection, under voltage lockout, thermal shutdown and abnormal motor states protection. A low-power sleep mode is also provided.
To be compatible with industry-standard devices, the SY21643 package is 24-pin TSSOP24E.

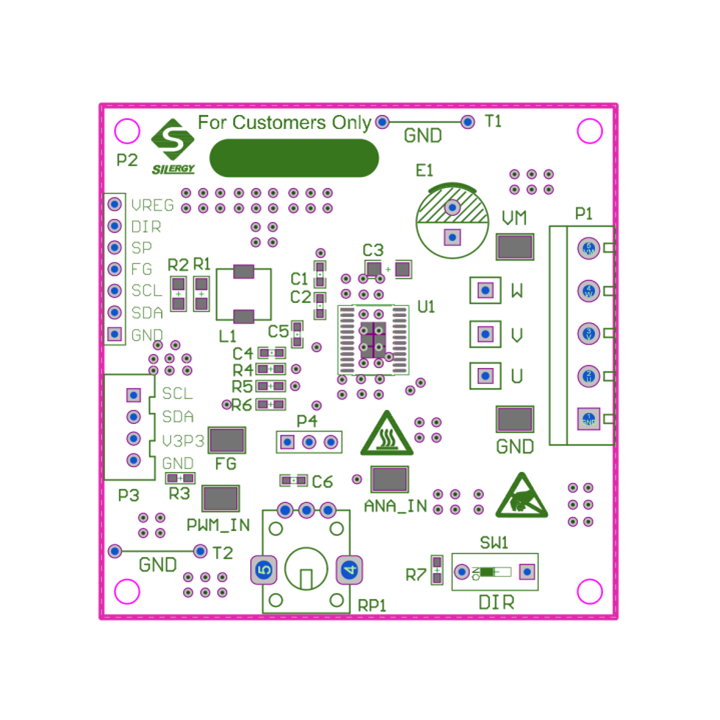

Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
The EVB_SY21643HHP is intended for evaluating Three Phase Sensorless Sine Wave Motor Driver with Integrated Power MOSFETs SY21643HHP.
