SY21672DFD

Production
High Efficiency Single H-Bridge Motor Driver IC
Datasheet
SY21672DFD High Efficiency Single H-Bridge Motor Driver IC Datasheet
    Part numberSY21672DFD
    Vin (max) (V)12
    Vin (min) (V)2.5
    Number of half bridges
    RDS(on) (HS + LS) (mΩ)450
    Peak output current (A)
    Sleep current (µA)
    Integrated FETs(Yes/No)
    Control interface
    Features
    Operating temperature range(°C)
    PackageDFN2x2-8
    Functional safety category
    • H-bridge Motor Driver：Drives a Brush DC Motor or One Winding of a Stepper Motor or Other Loads
    • Low MOSFET On-resistance
    • 1.8A Maximum Drive Current
    • Power Supply Voltage Range from 2.5V to 16V
    • Low Power Sleep Mode
    • Internal Over Current Protection, Short Circuit Protection, Under Voltage Lockout and Thermal Shutdown
    • Compact Package: DFN2×2-8

    Evaluation Board

    • 1

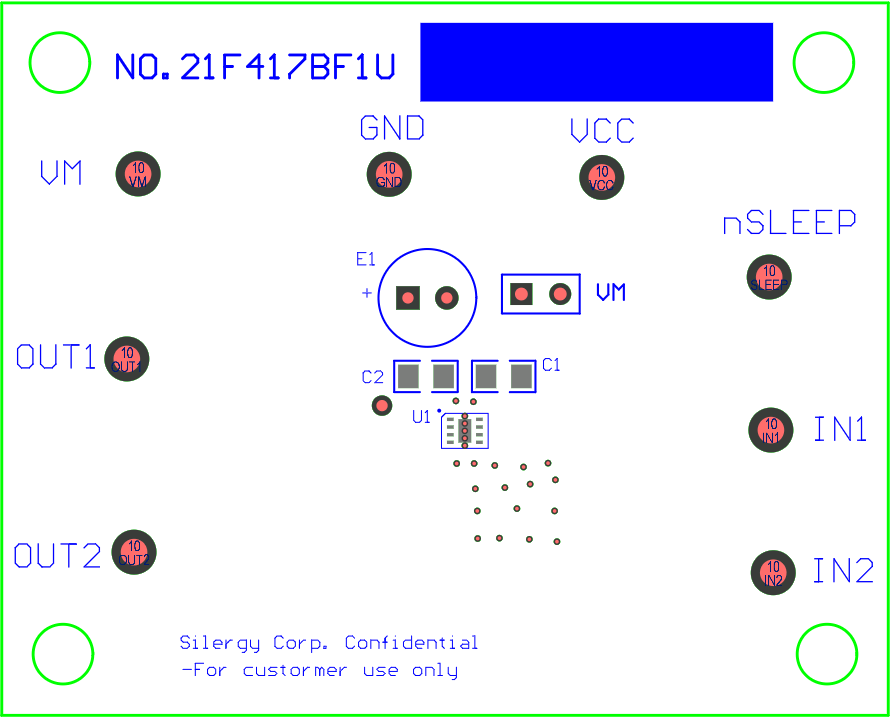

      Photo of evaluation board

    • 2

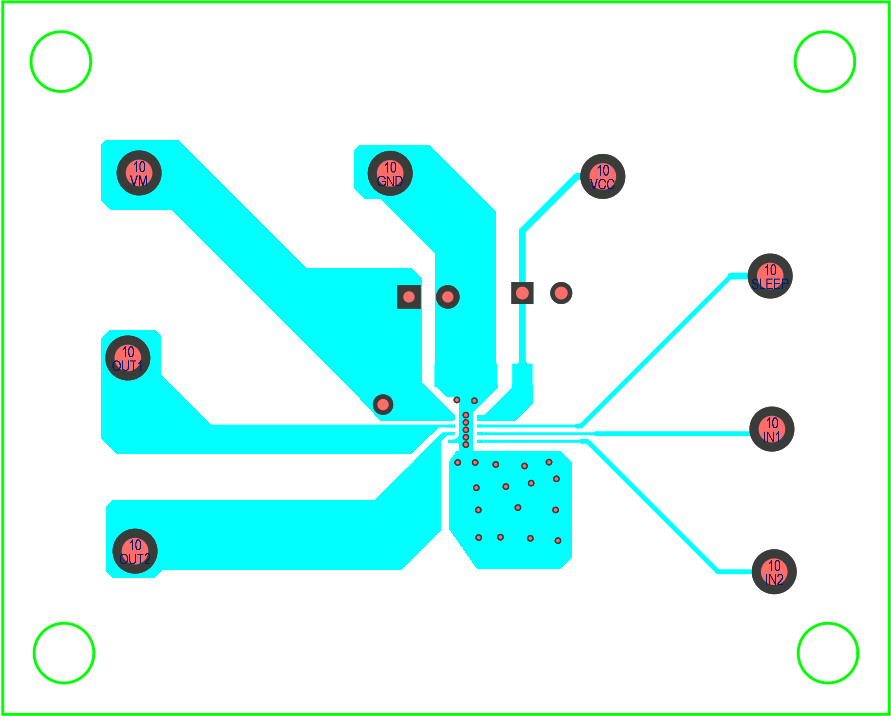

      Photo of evaluation board

    • 3

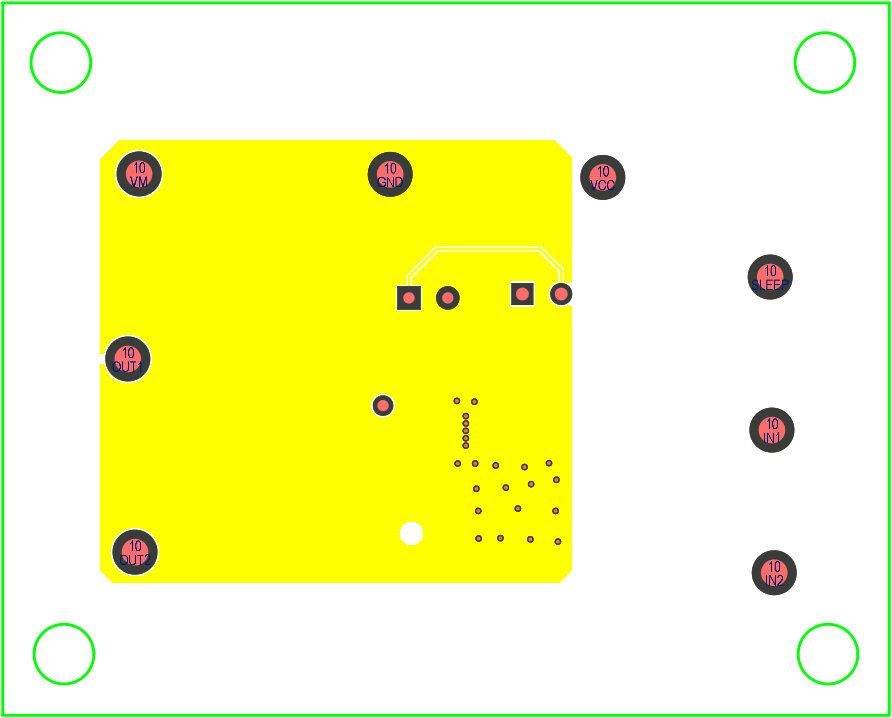

      Photo of evaluation board

    EVB_SY21672DFD

    The EVB_SY21672DFD is intended for evaluating High Efficiency H-Bridge Motor Driver IC.

    Technical Documentation
