SY21673QIQ

Production
High Efficiency Dual H-Bridge Motor Driver IC
Datasheet
SY21673QIQ  High Efficiency Dual H-Bridge Motor Driver IC Datasheet
    Part numberSY21673QIQ
    Vin (max) (V)16
    Vin (min) (V)2.5
    Number of half bridges
    RDS(on) (HS + LS) (mΩ)480
    Peak output current (A)
    Sleep current (µA)
    Integrated FETs(Yes/No)
    Control interface
    Features
    Operating temperature range(°C)
    PackageQFN4x4-16
    Functional safety category
    • Dual H-bridge Motor Driver
    • Maximum Drive Current of 1.5A RMS Current for Each H-bridge
    • Power Supply Voltage Range from 2.5V to 16V
    • PWM Winding Current Regulation/Limit
    • Internal OCP/UVLO and Thermal Shutdown
    • Compact Packages: QFN4×4-16

    Evaluation Board

    • 51

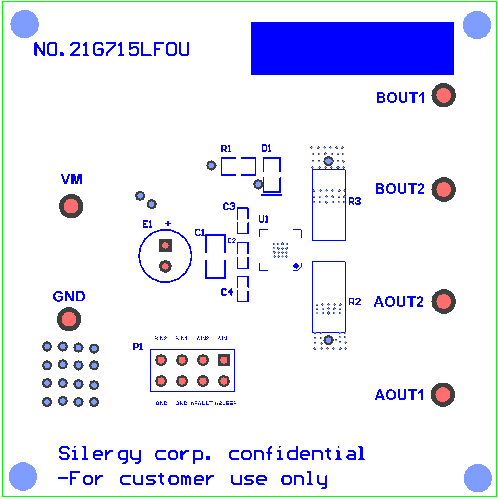

      Photo of evaluation board

    • 52

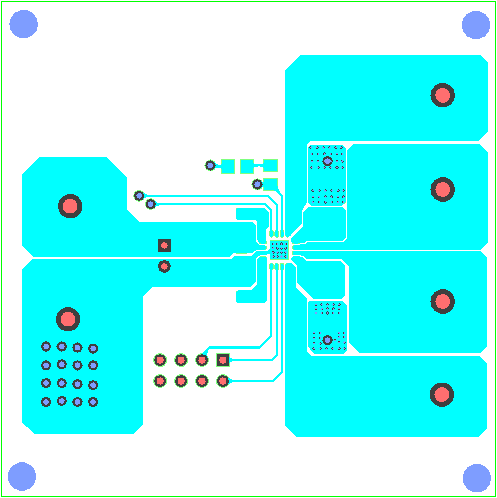

      Photo of evaluation board

    • 53

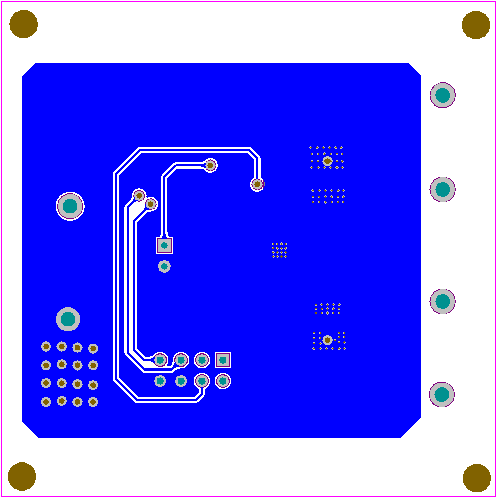

      Photo of evaluation board

    EVB_SY21673QIQ

    The EVB_SY21673QIQ is intended for evaluating High Efficiency H-Bridge Motor Driver IC.
