SY22652ZFAC (SY5882ZFAC)

Production

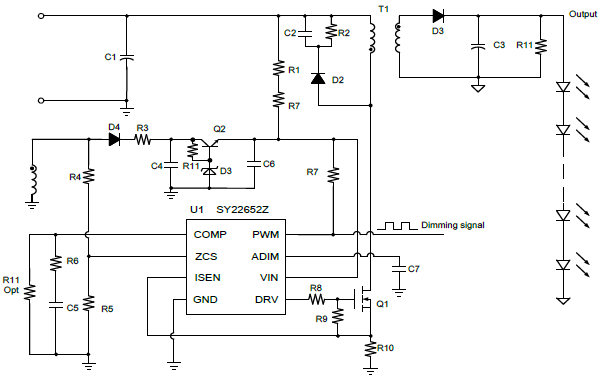

DC/DC Flyback Controller with Primary Side Control for LED Lighting and Analog Dimming mode
Datasheet
SY22652ZFAC DC/DC Flyback Controller with Primary Side Control for LED Lighting and Analog Dimming mode Datasheet
    Part NumberSY22652ZFAC
    Dimming ModeAnalog
    TopologyFlyback
    PackageSO8
    Protection ModeOLP,SLP
    Features / Special FunctionLow Ripple,QR
    Input Type400Vdc
    Po_max (W)150
    PF (>)0.5
    ApplicationDC Dimming Controller
    Idrive_max (A)200
    • 2.5%~100.0% Dimming Range.
    • CV Mode for Bias Supply when PWM=0.0%.
    • Primary Side Control Eliminates the Opto-coupler.
    • Valley Turn-on of the Primary MOSFET to Achieve Low Switching Losses
    • 200mA  Sourcing Current and 600mA Sinking Current Drive Capability
    • Low Start up Current: 34μA Typical
    • Reliable Short LED and Open LED Protection
    • Low Power Frequency Ripple
    • Compact Package: SO8

    Evaluation Board

    • 2022-02-21_153805

      Photo of evaluation board

    • 2022-02-21_153814

      Photo of evaluation board

    • 2022-02-21_153826

      Photo of evaluation board

    EVB_SY22652ZFAC

    The EVB_SY22652ZFAC is intended for evaluating  AC 198~264V input, 42V/1000mA output DC/DC Flyback Controller With Primary Side Control For LED Lighting
