Flyback controller
For adapters or chargers
- Parameters
- Features
- Description
| Part number | SY22815FAC |
|---|
| Pout (max) (W) | 100 |
|---|
| HV startup | YES |
|---|
| Operation mode | QR |
|---|
| Driving FETs type | MOS |
|---|
| No load loss (mW) | <50 |
|---|
| Switching frequency (min)(kHz) | 60 |
|---|
| Switching frequency (max)(kHz) | 125 |
|---|
| Features | Valley switch,Burst mode |
|---|
| Package | SO8 |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- Quasi-Resonant (QR) mode operation: Valley turn on of the primary MOSFET to achieve low switching losses
- Output current is monitored by primary detection for reliable Over Current Protection and Short Circuit Protection
- PWM/PFM control for higher average efficiency
- Burst mode control for low no load loss and efficiency
- HV start up circuit is used to reduce no-load
- Internal high current MOSFET driver: 120mA
- Auto-Recovery for OVP/OCP/SCP/OTP
- Maximum frequency limitation 125kHz
- Compact package: SO8
Evaluation Board

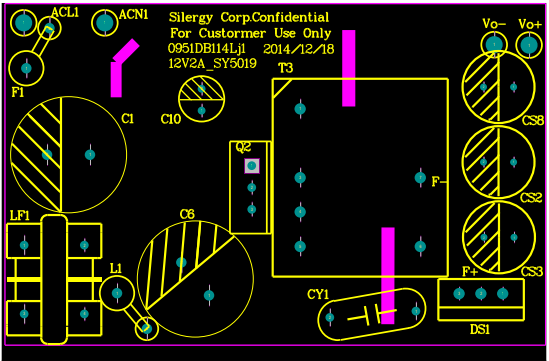

Photo of evaluation board

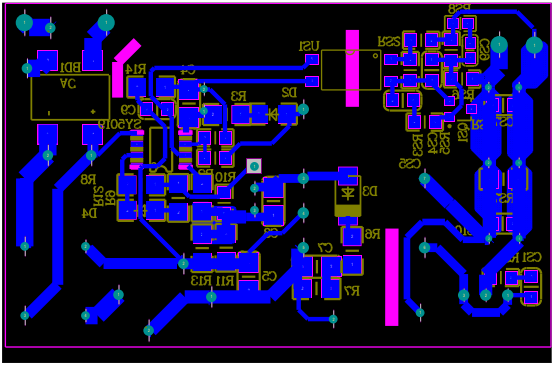

Photo of evaluation board
The EVB_SY22815FAC is intended for evaluating Flyback controller For adapters or chargers
