CCM+QR SSR Flyback Controller
- Parameters
- Features
- Description
| Part Number | SY22818CFAP |
|---|
| Input Type | AC |
|---|
| Topology | Flyback |
|---|
| Application | Adapters,Chargers |
|---|
| Po_max (W) | 100 |
|---|
| Accuracy (max) | ±1.5% |
|---|
| Idrive_max (A) | 120 |
|---|
| No Load Loss | <75mW |
|---|
| Fsw(kHz) | 125 |
|---|
| Protection Mode | OCP,OVP,SCP,OTP |
|---|
| Standards & Certification | EnergyStar_Lv.6 |
|---|
| Features / Special Function | QR,SSR |
|---|
| Package | SO8 |
|---|
| Temp Range | -40°C to 125°C |
|---|
- Wide VCC Operating Range: 10~90V
- HV Start up
- Mixed CCM+QR Control Strategy
- Pseudo Fixed Frequency Control to Eliminate Slope Compensation under CCM
- 65kHz Fixed Switching Frequency under CCM 90kHz Switching Frequency Limit under QR Mode
- Frequency Fold Back for High Average Efficiency
- Minimum Switching Frequency Limited to 28kHz
- Burst Control for High Light Load Efficiency
- Comprehensive Protections Including BO, Input OVP, Output OVP/UVP, VCC OVP, OLP, External OTP, OTP, Secondary SR MOS SCP, etc.
- Gate Drive Capability: +70mA/-500mA
- Internal Soft-start Process
- Compact Package: SO8
Evaluation Board

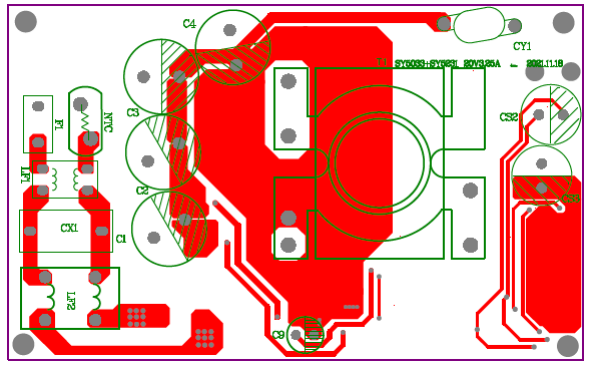

Photo of evaluation board

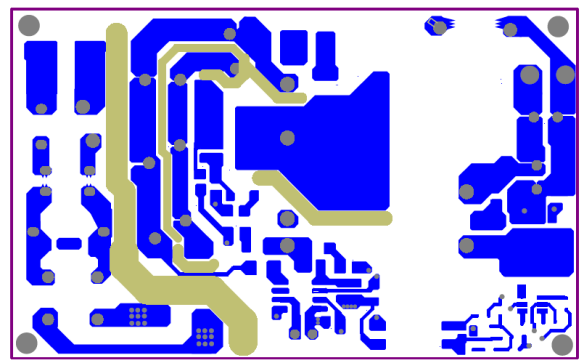

Photo of evaluation board
The EVB_SY22818CFAP is intended for evaluating SSR Flyback Controller for Quick Charger
