Flyback controller for adapters or chargers
Datasheet
SY22862CFAC Flyback controller for adapters or chargers Datasheet
    Part NumberSY22862CFAC
    DescriptionFlyback controller for adapters or chargers
    Po_max (W)12
    BV (V)
    ApplicationIsolation
    No Load Loss<75mW
    Protection ModeOCP/OVP
    Standards & Certification
    PackageSO8
    • Quasi-Resonant (QR) mode operation: Valley turn-on of the primary MOSFET to achieve low switching losses
    • Output current is monitored by primary detection for reliable Over Current Protection and Short Circuit Protection
    • PWM/PFM control for higher average efficiency
    • Burst mode control for improved efficiency
    • Low start up current: 4μA Max
    • Maximum frequency limitation 125kHz
    • Auto-Recovery OVP/OCP/SCP/OTP
    • Integrated 600V MOSFET
    • Compact package: SO8



    Evaluation Board

    • 22862-9

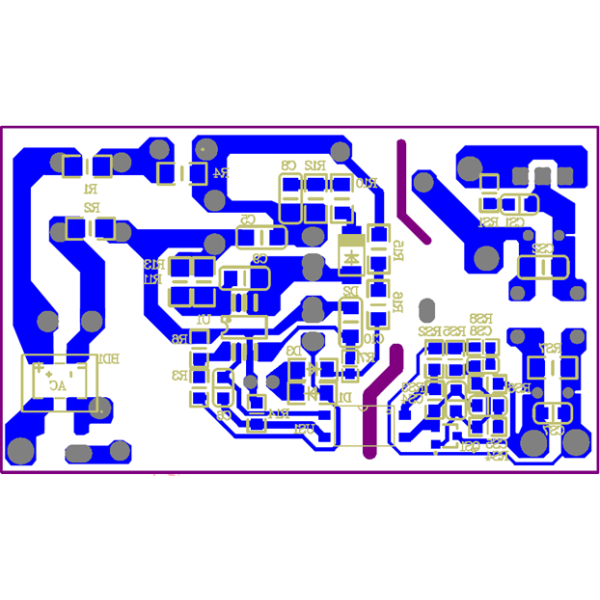

      Photo of evaluation board

    • 22862-8

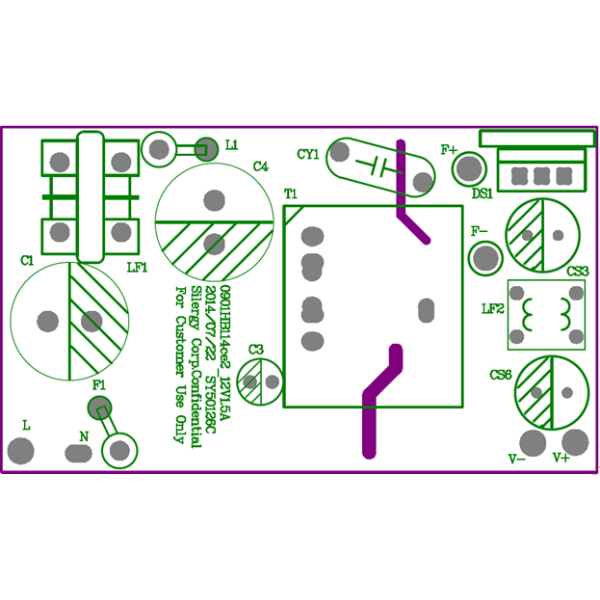

      Photo of evaluation board

    EVB_SY22862CFAC

    The EVB_SY22862CFAC is used to evaluate a PWM/PFM controller with several features to enhance performance of Flyback converters that targeting at adapter or charger applications.
