CCM+QR Mode SSR Flyback Controller
- Parameters
- Features
- Description
| Part Number | SY23510ABC |
|---|
| Input Type | AC |
|---|
| Topology | |
|---|
| Application | AC/DC Power Supply |
|---|
| Po_max (W) | |
|---|
| Accuracy (max) | |
|---|
| Idrive_max (A) | |
|---|
| No Load Loss | <75mW |
|---|
| Fsw(kHz) | |
|---|
| Protection Mode | OTP, OLP, VCC OVP |
|---|
| Standards & Certification | EnergyStar_Lv.6 |
|---|
| Features / Special Function | CCM,QR |
|---|
| Package | SOT23-6 |
|---|
| Temp Range | |
|---|
- Rated Switching Frequency: 65kHz
- CCM+QR Combined Operating Mode
- Frequency Fold Back and Burst Mode Control
- Minimum Switching Frequency Limited to 25kHz
- FSW Modulation to Reduce EMI Noise
- Programmable Brownout Protection by ZCS Pin
- Programmable Output OVP by ZCS Pin
- Programmable External OTP by CS Pin
- OLP, VCC OVP, Internal OTP
- Secondary Diode Short Circuit Protection
- OCP Compensation Over Universal Input Range
- Low Start up Current: <4uA
- Gate Drive Capability: 210mA/420mA(source/sink)
- Internal Soft Start Process
- RoHS Compliant and Halogen Free
- Compact Package: SOT23-6
Evaluation Board

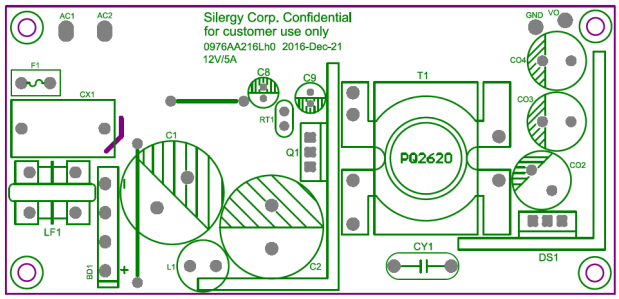

Photo of evaluation board

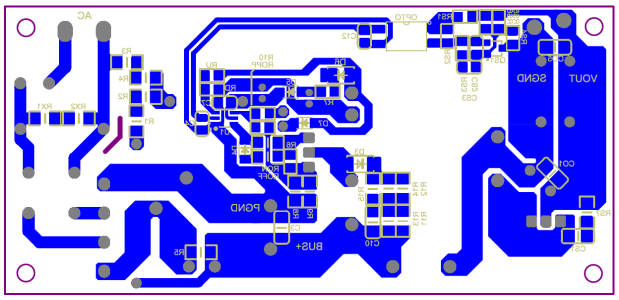

Photo of evaluation board
The EVB_SY23510ABC is intended for evaluating SSR flyback controller for notebook adapter
