Small Size, Low-Power, Unidirectional, Zero-Drift Current-sense Amplifier
- Parameters
- Features
- Description
| Part Number | SY24644WMS |
|---|
| Description | current-sense amplifier |
|---|
| Vcc_min (V) | 2.7 |
|---|
| Vcc_max (V) | 5.5 |
|---|
| CM Sense Range | 1.8-5.5 |
|---|
| DM Sense Range | 52 |
|---|
| Iq (uA) | 18 |
|---|
| Gain | 100 |
|---|
| Accuracy (max) | / |
|---|
| Gain Error (max) | ±0.18% |
|---|
| Offset (max) | ±45 |
|---|
| Features / Special Function | small size，low power，unidirectional |
|---|
| Package | CSP0.76×0.76-4 |
|---|
- Voltage-output, Current-sense Amplifier
- Common-mode Range: +1.8V to +5.5V
- Gain=100V/V
- Low offset Voltage: ±7μV (typical)
- Offset Drift: 0.2 µV/℃ (maximum)
- Gain Error: 0.06% (typical)
- Gain Drift: 1 ppm/℃ (maximum)
- Quiescent Current: 18μA (typical)
- Buffered Voltage Output: No Additional OP-AMP Needed
- Compact Package: CSP0.76×0.76-4
The SY24644 is a high-side voltage output current-sense amplifier that can sense drops across shunts at common-mode voltages from +1.8V to +5.5V with a gain of 100V/V. The small size makes it suitable for applications in cell phones, mobile accessories, notebooks, portable medical, and all battery-operated portable devices where the precision and space of current sensing are critical.
The device operates from a single +1.8V to +5.5V power supply, drawing 18μA (typical) of supply current. The SY24644 operating temperature range is from –40°C to +125°C.
Supply voltage for the device is shared with the IN+ pin to reduce the pin count.
The SY24644 is available in a 4-bump, ultra-thin CSP package.

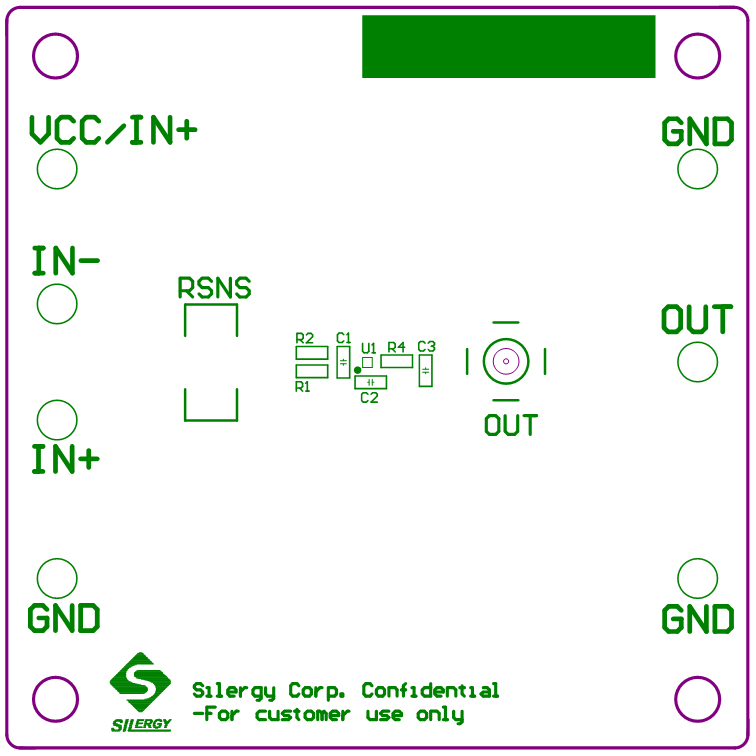

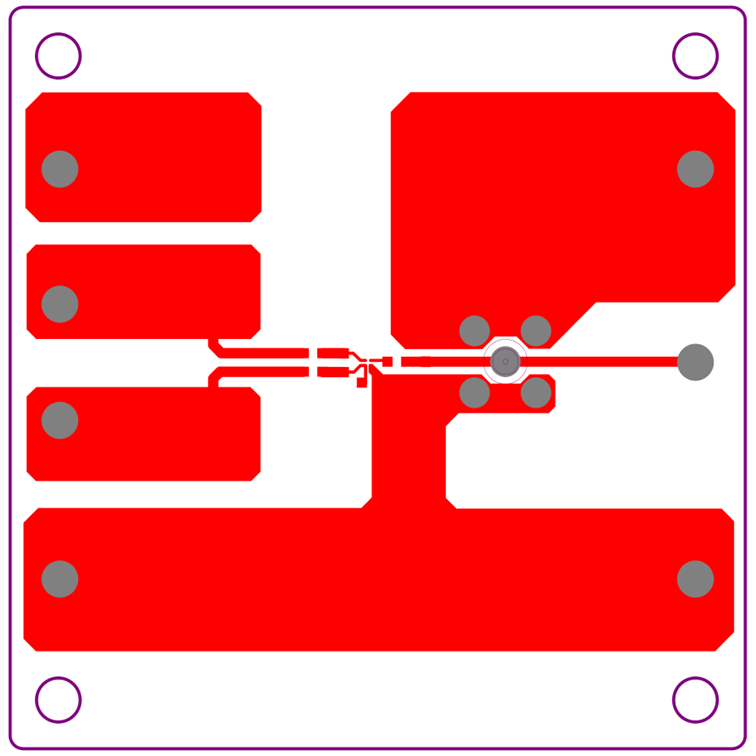

Evaluation Board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
The EVB_SY24644WMS is intended for evaluating Small Size, Low-Power, Unidirectional, Zero-Drift Current-sense Amplifier SY24644WMS.
