SY26056WEQ

Production
6A Continuous Source or Sink Current Synchronous Step Down Regulator for DDR Termination
Datasheet
SY26056WEQ 6A Continuous Source or Sink Current Synchronous Step Down Regulator for DDR Termination Datasheet
    Part NumberSY26056WEQ
    Vin_min (V)0.8
    Vin_max (V)6
    Io_max (A)6
    Channels1
    Vo_min (V)0.4
    Fsw (MHz)0.6/1
    Vref (V)0.4
    Vref Accuracy±1%
    Iq (uA)
    Rdson118
    Rdson210
    Soft Start1.6ms Internal
    PackageQFN3.5x4-20
    TopologyBuck
    Protection Modehic-cup
    Features / Special FunctionPFM or FCCM
    Temp Range-40°C to 125°C
    • 0.8V to 6V Conversion Voltage
    • Adjustable Output Voltage from 0.4V to 1.2V
    • Support DDR Termination with up to 6A Continuous Output Source or Sink Current
    • Low RDS(ON) for Internal Switches (Top/Bottom):18mΩ /10mΩ
    • Selectable 600kHz or 1MHz Switching Frequency
    • Selectable Over Current Limit
    • Selectable PFM or FCCM
    • Start-up with Pre-biased Voltage
    • External Tracking
    • Internal Soft start at Non-tracking Operation
    • Power Good Indicator
    • Over Voltage, Over Temperature and Hic-cup Under Voltage Protection
    • RoHS Compliant and Halogen Free
    • Compact Package: QFN3.5×4-20
    • MSL 3 Compliant

    Evaluation Board

    • 26056-1

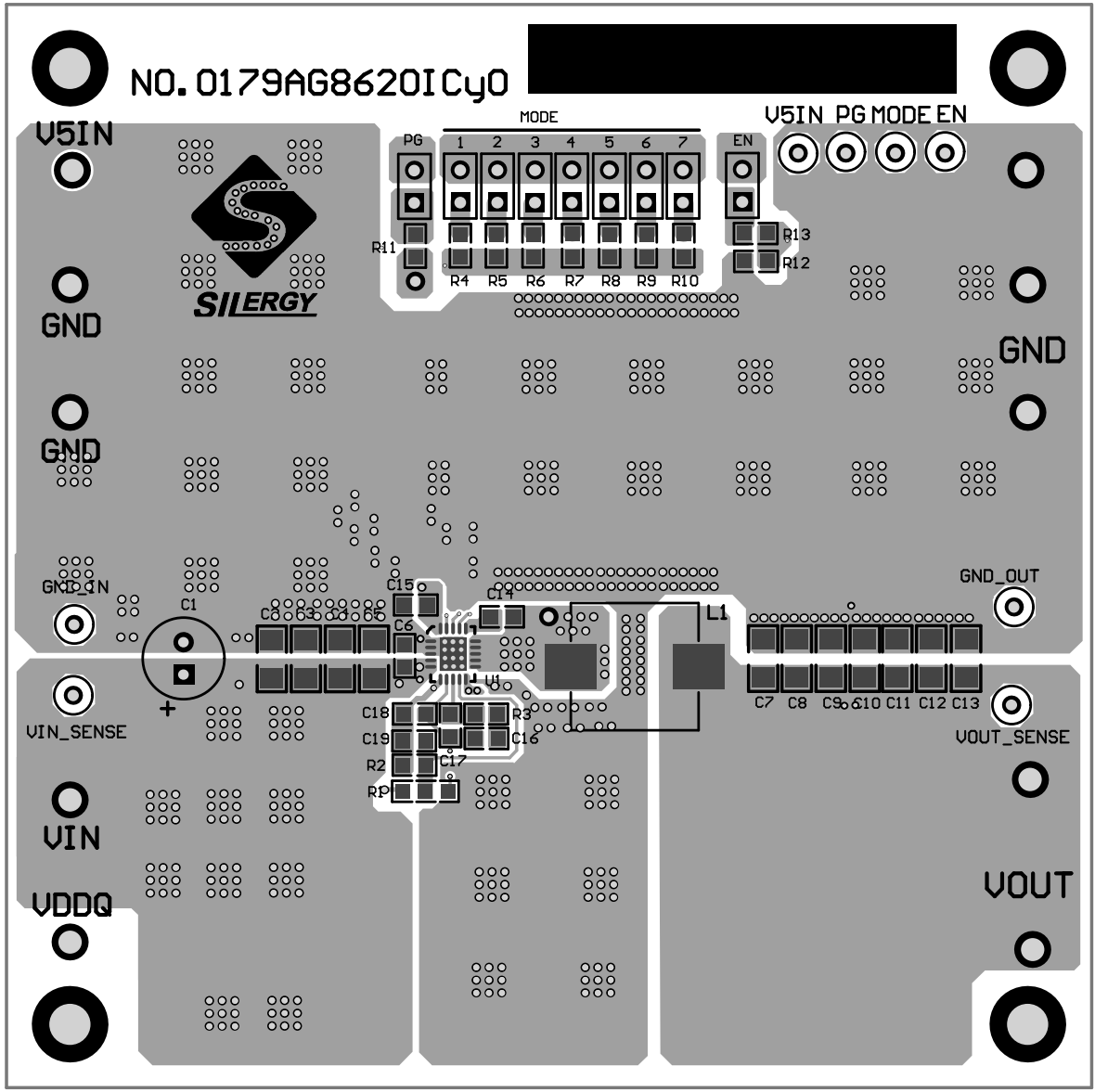

      Photo of evaluation board

    • 26056-2

      Photo of evaluation board

    • 26056-3

      Photo of evaluation board

    • 26056-4

      Photo of evaluation board

    • 26056-5

      Photo of evaluation board

    EVB_SY26056WEQ

    The EVB_SY26056WEQ is intended for evaluating 600kHz/1MHz 6A (Sink or Source current) synchronous Buck regulator.
