SY28903FBP

Production
2.5V to 18V High Efficiency Power Limiting Hot-swap Controller
Datasheet
SY28903FBP 2.5V to 18V High Efficiency Power Limiting Hot-swap Controller Datasheet
    Part NumberSY28903FBP
    Vin_min (V)2.5
    Vin_max (V)18
    Io_max (A)
    Rdson1
    Channels1
    EnableActive High
    Features / Special FunctionPower Limiting Hotswap Controller Programmable FET SOA Protection/Fault Timer/UV Threshold
    PackageMSOP10
    • 2.5V to 18V Operation
    • Accurate Current Limiting for Startup
    • Programmable FET SOA Protection
    • Accurate 25mV Current-Sense Threshold
    • Power Good Output
    • Fast Breaker for Short-Circuit Protection
    • Programmable Fault Timer
    • Programmable UV Threshold
    • RoHS Compliant and Halogen Free
    • MSOP-10 Package

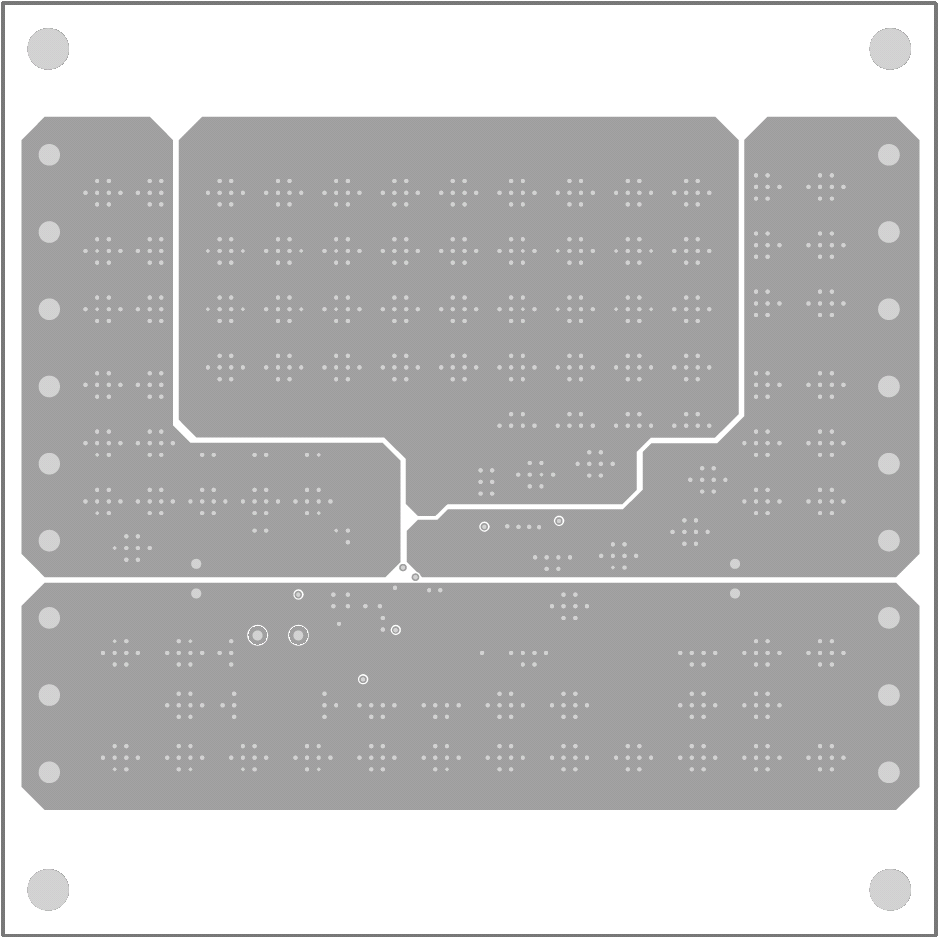

    Evaluation Board

    • 28903-1

      Photo of evaluation board

    • 28903-2

      Photo of evaluation board

    • 28903-3

      Photo of evaluation board

    • 28903-4

      Photo of evaluation board

    • 28903-5

      Photo of evaluation board

    EVB_SY28903FBP

    The EVB_SY28903FBP is intended for evaulating 2.5V to 18V, high efficiency Power Limiting Hot-swap Controller SY28903FBP.

    Technical Documentation
