SY2A22402FCA (SA24401FCA)

Production
5μA Quiescent Current, 0.6A, 40V Input Synchronous Step Down Regulator
Datasheet
SY2A22402FCA 5μA Quiescent Current, 0.6A, 40V Input Synchronous Step Down Regulator Datasheet
    Part numberSY2A22402FCA
    Channel(#)1
    Vin (min) (V)4.25
    Vin (max) (V)40
    Switching frequency (min)(kHz)500
    Switching frequency (max)(kHz)500
    Vout (min) (V)1
    Vout (max) (V)37.6
    Iout (max) (A)0.6
    Vout2 (min)(V)
    Vout2 (max )(V)
    Iout2 (max)(A)
    Vref accuracy (±%)3
    Vout accuracy(±%)
    Control modePeak current control
    Duty cycle (max)(%)94
    Operation modePFM
    Iq (typ) (uA)5
    FeaturesEnable,Power good,Fixed soft-start,Low Iq,UVP with hiccup,Low ISD,Cycle by cycle overcurrent protection,Pre-bias startup
    PackageSO8E
    Operating temperature range(°C)-40 to 125
    Functional safety category
    • Input Voltage Range: 4.25V to 40V
    • Output Current Capability: 0.6A
    • Low RDS(ON) for Internal Switches: 225mΩ (Top), 150mΩ (Bottom)
    • Low Quiescent Current: 5μA
    • Switching Frequency: 500kHz
    • Internal Soft-Start Limits the Inrush Current
    • Short-Circuit Protection
    • Thermal Shutdown and Auto Recovery
    • Power Good Indicator
    • Compact Package: SO8E
    • Automotive AEC-Q100 Grade 1 Certified

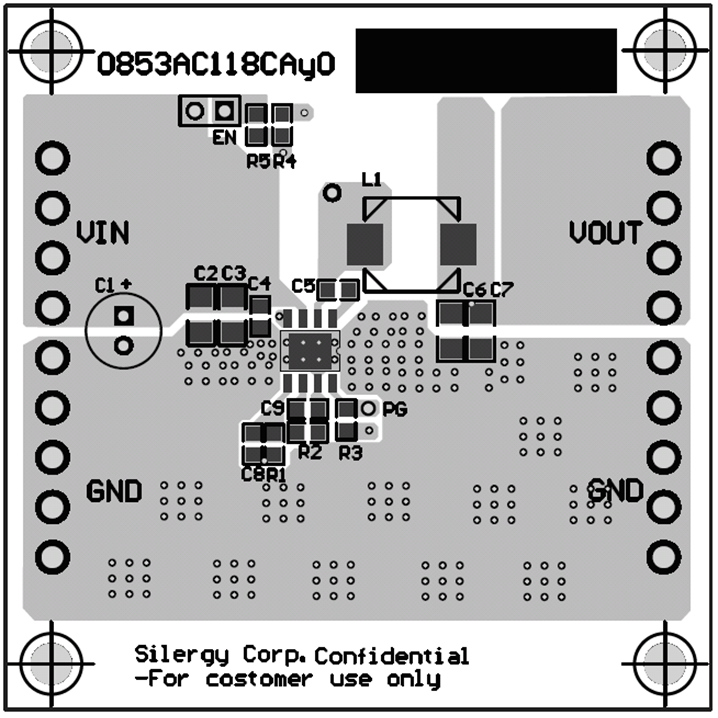

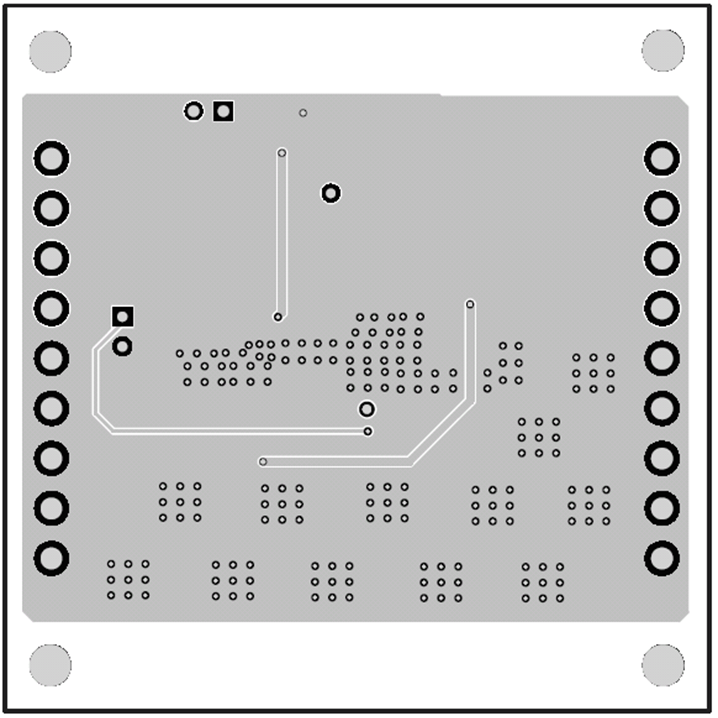

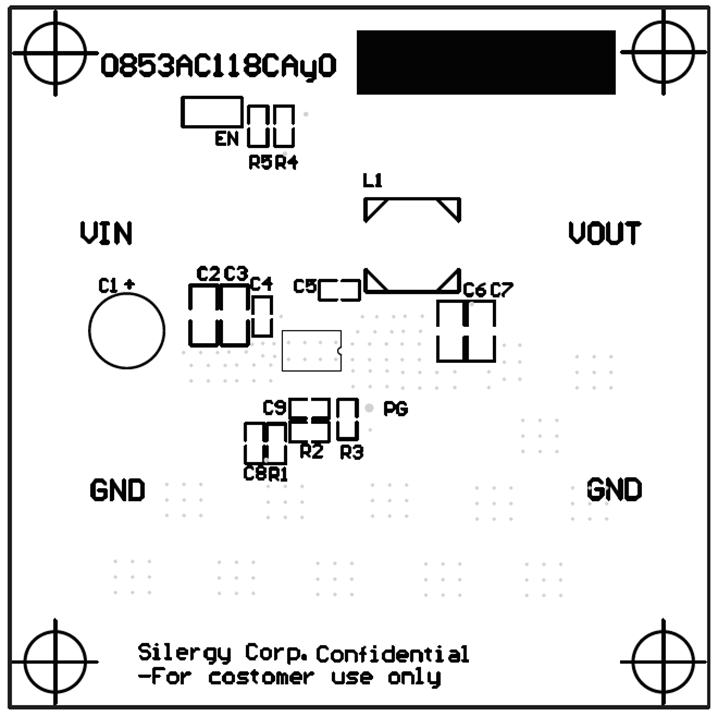

    The SY2A22402 high-efficiency synchro-nous step-down DC/DC converter operates over a wide input voltage range of 4.25V to 40V and delivers up to 0.6A load current. The device integrates very low RDS(ON) main and synchronous MOSFETs to minimize conduction losses.
    The SY2A22402 utilizes a peak current control strategy with a constant switching frequency. The SY2A22402 operates at a 500kHz switching frequency with resistor programmable output voltage.
    The device operates with low quiescent current to achieve high efficiency under light load conditions and includes an internal soft-start feature to limit inrush current during power-on.
    Short-circuit and thermal protection are provided for reliable operation.
    The SY2A22402 is available in an SO8E package.
