SY2A27357GFAA (SA21345GFAA)
40V 150mA LDO
- Parameters
- Features
- Description
| Part number | SY2A27357GFAA |
|---|
| Vin (max) !(V) | 36 |
|---|
| Vin (min) !(V) | 4 |
|---|
| Iout (max) !(A) | 0.15 |
|---|
| Output type | Fixed |
|---|
| Vout (max) !(V) | 5 |
|---|
| Vout (min) !(V) | 5 |
|---|
| Iq (typ) !(uA) | 15 |
|---|
| PSRR at 100kHz !(dB) | 35 |
|---|
| Accuracy !(±%) | 2 |
|---|
| Features | Fixed soft-start,Over current protection,Output short to ground protection (hiccup mode),Thermal shutdown |
|---|
| Operating temperature range!(°C) | -40 to 125 |
|---|
| Package | SO8 |
|---|
| Functional safety category | Functional safety capable |
|---|
- Wide Input Voltage Range: 4V to 36V
- Low Dropout Voltage (150mV @ 150mA)
- Ultra-low Quiescent Current
- Stability with Tantalum or Ceramic Capacitors
- Excellent Load And Line Regulation
- 150mA Maximum Load Current for SO8
- Over Current Protection
- Thermal Shutdown Protection
- Compact SO8 Package
- RoHS Compliant and Halogen Free
- Automotive AEC- Q100 Grade 1 Certified
Evaluation Board

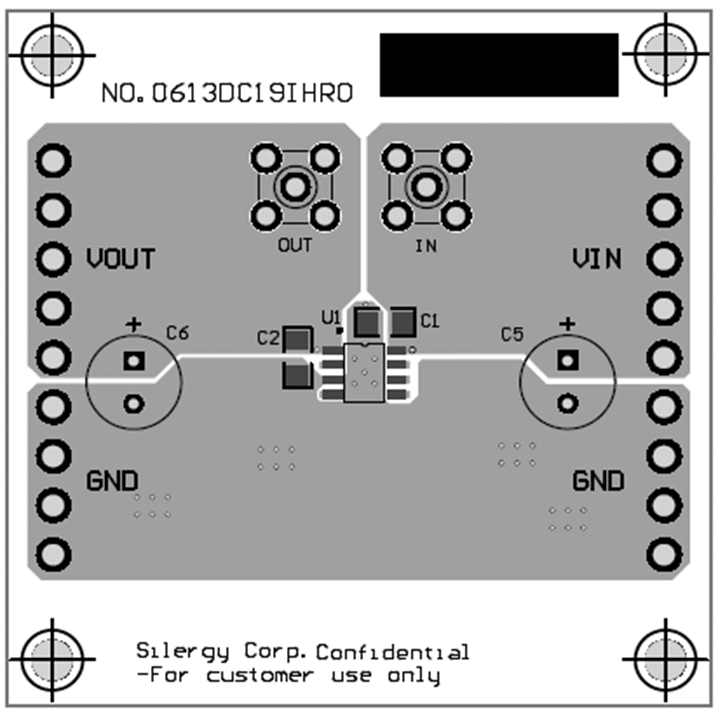

Photo of evaluation board

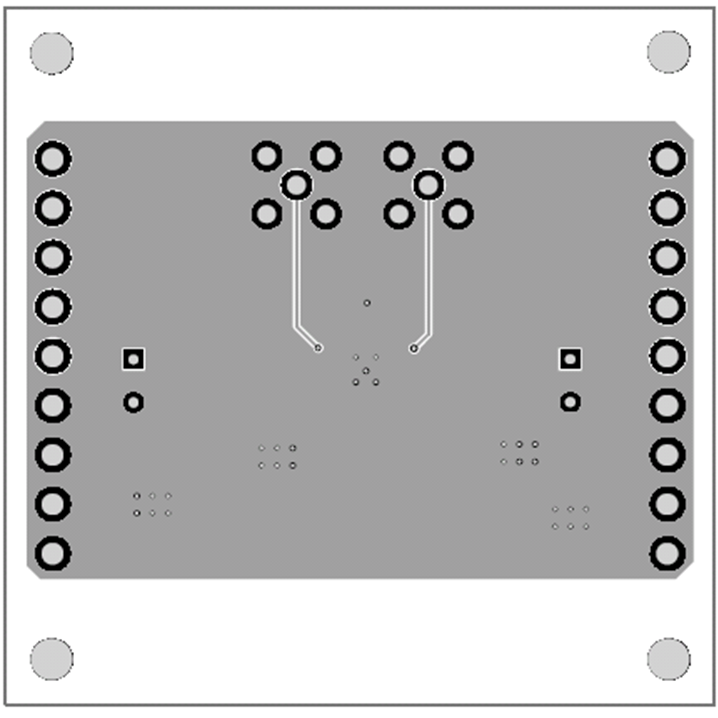

Photo of evaluation board
Photo of evaluation board
The EVB_SY2A27357GFAA is intended for evaluating 4~36V input voltage, 150mA high current regulator.
