SY2A58215FFP (SA52270FFP)

Production
15A H-bridge Motor Driver for Automotive Applications
Datasheet
SY2A58215FFP 15A H-bridge Motor Driver for Automotive Applications Datasheet
    Part numberSY2A58215FFP
    Vin (max) (V)28
    Vin (min) (V)4
    Number of half bridges2
    RDS(on) (HS + LS) (mΩ)60
    Peak output current (A)15
    Sleep current (µA)8
    Integrated FETs(Yes/No)Yes
    Control interfaceHW
    FeaturesUndervoltage lockout, Overvoltage clamp, Cross-conduction protection, Current limitationProtection against loss of ground and loss of VCC, Low power standby mode, Current sense
    Operating temperature range(°C)-40 to 125
    PackageSOP16
    Functional safety category
    • Output Current 15A
    • Undervoltage Lockout
    • Overvoltage Clamp
    • Thermal Shutdown
    • Cross-conduction Protection
    • Current Limitation
    • Protection against Loss of Ground and Loss of VCC
    • Output Short Circuit Protections
    • Low Power Standby Mode
    • PWM Work Mode
    • Current Sense Output
    • Diagnostic Function
    • SOP16 Package
    • AECQ100

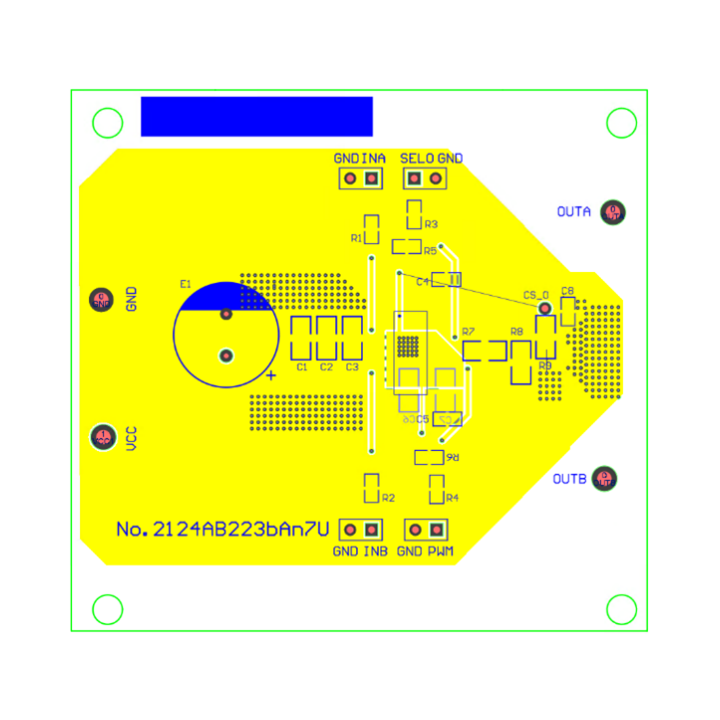

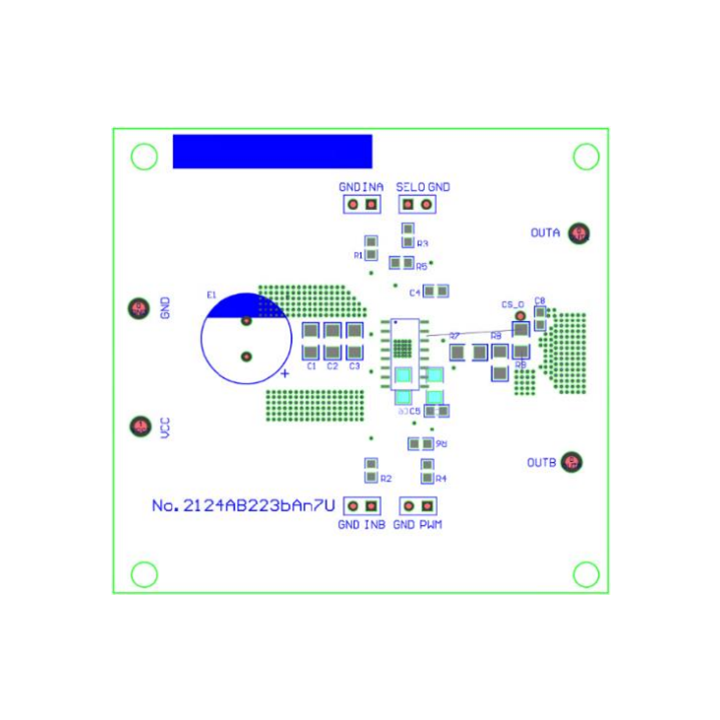

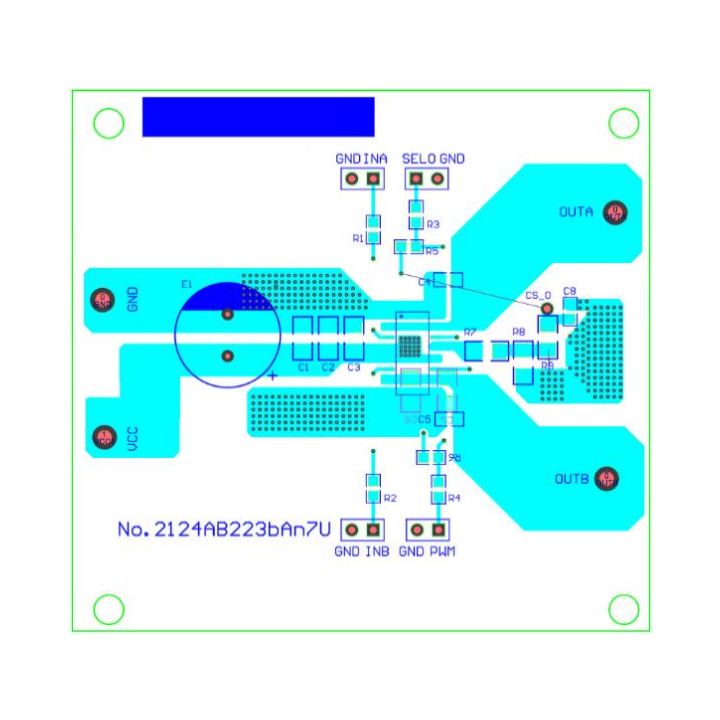

    The SY2A58215 is a 15A H-bridge motor driver for automotive applications. The highly integrated H-bridge driver block consists of two half-bridges with internal logic control and gate drive

    The following protections are included for reliable operation: cross-conduction, current limit, output short circuit and thermal shutdown. An analog current sense output can be used to monitor the current through the power stage.

    The device is packaged in SOP16 package.
