SY2A58638DAD

Production
40V High-side and Low-Side Gate Driver
Datasheet
SY2A58638DAD 40V High-side and Low-Side Gate Driver Datasheet
    Part numberSY2A58638DAD
    Driving FETs typeSi MOS
    Channel(#)
    Input bias voltage (V)4.4
    Output bias voltage (V)14
    Sink/Source current (A)0.75A/1.25A
    FeaturesUVP, Interlock
    PackageDFN3×3-8
    Operating temperature range(°C)-40 to 125
    Functional safety category
    • High Voltage Range up to 40 V
    • 0.75A Source and 1.25A Sink Current
    • VCC Operation Range from 4.4V to 14V
    • CMOS/TTL Compatible
    • Fast Propagation Delay Time
    • DFN3x3-8 Package
    • AEC-Q100 Qualified

    SY2A58638 is a high voltage floating driver for direct driving high side and low side channels. The floating channel can be used to drive 40V N-channel MOSFET in high side configuration. Input logic is compatible with standard CMOS or TTL. Compact DFN3X3-8 package is utilized to minimize the peripheral circuit design and the difficulty of PCB mounting.

    Evaluation Board

    • 1

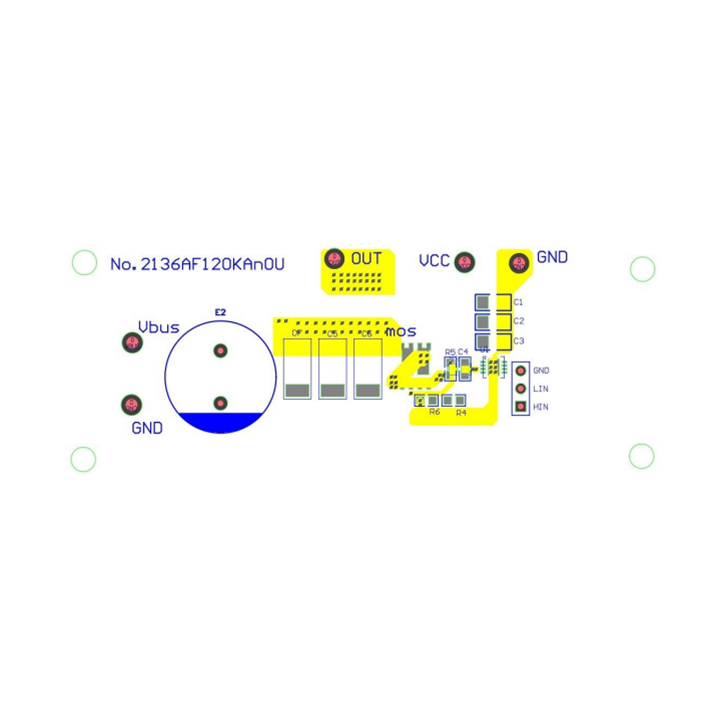

      Photo of evaluation board

    • 2

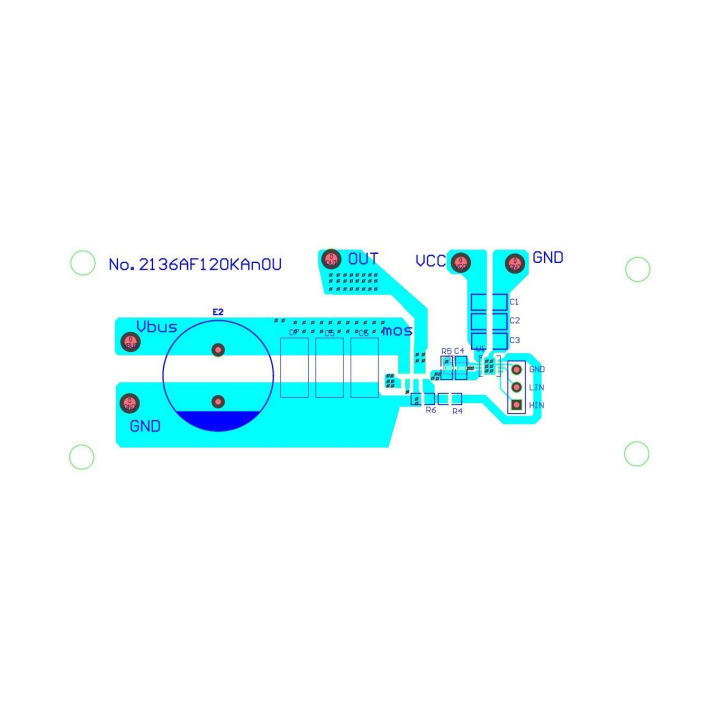

      Photo of evaluation board

    • 3

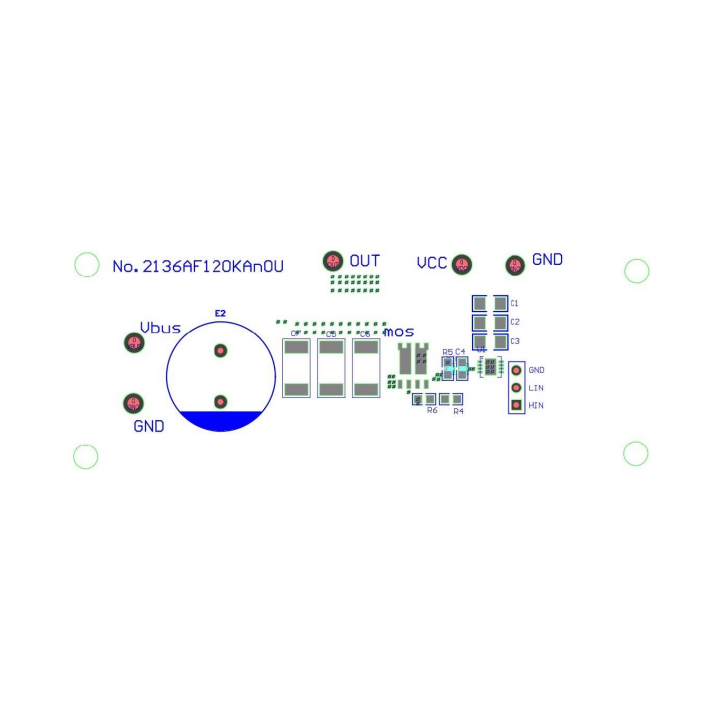

      Photo of evaluation board

    EVB_SY2A58638DAD

    The EVB_SY2A58638DAD is intended for evaluating 40V High-side and Low-Side Gate Driver SY2A58638DAD.

    Technical Documentation
