| Part number | SY2A58720AAT |
|---|---|
| Channel(#) | |
| Vin (min) (V) | 3 |
| Vin (max) (V) | 6 |
| Topology | Push-Pull |
| Switching frequency (min)(kHz) | |
| Switching frequency (max)(kHz) | 394 |
| Vout (min) (V) | |
| Vout2 (min)(V) | |
| Vout (max) (V) | |
| Vout2 (max )(V) | |
| Vref accuracy (±%) | |
| Vout accuracy(±%) | |
| Control mode | |
| Duty cycle (max)(%) | 50 |
| Operation mode | Open loop |
| Iq (typ) (uA) | 1000 |
| Features | Push-pull driver for small transformer,Primary-side current:500mA,Spread spectrum clocking |
| Package | SOT23-5 |
| Operating temperature range(°C) | |
| Functional safety category |
The SY2A58720 is a 500mA, 3.3V~5V, push-pull transformer driver, designed to provide a simple solution for isolated power supplies. The IC contains the carefully designed oscillating and driving circuit to provide precise complementary signals for two N-channel MOSFETs. The IC includes a soft-start feature that prevents high inrush current during power up. Its internal protection features include current limiting, under-voltage lockout and thermal shutdown. The SY2A58720 is available in a small 5-pin SOT-23 package and qualified with AEC-Q100.

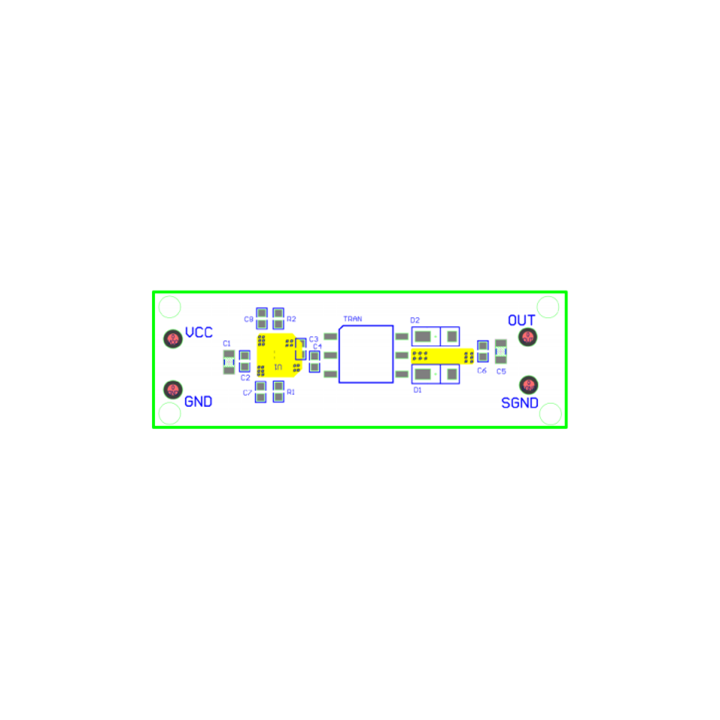

Photo of evaluation board

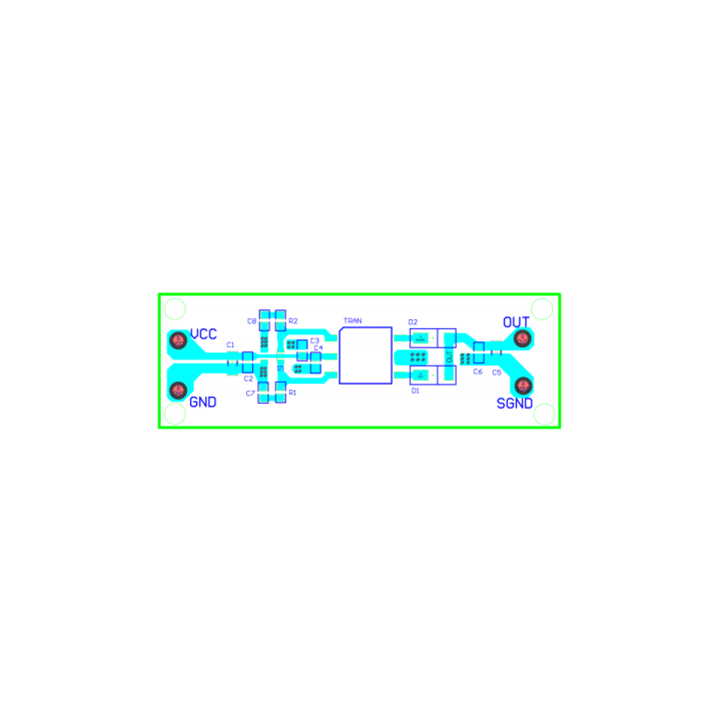

Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
The EVB_SY2A58720AAT is intended for evaluating Transformer Driver for Isolated Power Supplies SY2A58720AAT.
