Secondary Side Synchronous Rectification Converter
![]()
- Parameters
- Features
- Description
| Part number | SY52151FAP |
|---|
| Topology | Flyback |
|---|
| Integrated FETs(Yes/No) | YES |
|---|
| Integrated FETs type | MOS |
|---|
| Drain current (Conti.) (A) | |
|---|
| Breakdown voltage (V) | 40 |
|---|
| Ron (typ) (mΩ) | 13 |
|---|
| ZVS function | NO |
|---|
| Operation mode | QR/DCM |
|---|
| Dual supply channel | NO |
|---|
| Features | Wide Vout,PSR,SSR |
|---|
| Package | SO8 |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- Smart Turn off Technology
- Secondary-side Synchronous Rectifier Optimized for 5V~12V Systems
- Suitable for Discontinuous Mode (DCM), Critical Conduction Mode (CRM)
- Suitable for Primary Side Regulation(PSR), Secondary Side Regulation (SSR)
- RoHS Compliant and Halogen Free
- Compact Package: SO8
The SY52151 is a high-performance synchronous rectifier which contains controller and MOSFET devices. This solution not only directly reduces power dissipation of the rectifier but also indirectly reduces primary-side losses, due to compounding of efficiency gains. The DRAIN pin of SY52151 can support 40V voltage stress.
The SY52151 will achieve the ultra-low power consumption when the circuit operates in no load.
The SY52151 is available in a compact SO8 package.
Evaluation Board

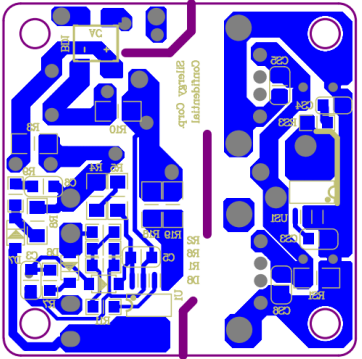

Photo of evaluation board

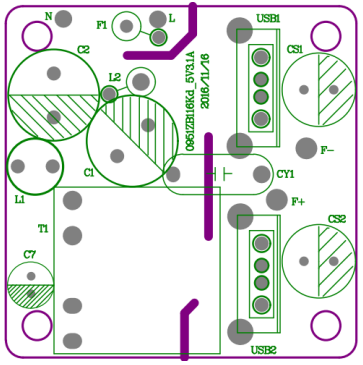

Photo of evaluation board
The EVB_SY52151FAP is intended for evaluating Secondary Side Synchronous Rectification
