Secondary Side Synchronous Rectifier
![]()
- Parameters
- Features
- Description
| Part number | SY52542TVD |
|---|
| Topology | |
|---|
| Integrated FETs(Yes/No) | YES |
|---|
| Integrated FETs type | MOS |
|---|
| Drain current (Conti.) (A) | |
|---|
| Breakdown voltage (V) | 120 |
|---|
| Ron (typ) (mΩ) | 4.3 |
|---|
| ZVS function | |
|---|
| Operation mode | CCM/QR/DCM |
|---|
| Dual supply channel | |
|---|
| Features | |
|---|
| Package | DFN5✖6-8 |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- Suitable for CCM, DCM, and QR Flyback Converters
- DRAIN Falling Slope Rate Detection to Avoid False Turn-On of SR MOSFET by Parasitic Ringing
- DRAIN High Voltage Blanking Time Detection to Enhance System ESD Performance
- Dual Source Power Supply for 3.3V to 21V Output Systems
- Compact Package: PDFN5*6-8
The SY52542 is a high performance synchronous rectification (SR) switcher, ideal for use in flyback converters operating in Continuous Conduction (CCM), Discontinuous Conduction (DCM), and Quasi-Resonant (QR) modes.
The SY52542 features DRAIN voltage falling slope rate detection to prevent false turn-on by parasitic ringing in DCM or QR modes. It also features DRAIN high voltage blanking time detection to enhance system ESD performance and prevent false turn-on of the SR MOSFET by external noise.
Under CCM operation, the SY52542 has an extremely short turn-off delay time while the DRAIN voltage regulation fully utilizes the SR MOSFET conduction time to optimize efficiency under DCM and QR modes.
During light load conditions, the device enters power saving mode to improve light load efficiency.
The SY52542 is available in a compact PDFN5*6-8 package.
Evaluation Board
Photo of evaluation board

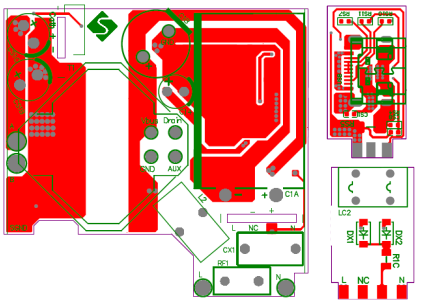

Photo of evaluation board
The EVB_SY52542TVD is intended for evaluating Secondary Side Synchronous Rectification
