Low On-Resistor, Slew-Rate-Controlled Load Switch
- Parameters
- Features
- Description
| Part number | SY6813CPES |
|---|
| Channel(#) | 1 |
|---|
| Vin (min) (V) | 1.2 |
|---|
| Vin (max) (V) | 5.5 |
|---|
| Iout (max) (A) | 3 |
|---|
| Iq (typ) (uA) | 4 |
|---|
| Ron (typ) (mΩ) | 22 |
|---|
| Current limit (A) | |
|---|
| Soft start | Fixed |
|---|
| Output discharge | Auto discharge |
|---|
| Features | |
|---|
| Package | CSP1.5×1-6 |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- 1.2V to 5.5V Input Voltage Range with 6V Absolute Maximum Rating
- Low RDS(ON) for Internal Pass Switch: 22mΩ at VIN=5V
- 3A Continuous Load Current Capability
- ON/OFF Control Input
- Controlled Turn on Delay and Slew Rate: tR=550μs at VIN=3.6V
- Quick Output Discharge
- RoHS Compliant and Halogen Free
- Ultra-Small Package：CSP1.5×1-6
The SY6813C is an ultra-low RDS (ON) load switch. The controlled ramp up speed avoids the inrush current during turn on. The device works under a wide input voltage range from 1.2V to 5.5V.
Evaluation Board

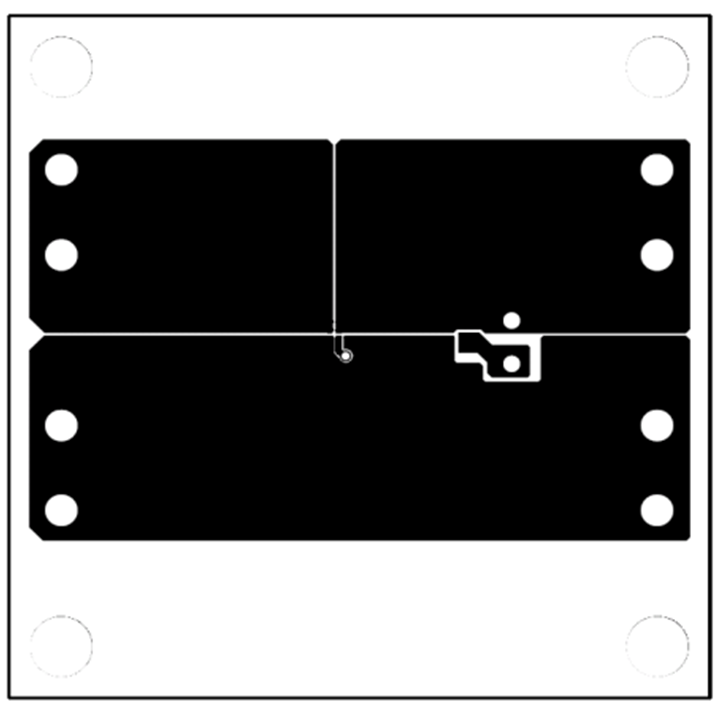

Photo of evaluation board

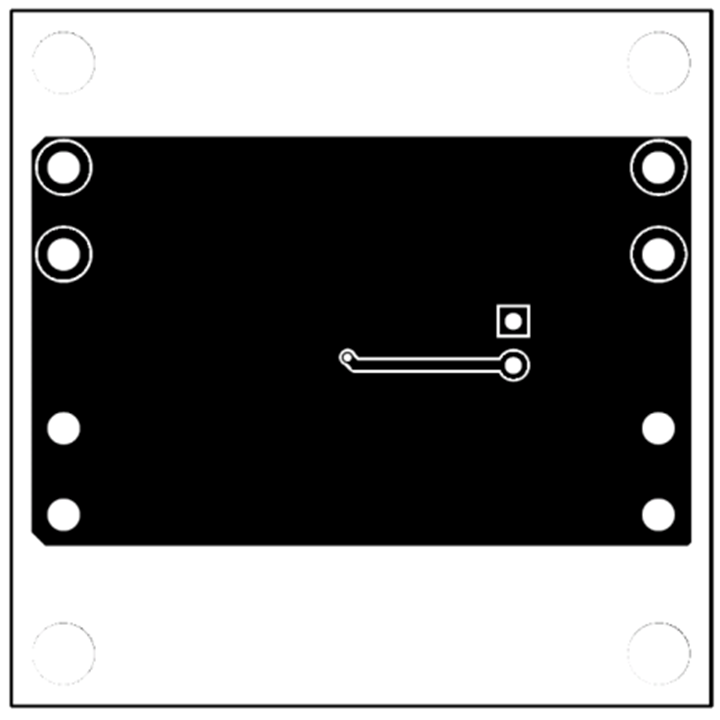

Photo of evaluation board

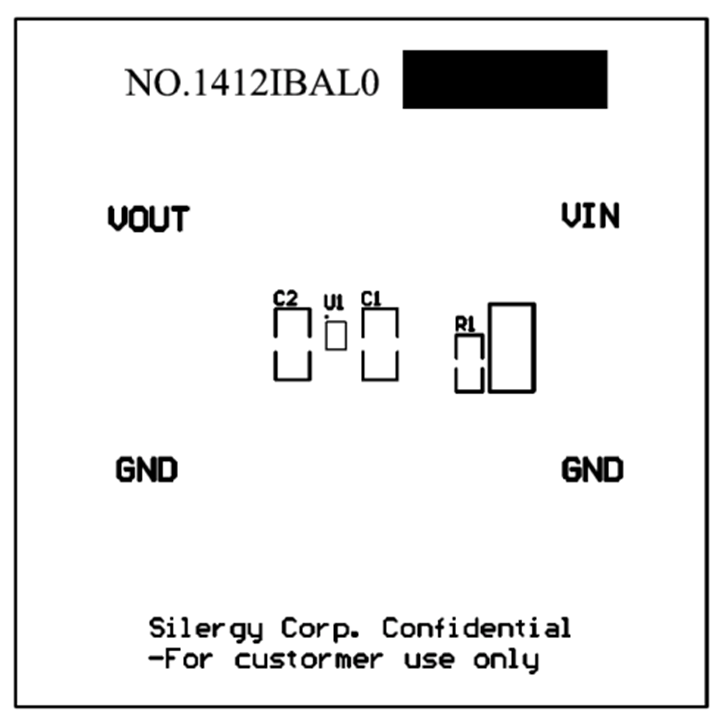

Photo of evaluation board
The EVB_SY6813CPES is intended for evaluating 1.2V to 5.5V input, 3A, low on-resistor, slew-rate-controlled load switch SY6813CPES.
