SY70202TVTS

Production
High Efficiency High Integration PMIC for SSD System
Datasheet
SY70202TVTS High Efficiency High Integration PMIC for SSD System Datasheet
    Part numberSY70202TVTS
    Vin (min) (V)2.8
    Vin (max) (V)3.7
    Channel(#)4 Chs Buck+2 Chs LDO
    ApplicationSSD
    Features4 Chs Buck and 2 Chs LDO, 3.4MHz I2C, OVP/SCP/OTP, Auto PWM/PFM or forced PWM controlled
    PackageCSP2.5×2.45-36
    • Wide Input Voltage Range
     - VIN = 2.8V to 3.7V
    • Channel 1 Synchronous Buck:
     - 4A Maximum Output Current Capability.
     - 1.6V to 3.0V Programmable, 25mV Step.
    • Channel 2 Synchronous Buck:
     - 2A Maximum Output Current Capability.
     - 0.9V to 2.0V Programmable, 10mV Step (or 0.5V to 1.6V Programmable, 10mV Step. Di-vided by OTP).
    • Channel 3 Synchronous Buck:
     - 4A Maximum Output Current Capability.
     - 0.5V to 1.2V Programmable, 10mV Step.
    • Channel 4 Synchronous Buck:
     - 2A Maximum Output Current Capability.
     - 0.9V to 2.0V Programmable, 50mV Step.
     - Buck Mode or LDO Mode Selection.
    • Channel 5 LDO1:
     - 0.4A Maximum Output Current Capability.
     - 1.0V to 2.7V Programmable, 50mV step.
     - Bypass Mode or LDO Mode Selection.
    • Channel 6 LDO2:
     - 0.4A Maximum Output Current Capability.
     - 1.0V to 2.7V Programmable, 50mV Step.
     - Bypass Mode or LDO Mode Selection.
    • I2C Interface up to 3.4MHz
    • Auto PWM/PFM or Forced PWM Controlled by I2C Interface
    • Output Voltage Level of Each Channel Controlled by I2C Interface
    • Reliable Protections:
     - Input/Output Over Voltage Protection(OVP)
     - Short Circuit Protection (SCP)
     - Over Temperature Protection (OTP)
    • Compact Package: CSP2.5×2.45-36
    • MSL Rating: MSL1

    The SY70202T is an SSD PMIC which is composed of 4 synchronous Buck regulators and 2 independent LDOs. The LDO1, and LDO2 can work on load switch mode and the Buck4 works on the LDO mode which are flexible configuration via GPIOx pins.

    The configurable options also include output voltage, startup time, system level sequencing, sleep mode, deep sleep mode, and operating mode etc. Each channel provides a wide range voltage to support DVS (Dynamic Voltage Scaling) by I2C interface. The Buck converters are designed to use very small size inductors.

    The SY70202T is available in a CSP 2.5 × 2.45 - 36 package.

    Evaluation Board

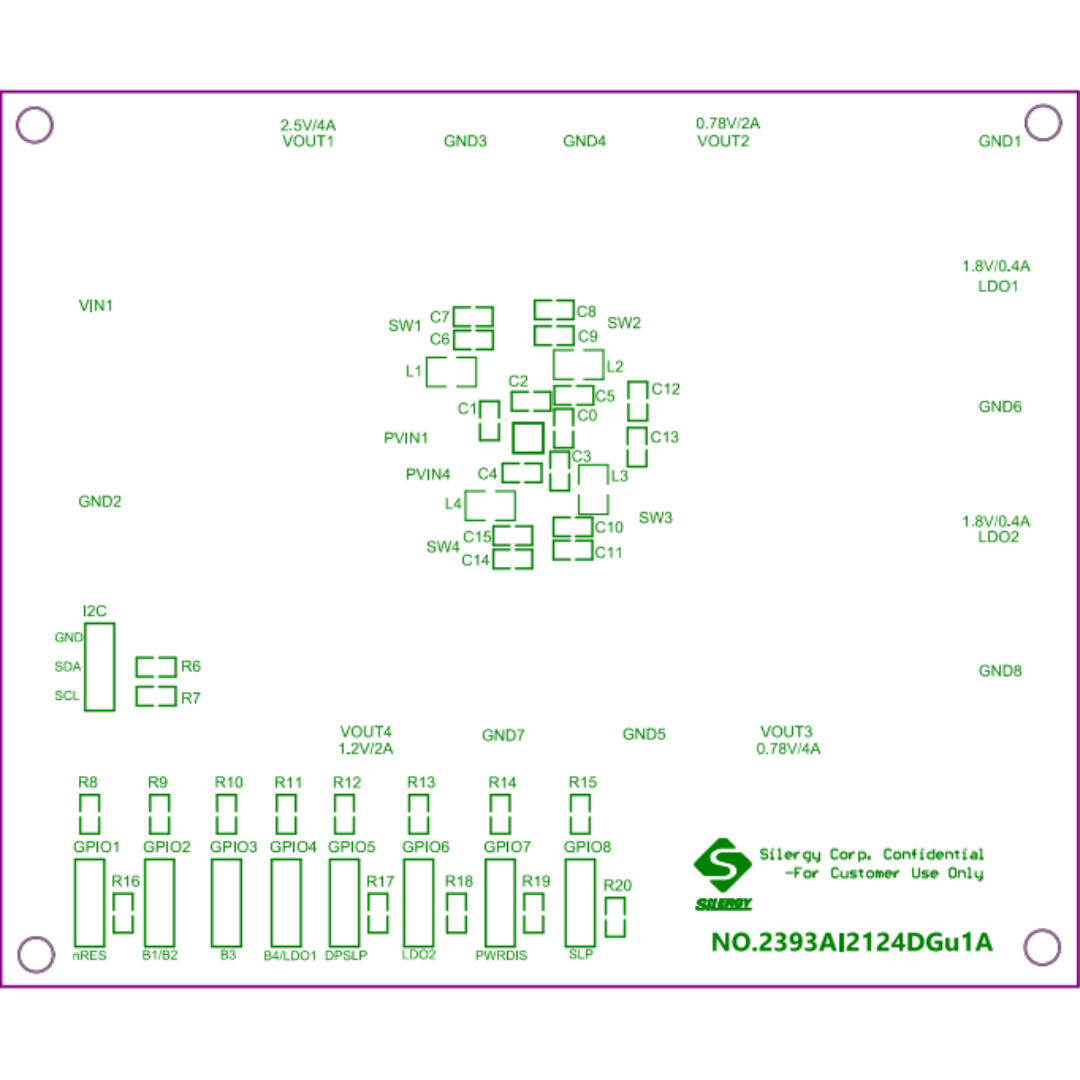

    • SY70202T_1

      Photo of evaluation board

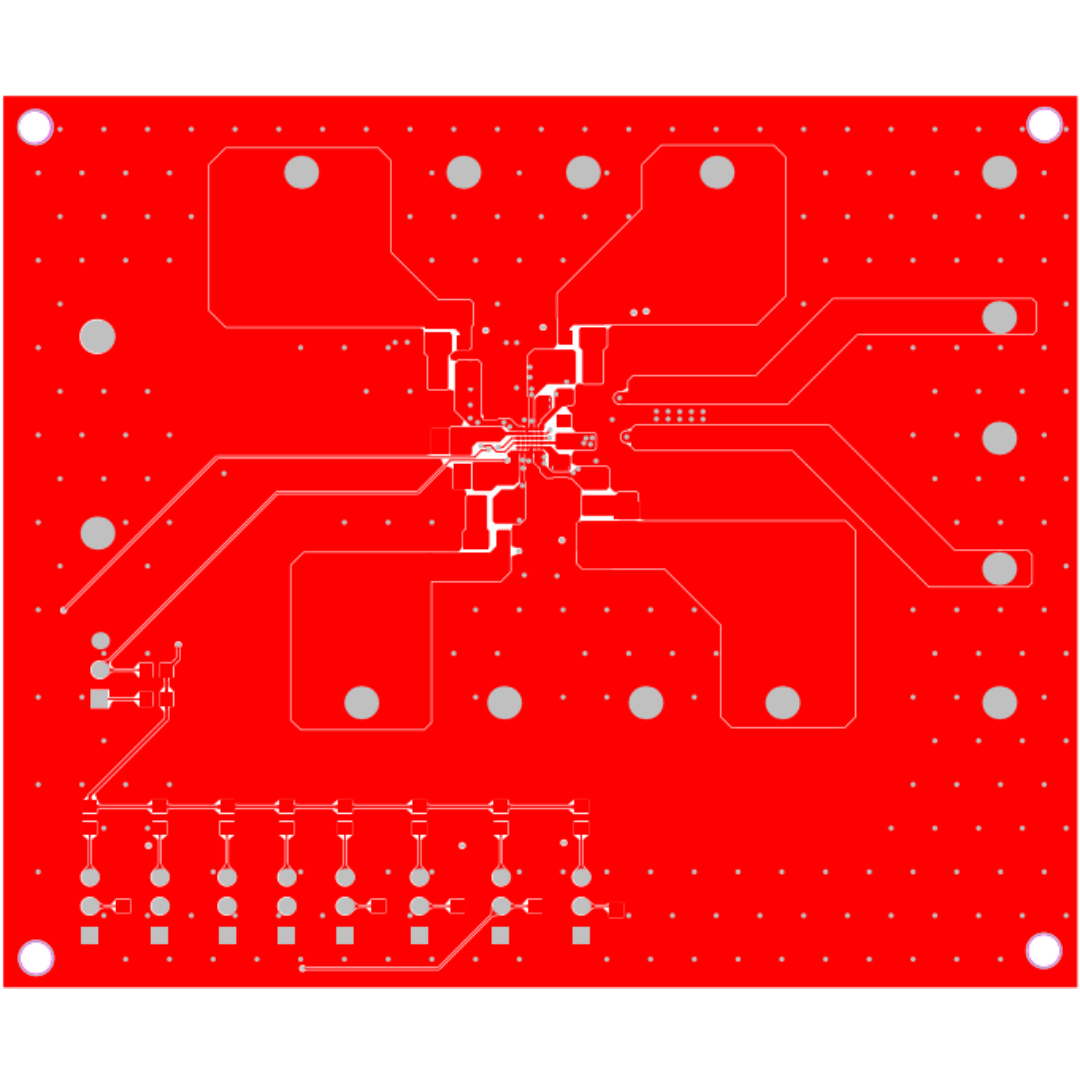

    • SY70202T_2

      Photo of evaluation board

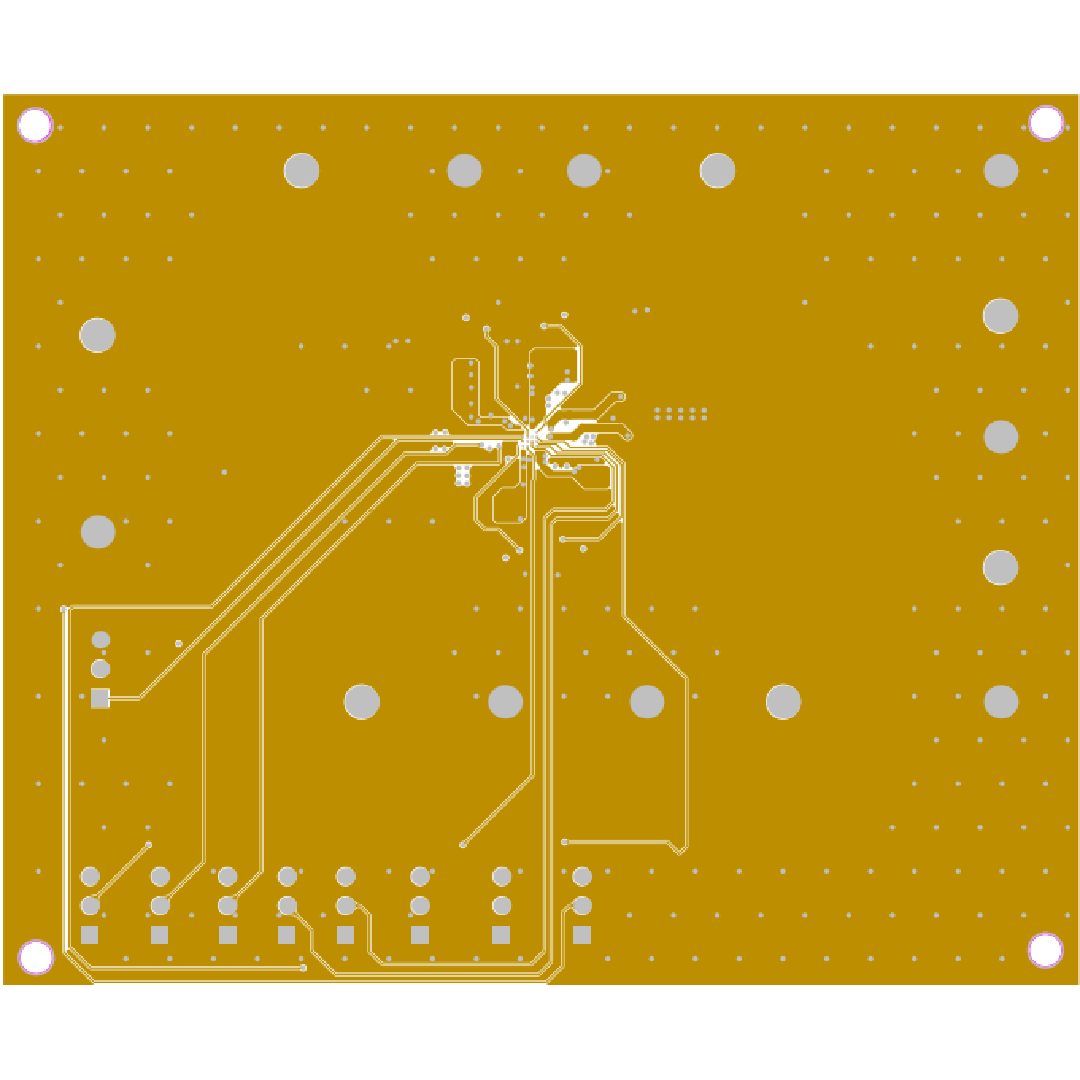

    • SY70202T_3

      Photo of evaluation board

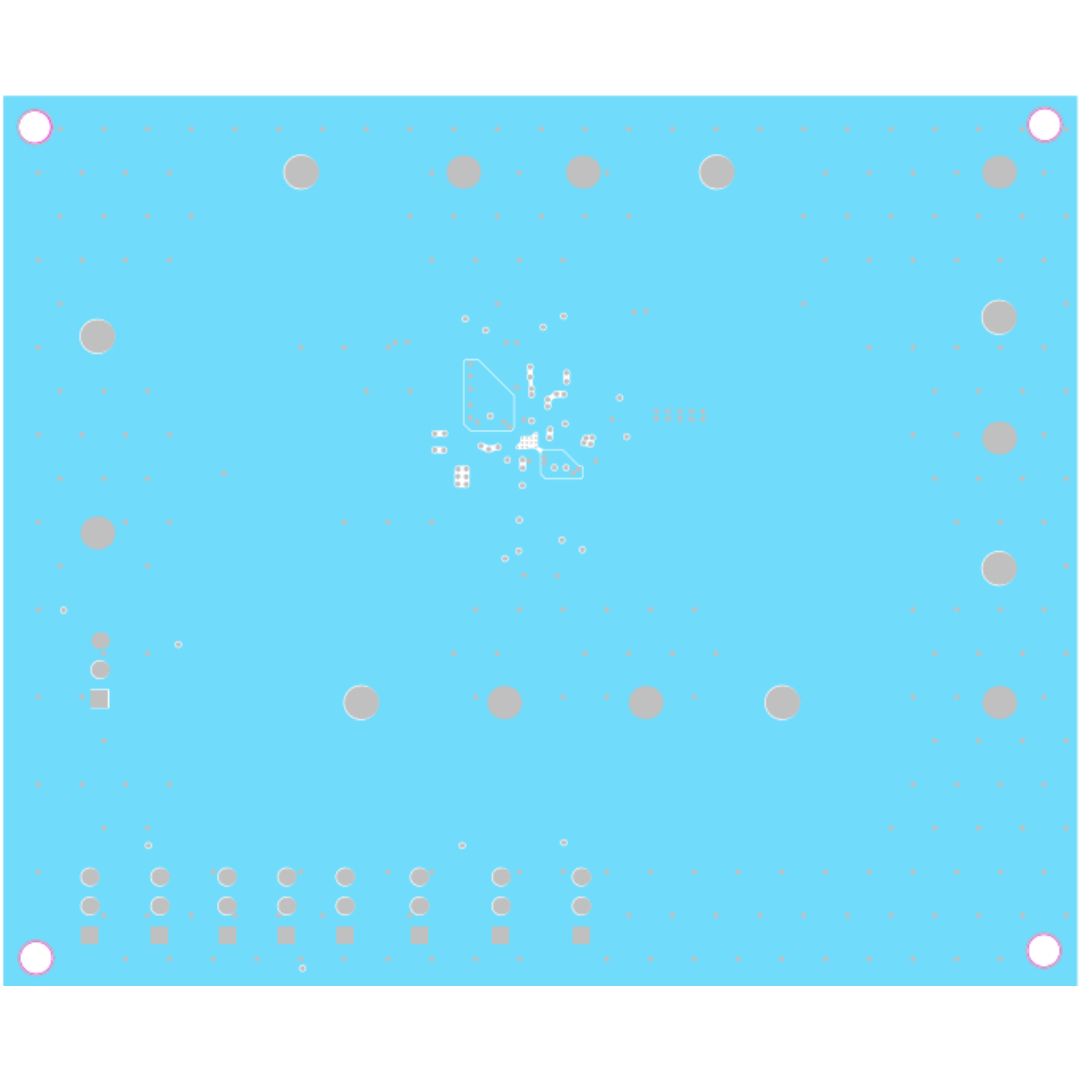

    • SY70202T_4

      Photo of evaluation board

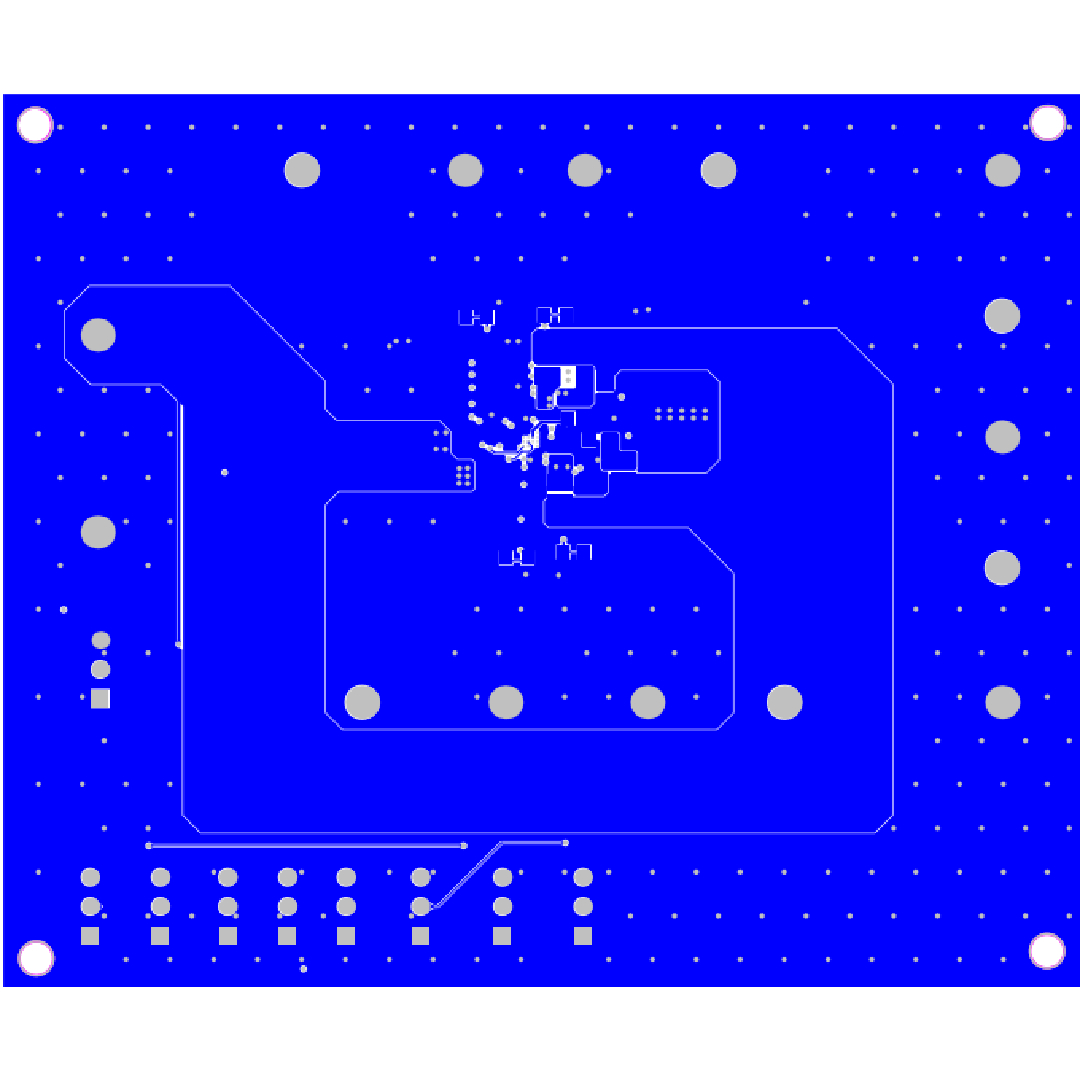

    • SY70202T_5

      Photo of evaluation board

    EVB_SY70202TVTS

    The EVB_SY70202TVTS is intended for evaluating high efficiency high integration PMIC for SSD system.
