SY80082LABT

Production
High Efficiency, 1.5MHz, 2A, 5.5V Input Synchronous Buck Converter
Datasheet
SY80082LABT High Efficiency, 1.5MHz, 2A, 5.5V Input Synchronous Buck Converter Datasheet
    Part numberSY80082LABT
    Channel(#)1
    Vin (min) (V)2.5
    Vin (max) (V)5.5
    Switching frequency (min)(kHz)
    Switching frequency (max)(kHz)1500
    Vout (min) (V)0.6
    Vout (max) (V)5.5
    Iout (max) (A)2
    Vout2 (min)(V)
    Vout2 (max )(V)
    Iout2 (max)(A)
    Vref accuracy (±%)±1.5%
    Vout accuracy(±%)
    Control modeCOT OFF+lpeak
    Duty cycle (max)(%)
    Operation modePFM
    Iq (typ) (uA)50
    FeaturesPower Good Indicator; Output Auto Discharge; Latch off UVP; UVLO
    PackageSOT23-6
    Operating temperature range(°C)-40°C to 125°C
    Functional safety category



    • Low RDS(ON) for Internal MOSFETs: 130mΩ Top, 85mΩ Bottom
    • Wide Input Voltage Range: 2.5V ~ 5.5V
    • Up to 2A Output Current
    • ±1.5% 0.6V Reference
    • PFM Light Load Operation for High Efficiency
    • Internal Soft-Start Limits the Inrush Current
    • 1.5MHz Switching Frequency Minimizes the External Components
    • Constant Off-time and Peak Current Mode Control to Achieve Fast Transient Responses
    • 100% Dropout Operation
    • Power Good Indicator
    • Output Auto Discharge Function
    • Cycle-by-Cycle Peak Current Limit Protection
    • Hic-Cup Mode Output Under Voltage Protection for SY80082ABT
    • Latch off Mode Output Under Voltage Pretection for SY80082FABT, SY80082LABT
    • Auto-Recovery Mode Over Temperature Protection for SY80082ABT
    • Latch off Mode Over Temperature Protection for SY80082FABT, SY80082LABT
    • Input Under Voltage Lockout (UVLO)
    • RoHS-Compliant and Halogen-Free
    • Compact Package: SOT23-6



    The SY80082L high efficiency 1.5MHz synchronous buck converter operates over a wide input voltage range of 2.5V to 5.5V, and can deliver an output current up to 2A. It integrates a top MOSFET and a bottom MOSFET with very low RDS(ON) to minimize conduction loss. The 1.5MHz pseudo-constant switching frequency enables using small external inductor and capacitor values.

    Evaluation Board

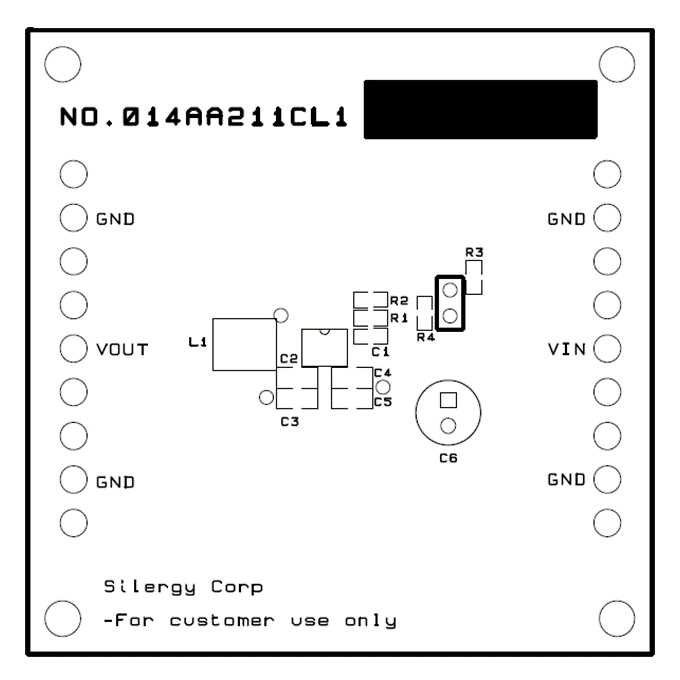

    • 幻灯片4

      Photo of evaluation board

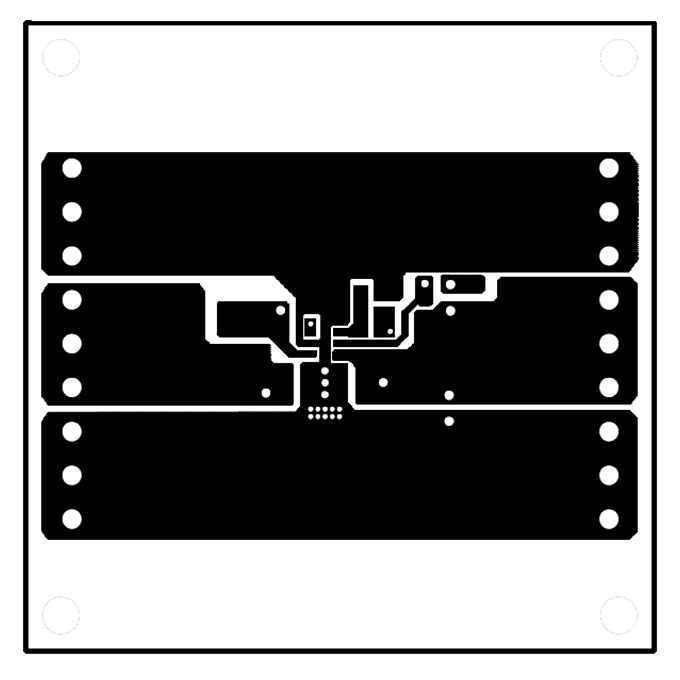

    • 幻灯片5

      Photo of evaluation board

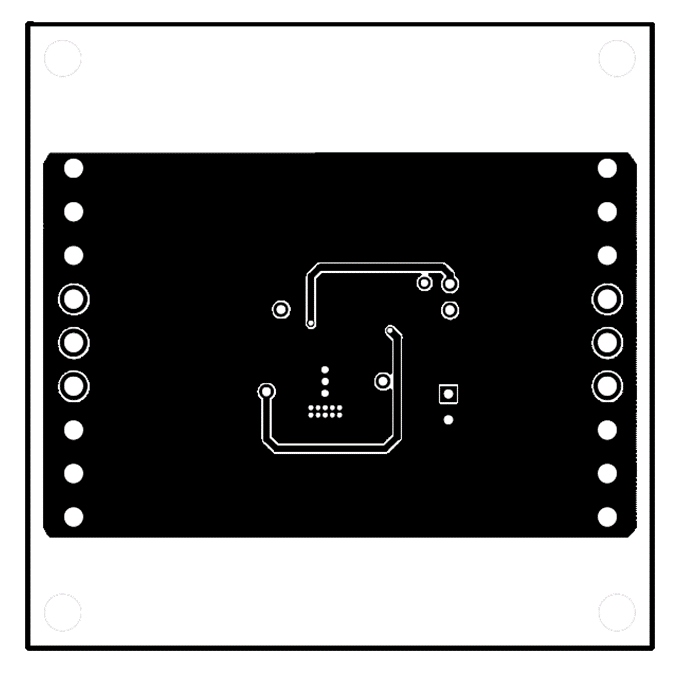

    • 幻灯片6

      Photo of evaluation board

    EVB_SY80082LABT

    EVB_SY80082LABT is intended for evaluating 1.5MHz, 2A, 5.5V, synchronous buck converter.
