SY82852GABT

Production
High Efficiency, 1100kHz, 0.6A, 30V Input, 3.3V Output Synchronous Buck Converter
Datasheet
SY82852GABT High Efficiency, 1100kHz, 0.6A, 30V Input, 3.3V Output Synchronous Buck Converter Datasheet
    Part numberSY82852GABT
    Channel(#)
    Vin (min) (V)4.5
    Vin (max) (V)30
    Switching frequency (min)(kHz)
    Switching frequency (max)(kHz)
    Vout (min) (V)Fixed 3.3
    Vout (max) (V)
    Iout (max) (A)0.2
    Vout2 (min)(V)
    Vout2 (max )(V)
    Iout2 (max)(A)
    Vref accuracy (±%)
    Vout accuracy(±%)±1%
    Control mode
    Duty cycle (max)(%)
    Operation mode
    Iq (typ) (uA)
    FeaturesMSL1, FCCM, Fixed 3.3V Output Voltage, Auto-Recovery Protection, Cycle by Cycle Valley and Peak Current Limit Protection
    PackageSOT23-6
    Operating temperature range(°C)
    Functional safety category

    ·       Low RDS(ON) for Internal MOSFETs: 160mΩ Top, 120mΩ Bottom

    ·       Wide Input Voltage Range: 4.5V ~ 30V

    ·       Up to 0.6A Output Current Capability

    ·       Fixed 3.3V Output Voltage

    ·       Precise EN Threshold

    ·       FCCM Light Load Operation Mode for Small Ripple

    ·       Internal Soft-Start Limits the Inrush Current

    ·       Support Smooth Startup with Pre-Bias Output

    ·       1100kHz Switching Frequency Minimize the External Components

    ·       Constant On-Time and Advanced Ripple-Based Mode Control Strategy

    ·       Cycle-by-Cycle Valley and Peak Current Limit Protection

    ·       Hic-Cup Mode Output Under Voltage Protection

    ·       Auto Recovery Mode Over Temperature Protection

    ·       Input Under Voltage Lockout (UVLO)

    ·       RoHS Compliant and Halogen Free

    ·       Compact Package SOT23-6

    ·       Moisture Sensitivity Level (MSL): 1

    The SY82852G high-efficiency 3.3V fixed output synchronous buck converter operates over a wide input voltage range of 4.5V to 30V, and can deliver an output current up to 0.6A. It integrates a top MOSFET and a bottom MOSFET with very low RDS(ON) to minimize conduction loss. The 1100kHz pseudo-constant switching frequency enables using small external inductor and capacitor values.

    Evaluation Board

    • 幻灯片1

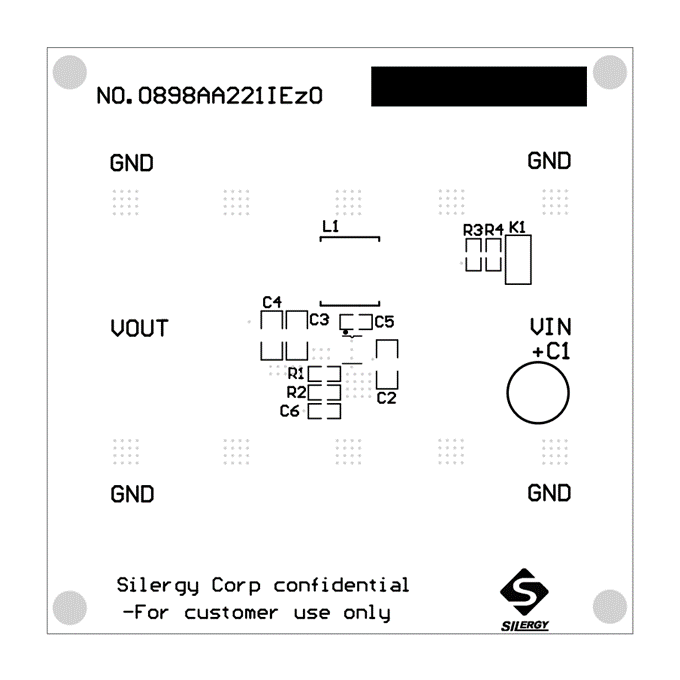

      Photo of evaluation board

    • 幻灯片3

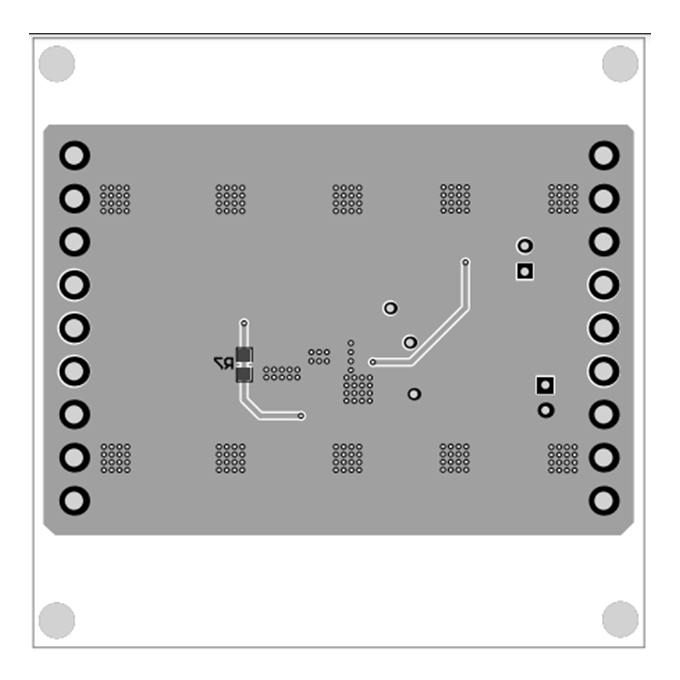

      Photo of evaluation board

    • 幻灯片2

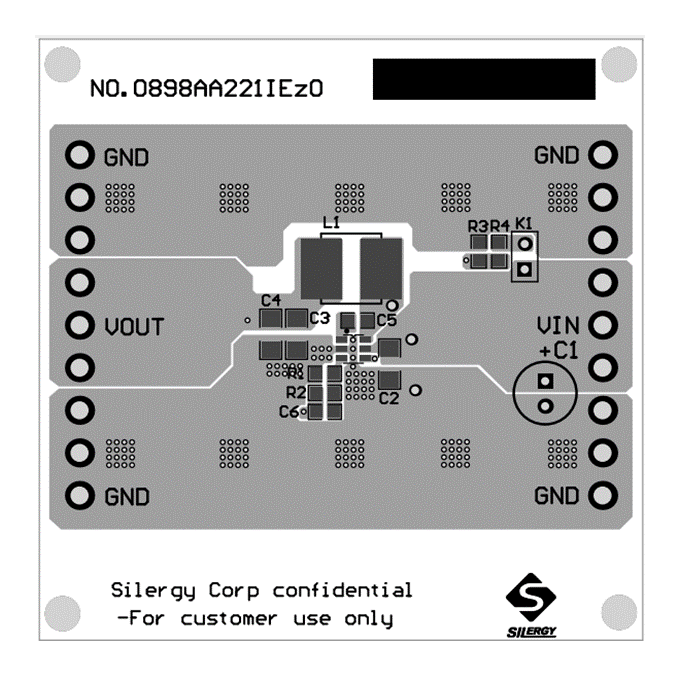

      Photo of evaluation board

    EVB_SY82852GABT

    DB_SY82852GABT_1 is intended for evaluating 0.6A, 30V, 1100kHz synchronous buck converter.
