SY8600PZC

High Efficiency High Integration PMIC for SSD System

SY8600PZC High Efficiency High Integration PMIC for SSD System Datasheet

Parameters
Features
Description

Part number	SY8600PZC
Vin (min) (V)	2.8
Vin (max) (V)	5.5
Channel(#)	5 Chs Buck+2 Chs LDO
Application	SSD
Features	5 Chs Buck(2Chs can work LSW) and 2 Chs LDO, 3.4MHz I2C, Hardware sleep control, Reset output, Auto PFM/FCCM control, OVP/OCP/SCP/OTP
Package	CSP3.23×3.23-52

• 2.8V to 5.5V Input Voltage Range

• Channel 1 Synchronous Buck:

-- Low RDS(ON) for Internal Switches (PFET/NFET): 150/150mΩ

-- 0.6A Maximum Output Current Capability

• Channel 2 LDO1:

-- 0.3A Output Current Capability

-- Default Output Voltage VOUT2=1.8V

• Channel 3 Synchronous Buck:

-- Low RDS(ON) for Internal Switches (PFET/NFET): 45/20mΩ

-- 3.0A Maximum Output Current Capability

-- Default Output Voltage VOUT3=0.91V

-- 0.7V to 1.1V Programmable, 10mV Step

• Channel 4 Synchronous Buck:

-- Low RDS(ON) for Internal Switches (PFET/NFET): 35/45mΩ

-- 4.0A Maximum Output Current Capability

-- 2.7V to 3.6V Programmable, 100mV Step

• Channel 5 Synchronous Buck:

-- Low RDS(ON) for Internal Switches (PFET/NFET): 60/40mΩ

-- 2.0A Output Current Capability

• Channel 6 LDO2:

-- 0.3A Output Current Capability

• Channel 7 Synchronous Buck:

-- Low RDS(ON) for Internal Switches (PFET/NFET): 60/40mΩ

-- 2.0A Output Current Capability

• Reset Input/Output Function

• 2.0MHz Switching Frequency for Buck Converters

• Auto PWM/PFM Mode or Forced PWM Mode Controlled by I2C Interface

• I2C Interface Up to 3.4MHz

• Output Voltage Level of CH3/CH4 Controlled by

• I2C Interface with DVS Function

• 2 Kinds of Power On Reset Detection Voltage Level Selected by PORSEL Pin

• Dedicated Sleep Mode Controlled by GPIO1/GPIO2, PMRST

• Reliable Protections:

-- Over Voltage Protection (OVP)

-- Over Current Protection (OCP)

-- Short Circuit Protection (SCP)

-- Over Temperature Protection (OTP)

• Compact Package: CSP3.23×3.23-52

The SY8600 is a high efficiency PMIC with 5-channel synchronous Buck converters and 2-channel LDOs. It is a single chip total power solution for SSD system.

The output voltage of channel3 and channel4 are controlled by the processor using the I2C interface. It therefore supports DVS (dynamic voltage scaling) function. The SY8600 can generate an open-drain reset output for the processor with certain delay time.

The SY8600 operates over a wide input voltage range from 2.8V to 5.5V. It is available in CSP3.23×3.23-52 package.

Evaluation Board

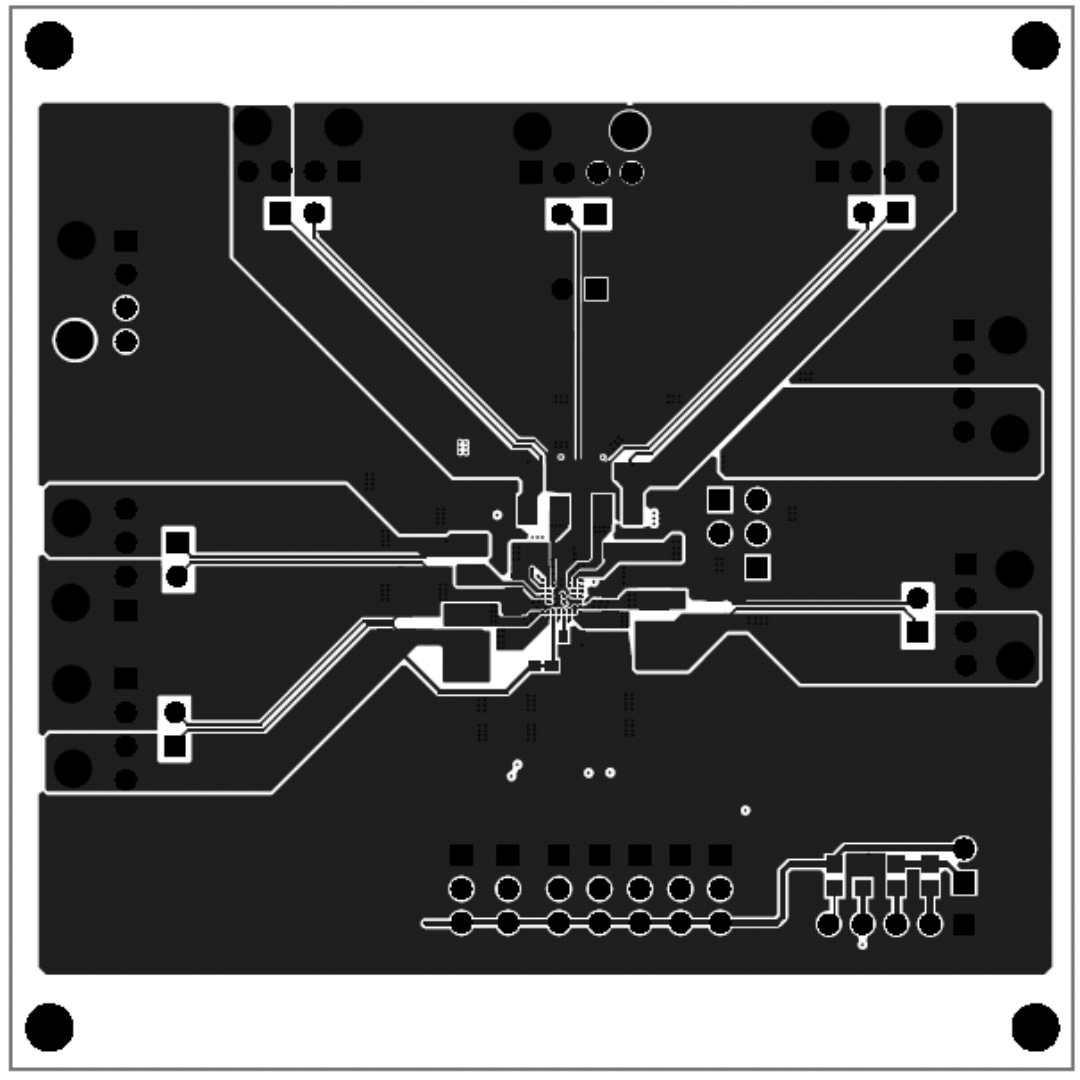

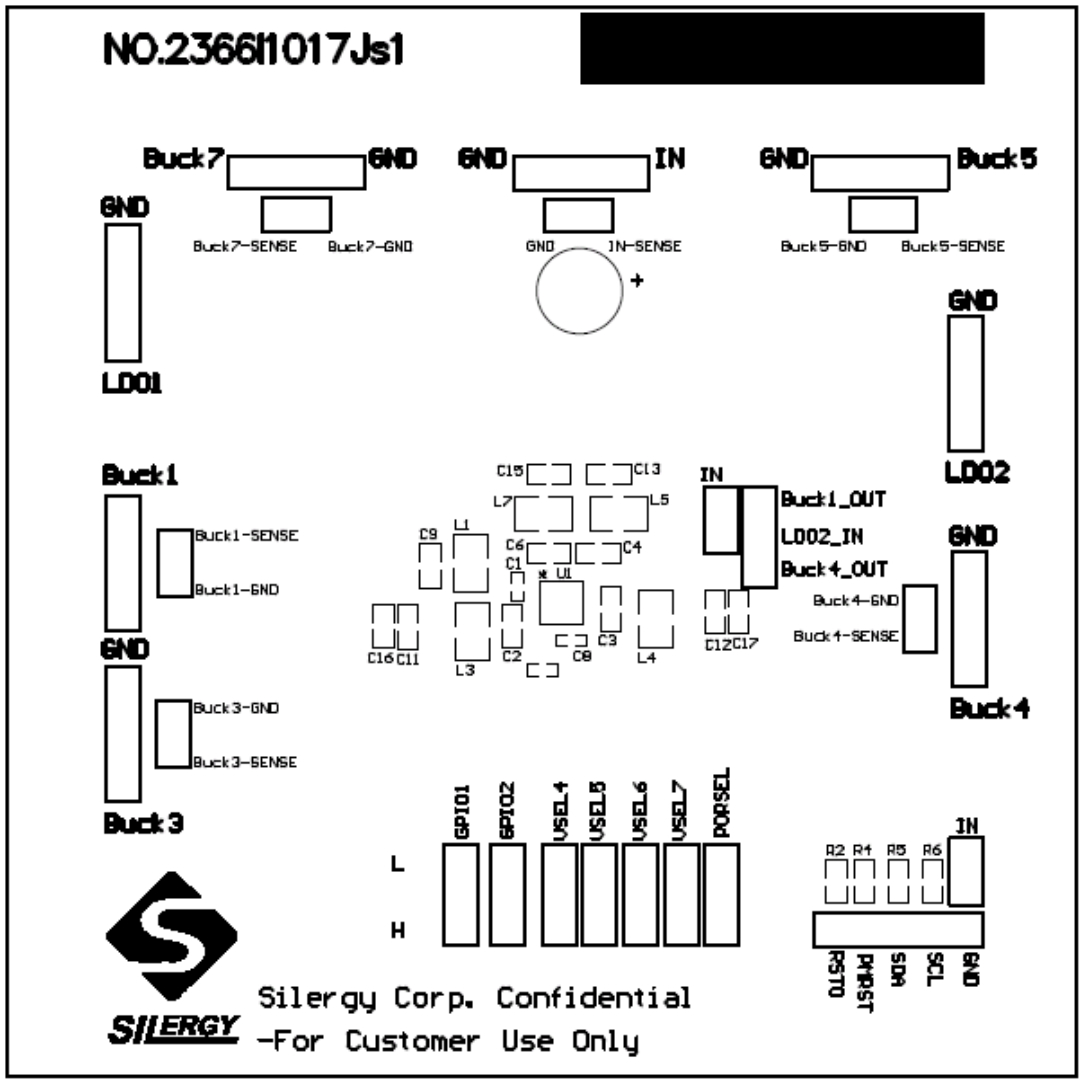

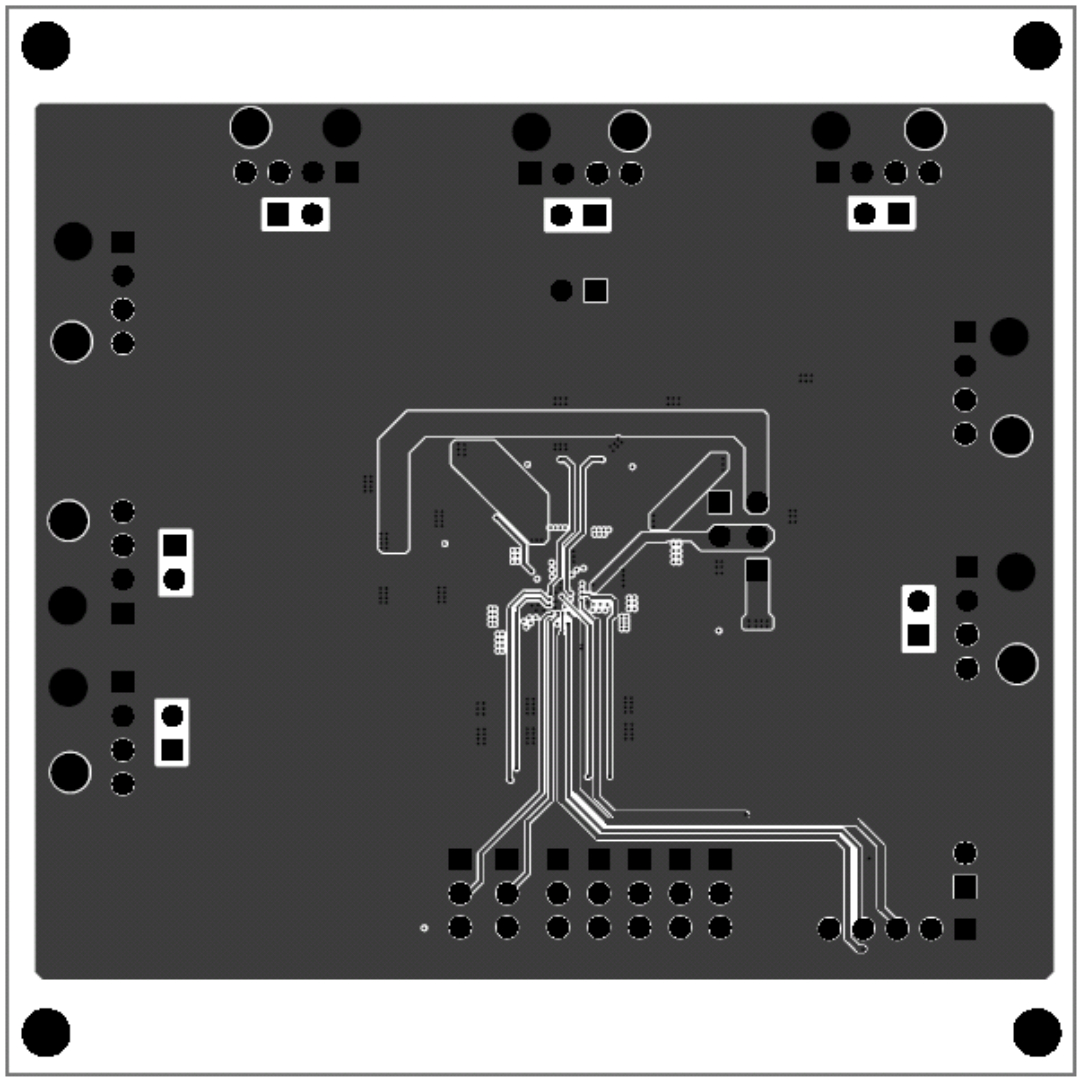

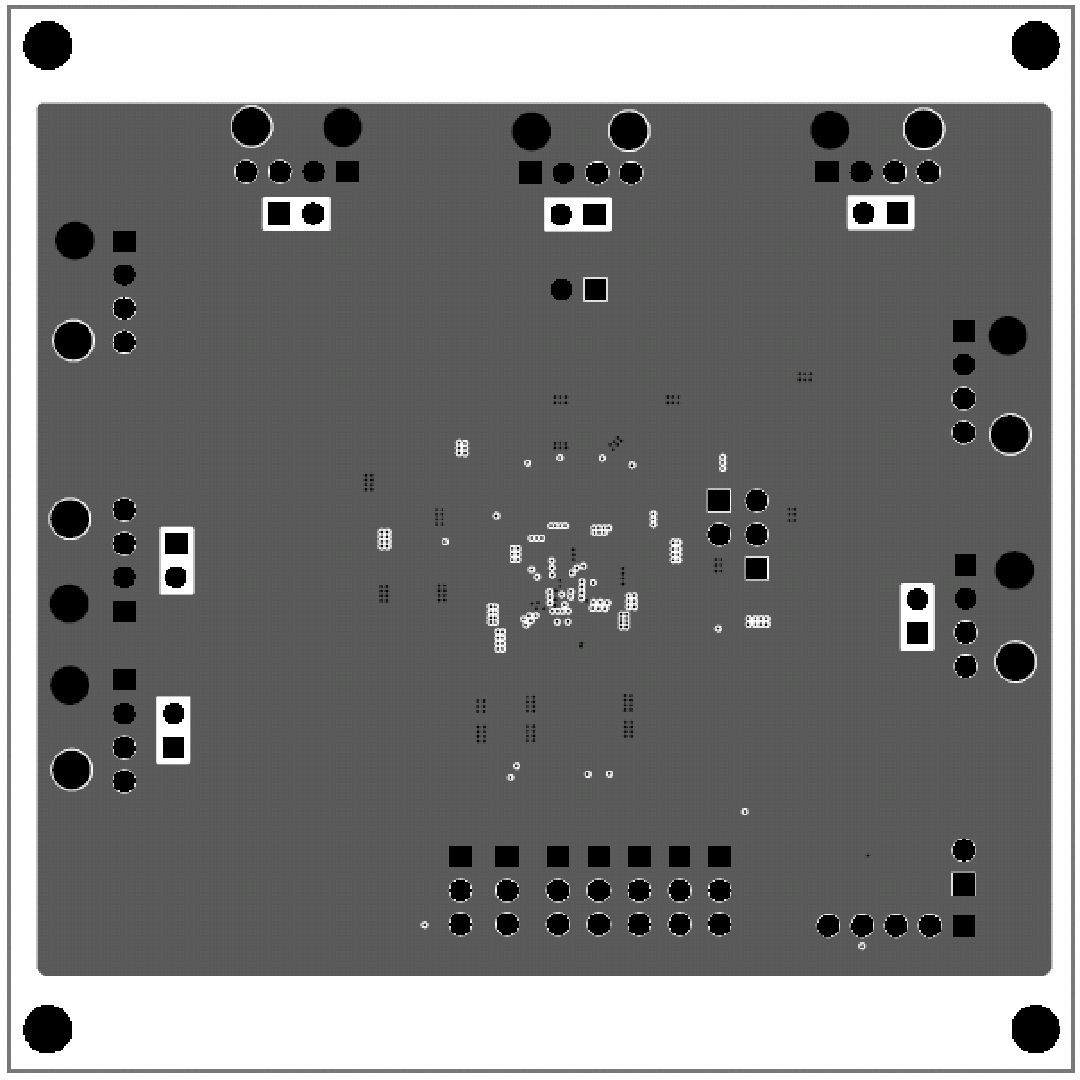

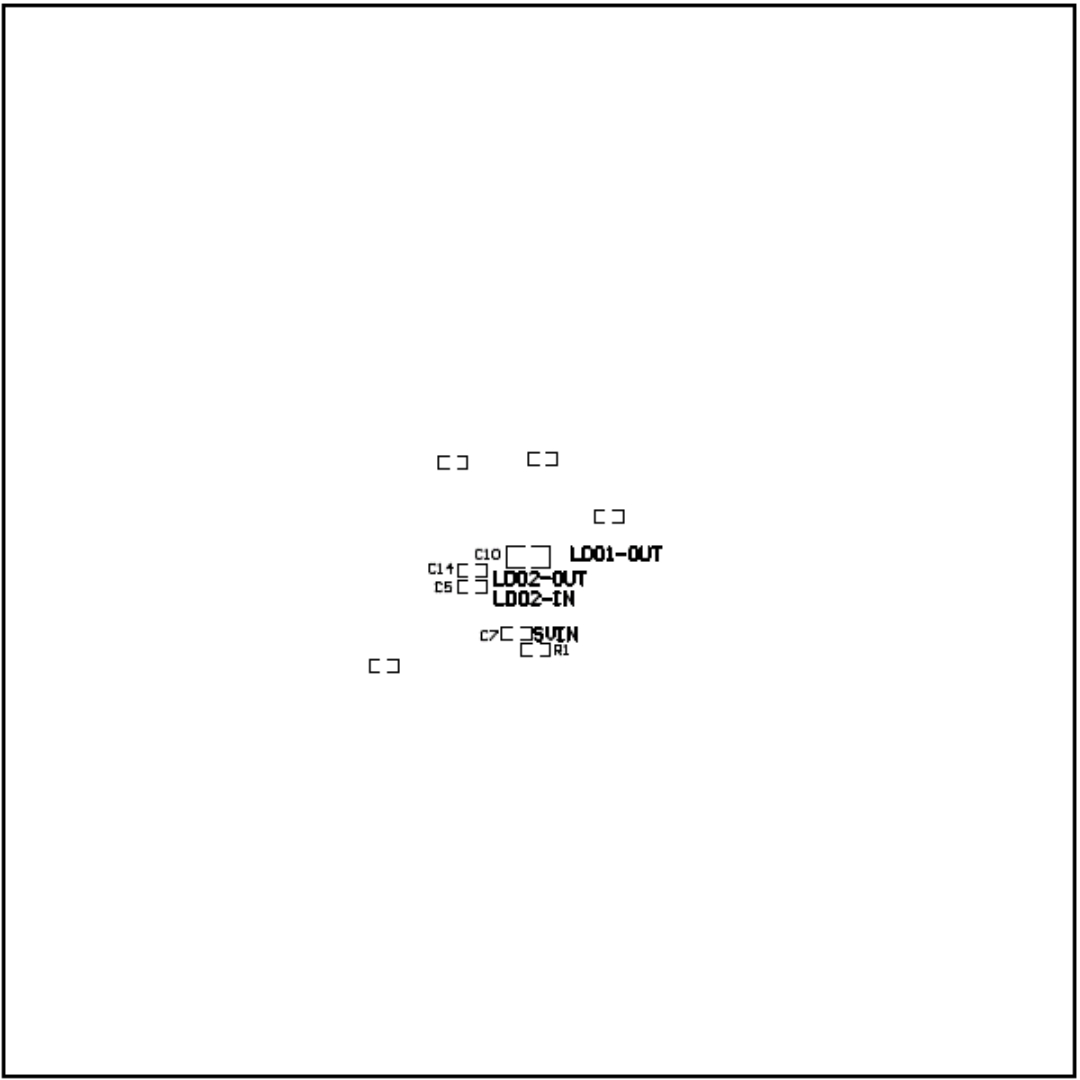

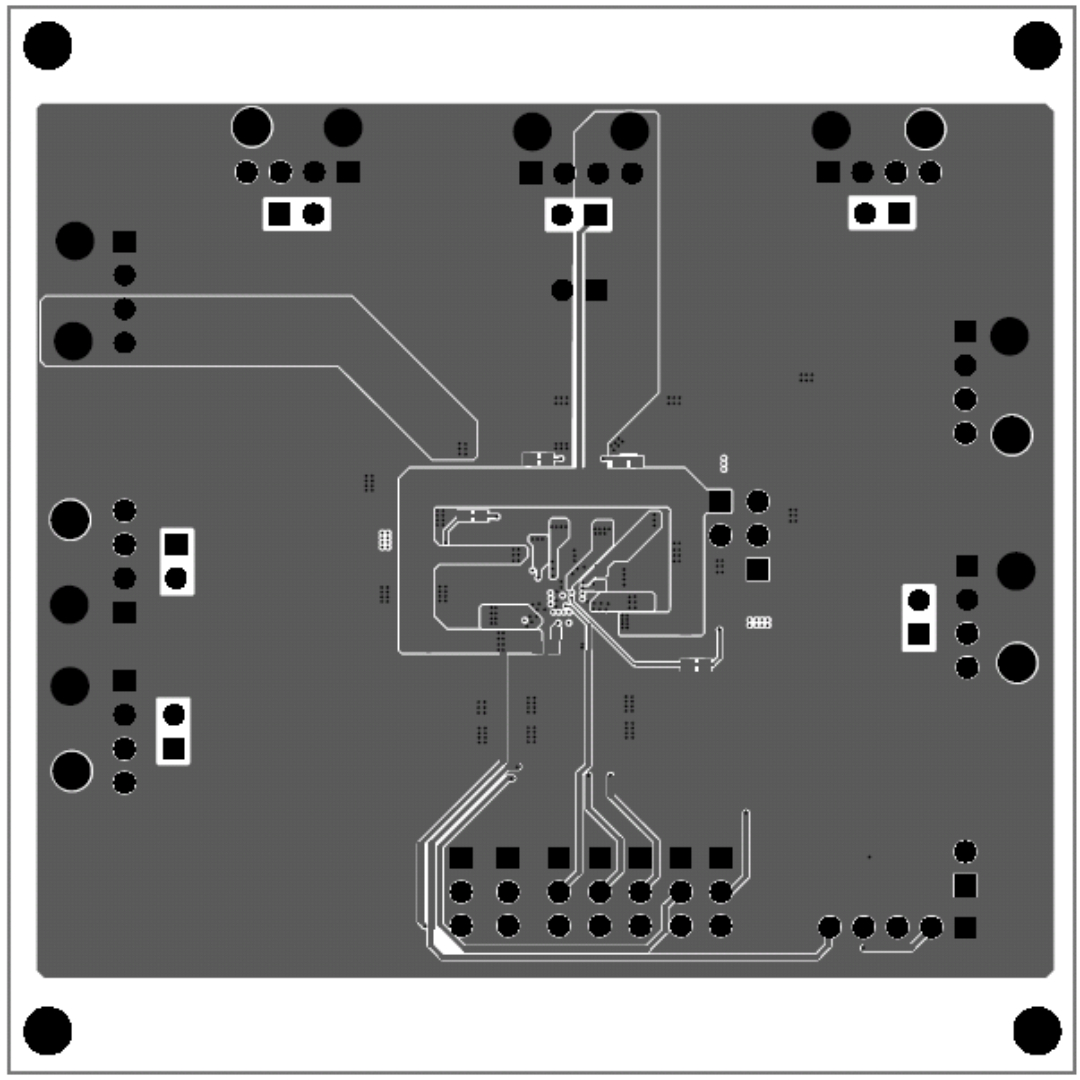

Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board
Photo of evaluation board

EVB_SY8600PZC

EVB File

The SY8600PZC is intended for evaluating high efficiency high integration PMIC for SSD system.
