SY8631BQCC

Production
6-channel PMIC with 2 Step Down Buck Regulators,3 Low Dropout LDO and 1 Channel RESET Output
Datasheet
SY8631BQCC 6-channel PMIC with 2 Step Down Buck Regulators,3 Low Dropout LDO and 1 Channel RESET Output Datasheet
    Part numberSY8631BQCC
    Vin (min) (V)2.5
    Vin (max) (V)5.5
    Channel(#)5
    ApplicationPortable media players
    Features2ch synchronous buck and 3ch LDO, One RESET output and forced PWM mode seletion
    PackageQFN4x4-24
    • Input Voltage Range: 2.5V to 5.5V
    • Input Voltage Range for LDOs : 1.8V to 5.5V
    • 2 Channels DCDC Regulators and 3 Channels LDO Regulators
    • 1A Output Current Capability for Each DC/DC Regulator
    • DC/DC Regulators Output Voltage Externally Adjustable
    • 2.2MHz Switching Frequency
    • Power Save Mode at Light Load Condition for Higher Efficiency
    • Forced-PWM Mode Selection by Mode Pin
    • Total 38uA Quiescent Current for DC/DC Regulators
    • 400mA Output Current Capability for LDO1
    • 200mA Output Current Capability for LDO2 and LDO3
    • LDO1, LDO2 Output Voltage Externally Adjustable
    • Fixed 1.5V Output Voltage for LDO3
    • Hard Short Protection, Thermal Shut Down Protection
    • RoHS Compliant and Halogen Free
    • Compact Package: QFN4x4-24

    SY8631B is integrated Power Management IC for applications powered by one Li-ion or Li-Polymer cell which require multiple power rails. It integrates 2 step-down Buck regulators, 3 low dropout LDOs and 1 channel  output. The highly efficient, 2.2MHz step-down Buck regulators will target at providing the core voltage and I/O voltage in a processor based system. Each LDO operates with an input voltage range between 1.8V and 5.5V allowing them to be supplied from one of the step-down converters or directly from the Li-ion battery.

    SY8631B operates over a wide input voltage range from 2.5V to 5.5V to optimize the device for 5V, 3.3V or Li-ion battery applications.



    Evaluation Board

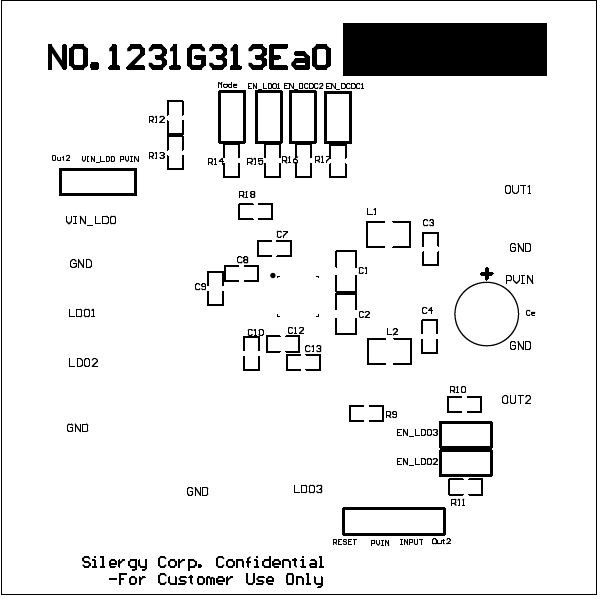

    • SY8631B-1

      Photo of evaluation board

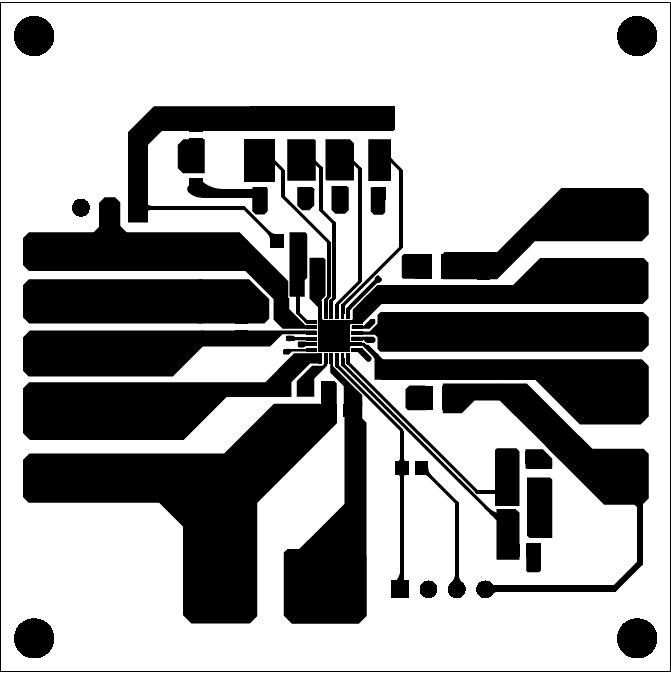

    • SY8631B-2

      Photo of evaluation board

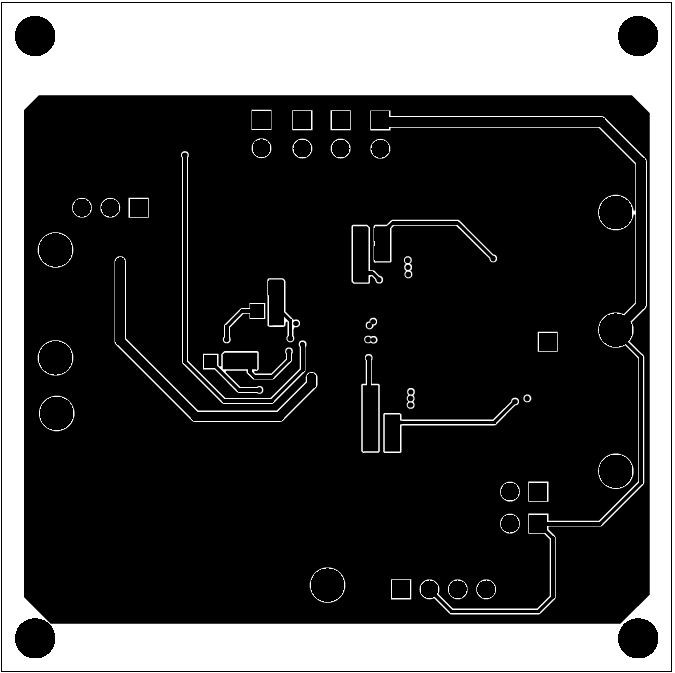

    • SY8631B-3

      Photo of evaluation board

    EVB_SY8631BQCC

    The EVB_SY8631BQCC is used to evaluate integrated Power Management IC for applications powered by one Li-ion or Li-Polymer cell which require multiple power rails.
