5.5V, High Efficiency, Synchronous Boost Regulator with Bypass Mode
![]()
- Parameters
- Features
- Description
| Part number | SY87004AWUS |
|---|
| Vin (min) (V) | 1.9 |
|---|
| Vin (max) (V) | 5.5 |
|---|
| Current limit (A) | |
|---|
| Switching frequency (min)(kHz) | 2200 |
|---|
| Switching frequency (max)(kHz) | 2200 |
|---|
| Vout (min) (V) | 2.85 |
|---|
| Vout (max) (V) | 5.5 |
|---|
| Vref accuracy (±%) | |
|---|
| Vout accuracy(±%) | 1.5 |
|---|
| Duty cycle (max)(%) | |
|---|
| Iq (typ) (uA) | 3 |
|---|
| Features | Bypass mode,I2C,PFM/FCCM |
|---|
| Package | CSP1.65×1.65-16 |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- Input Voltage Range: 1.9V to 5.5V
- Program Output Range: 2.85V to 5.5V
- Maximum Bypass Continuous Load Current :6A
- Up to 95% Efficiency
- Supports 0.9V signaling for SCL/SDA/EN Pins
- Programmable Valley Inductor Current Limit and Output Voltage
- I2C Configurable Auto Bypass Operation And Forced Bypass Mode
- I2C configurable FCCM and PFM Modes
- Low Operating Quiescent Current
- Shutdown Current 0.1 µA (Typ.)
- Load Disconnect During Shutdown
- Compact Package CSP1.65×1.65-16
- Moisture Sensitivity Level (MSL): 1
The SY87004A is a high efficiency, synchronous boost converter with bypass mode. The device is designed to operate in bypass mode by providing a low resistance path between the output and input when the input voltage is higher than the target voltage. It transition automatically into boost mode when the input voltage is lower than the desired output.
The SY87004A operates over a wide input voltage range from 1.9V to 5.5V and supports up to 6A maximum load current in bypass mode. Overtemperature, overcurrent, as well as output undervoltage and input overvoltage protections are provided reliable operation.
The device operation and parameters can be configured using the I2C bus.
Evaluation Board

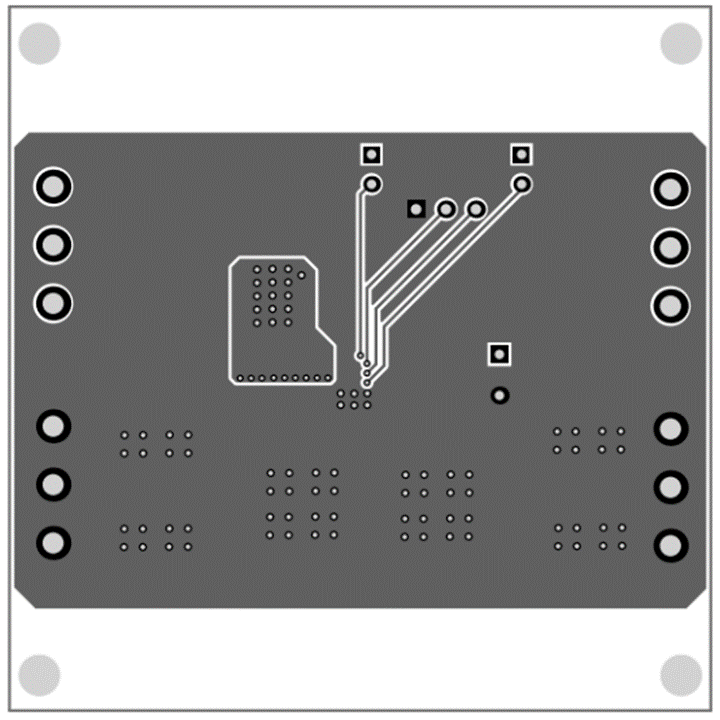

Photo of evaluation board

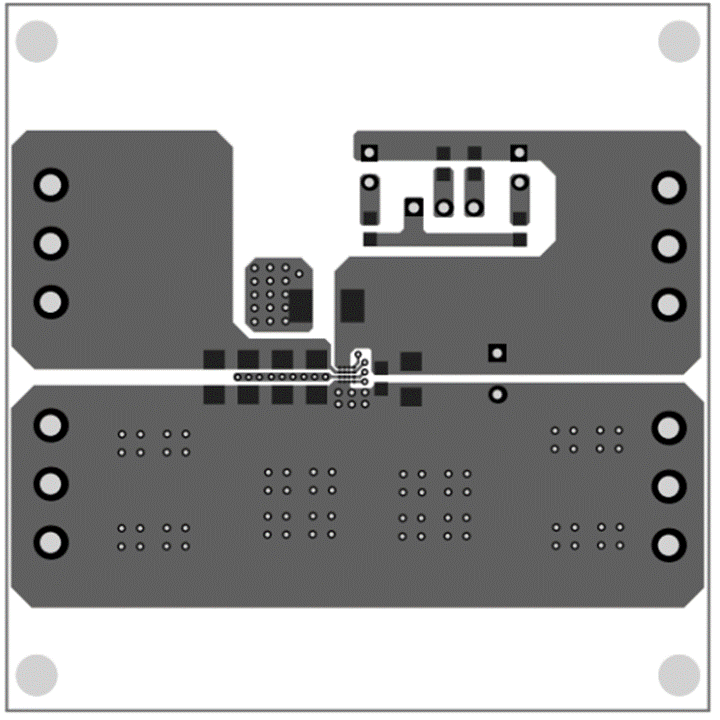

Photo of evaluation board

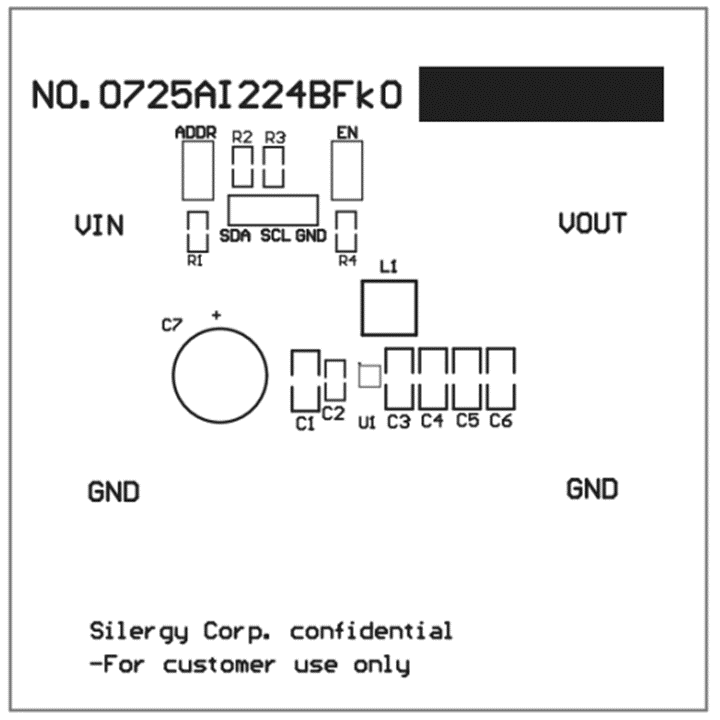

Photo of evaluation board
The EVB_SY87004AWUS is intended for evaluating the 5.5V, high efficiency, synchronous, adaptive constant on time control, step-up boost regulator SY87004AWUS.
