SY8970UBC

Production
High Efficiency High Integration PMIC for SSD System
Datasheet
SY8970UBC High Efficiency High Integration PMIC for SSD System Datasheet
    Part numberSY8970UBC
    Vin (min) (V)2.4
    Vin (max) (V)5.5
    Channel(#)LSW+3 Buck+LDO
    ApplicationSSD
    Features3.4Mhz I2C, OVP/SCP/OTP, Auto PWM/PFM or FPWM controlle
    PackageCSP3.2×4.2-48
    • 2.4V to 5.5V Input Voltage Range
    • Channel 1 Load Switch:
     - 4.0A Output Current Capability.
     - 25mohm RDS(ON)
     - 0.5ms Soft-start Time
    • Channel 2 Synchronous Buck:
     - 2.5A Maximum Output Current Capability.
     - 0.8V to 2V Programmable, 12.5mV Step.
     - 50mohm/35mohm RDS(ON)
     - Default output voltage VOUT2=1.15V
    • Channel 3 Synchronous Buck:
     - 2.5a Maximum Output Current Capability.
     - 0.8V to 2V Programmable, 12.5mV Step.
     - 50mohm/35mohm RDS(ON)
     - Default output voltage VOUT3=1.5V/1.35V
    • Channel 4 Synchronous Buck:
     - 2.5A Maximum Output Current Capability.
     - 0.8V to 2V Programmable, 12.5mV Step
     - 50mohm/35mohm RDS(ON)
     - Default Output Voltage VOUT4=1.8V
    • Channel 6 LDO:
     - 200mA Maximum Output Current Capability.
     - 0.8V to 2V Programmable, 25mV Step.
     - Default Output Voltage VOUT5=1.8V
    • I2C Interface up to 3.4MHz
    • Auto PWM/PFM or Forced PWM Controlled by I2C Interface
    • Output Voltage Level of Each Channel Controlled by I2C Interface
    • Reliable Protections:
     - Input / Output over Voltage Protection (OVP)
     - Short Circuit Protection (SCP)
     - Over Temperature Protection (OTP)
    • Compact Package: Fan-out CSP3.2x4.2-48

    The SY8970 is an integrated power management unit. It is designed to power a wide range of microcontrollers and solid-state drive applications.

    The device includes a load switch, 3 buck converters using integrated power FETs and a low-dropout regulator (LDO). Each buck converter switches at 2 MHz, requiring three small components for operation. All regulators can be configured for a wide range of output voltages through the I2C interface.

    The SY8970 is available in a Fan-out CSP3.2x4.2-48 package.

    Evaluation Board

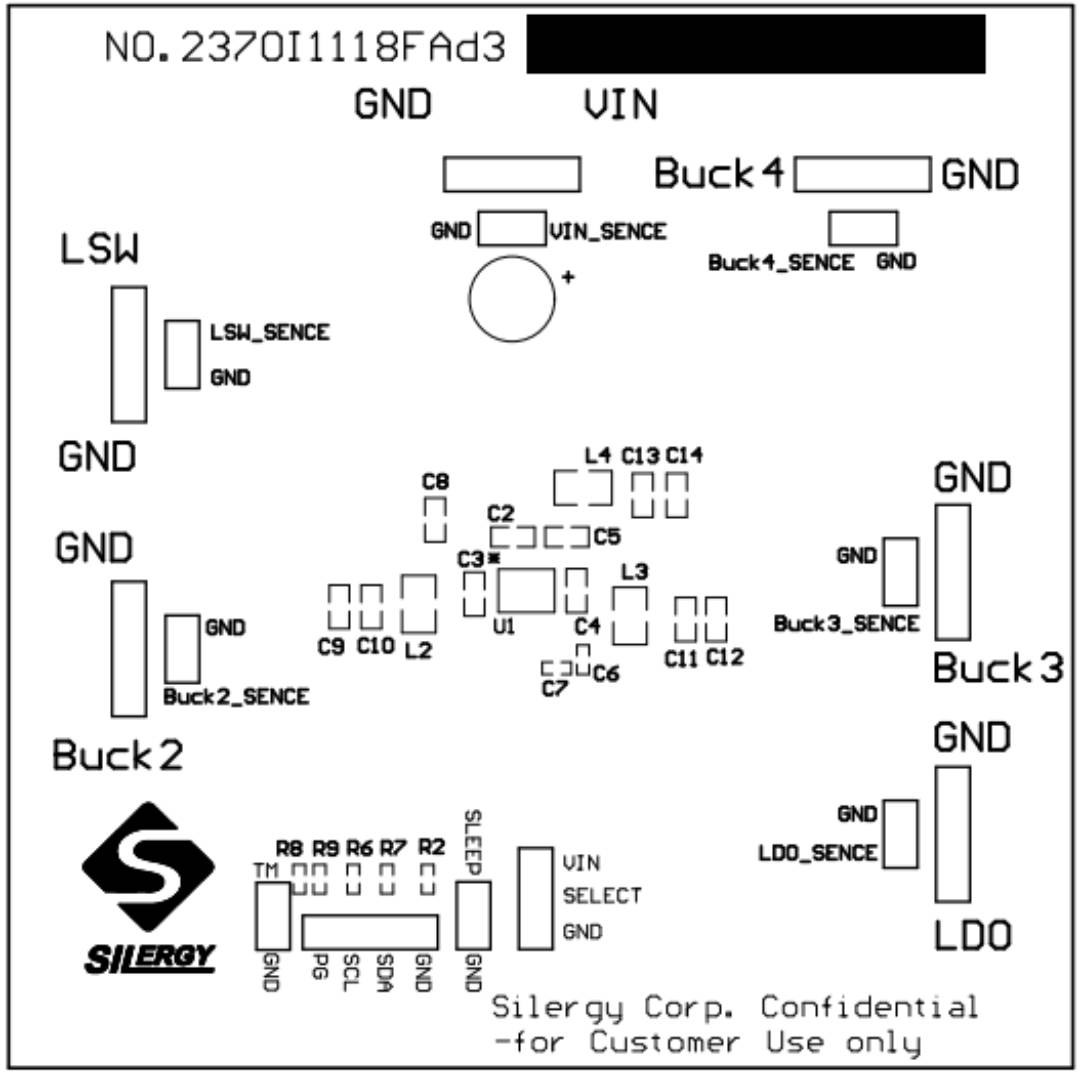

    • SY8970_1

      Photo of evaluation board

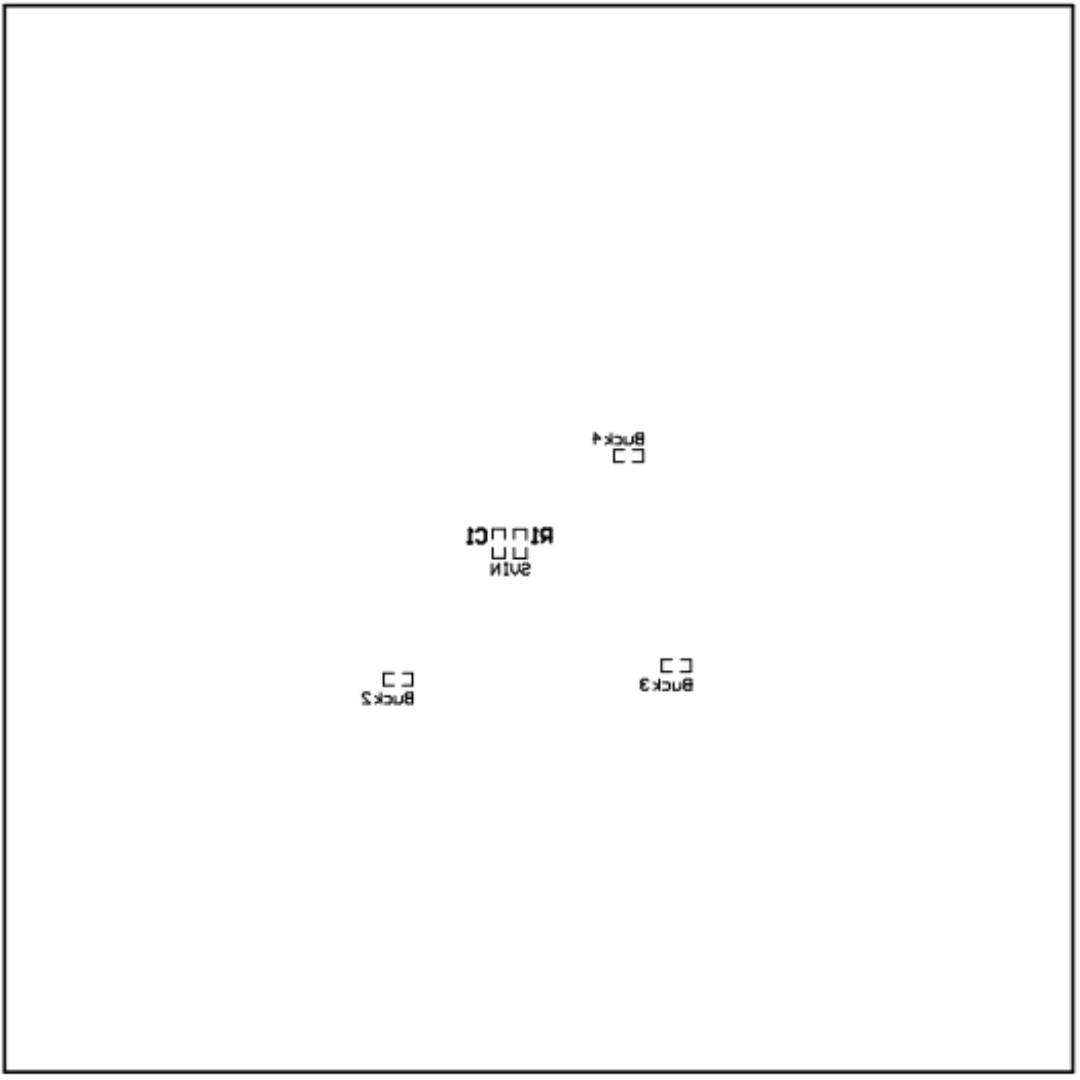

    • SY8970_2

      Photo of evaluation board

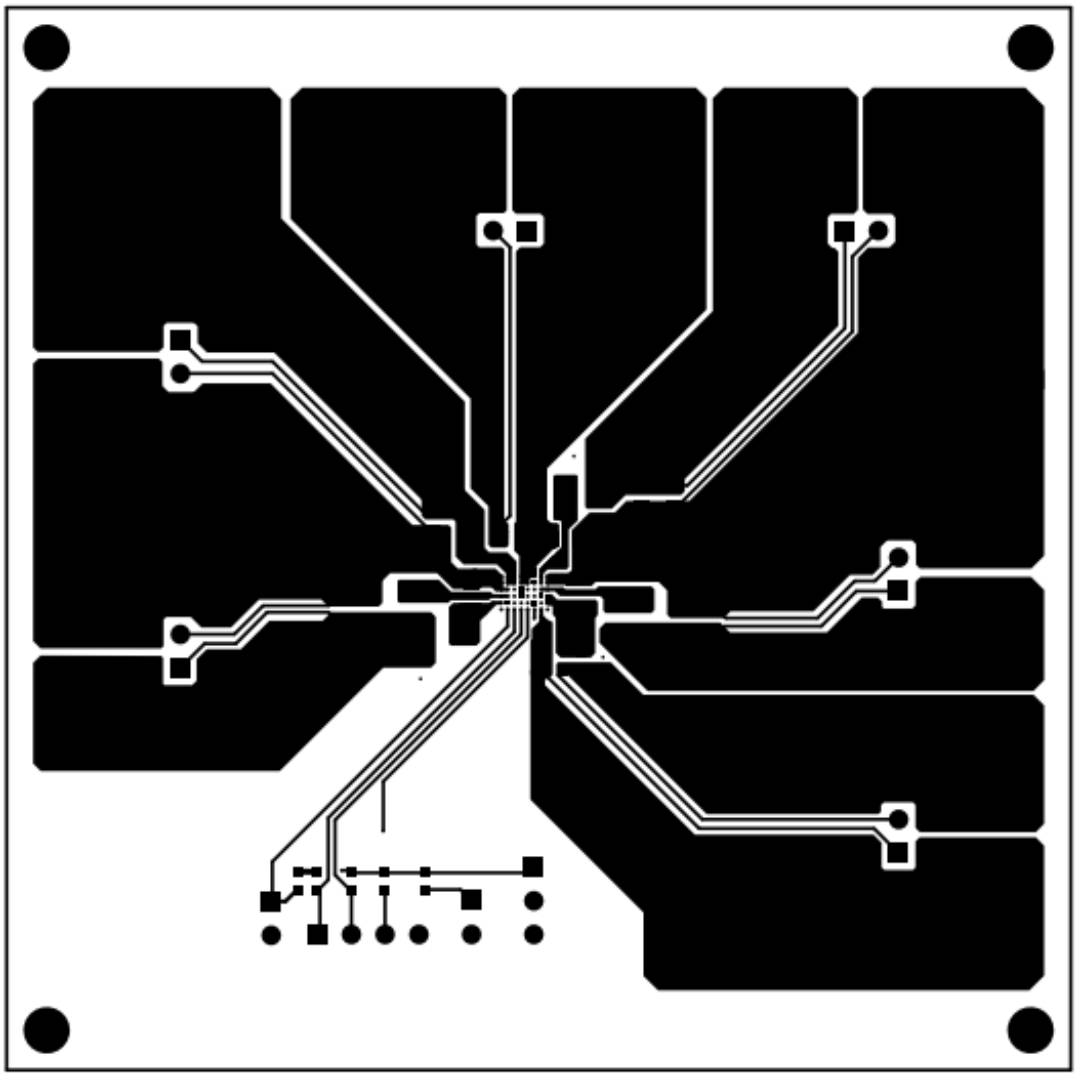

    • SY8970_3

      Photo of evaluation board

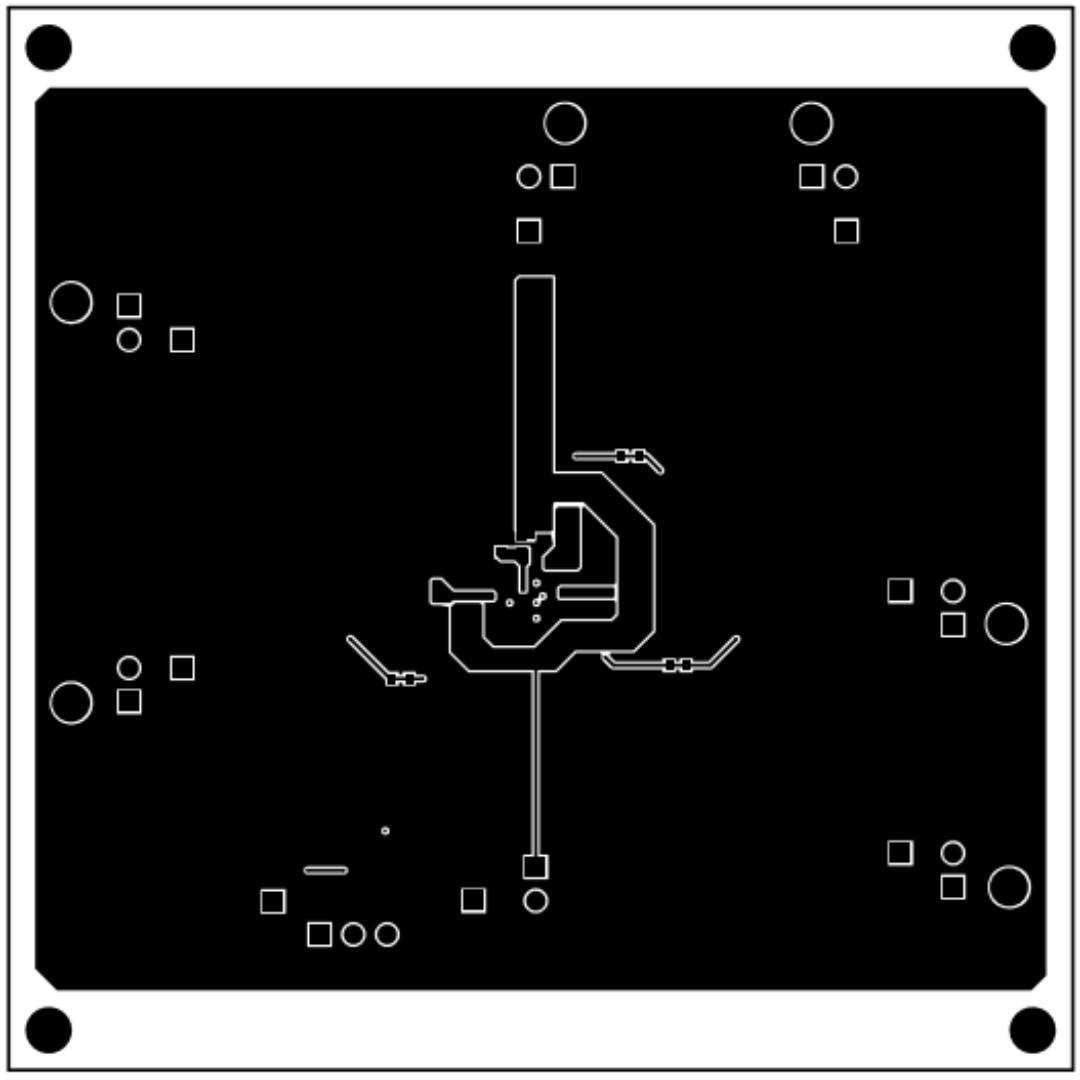

    • SY8970_4

      Photo of evaluation board

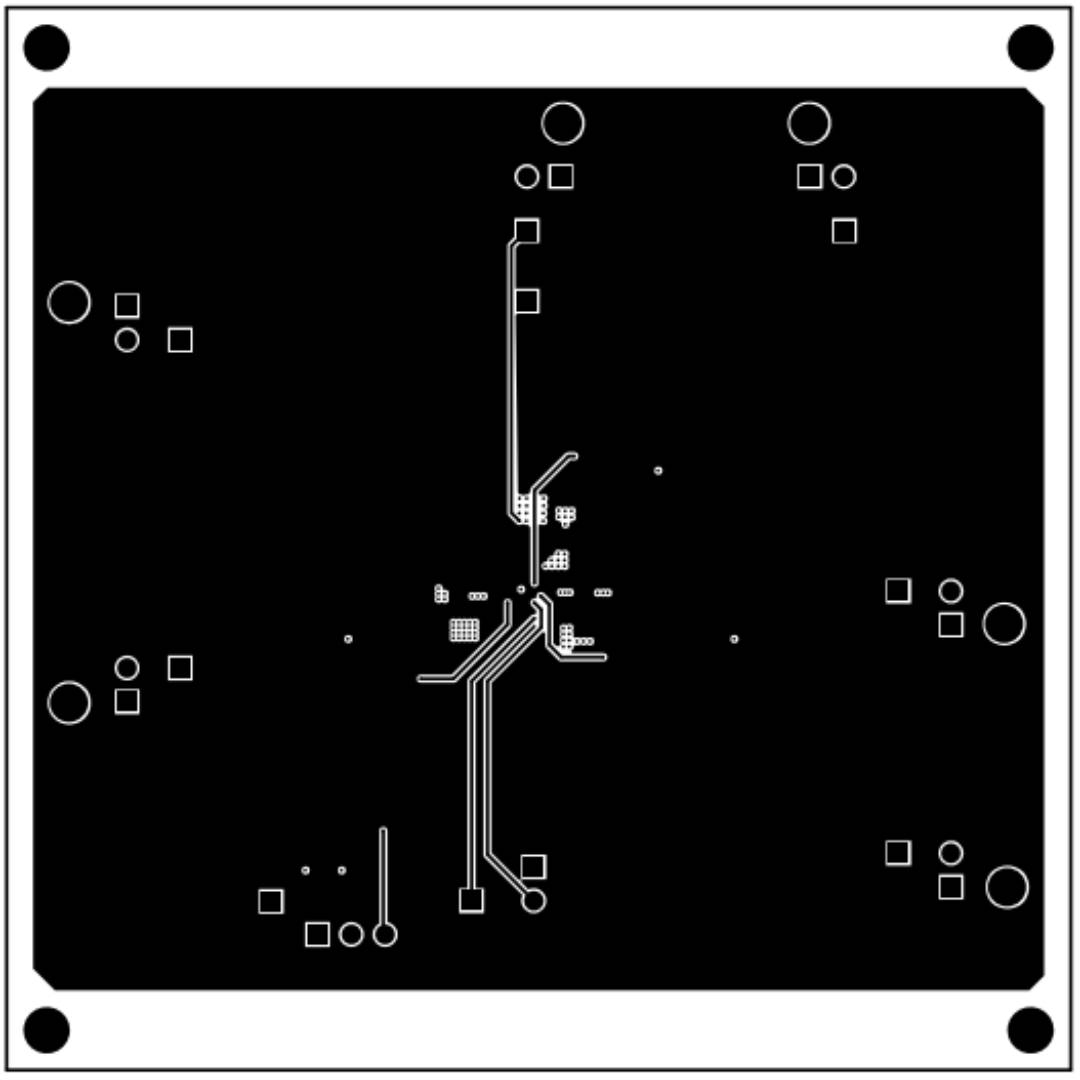

    • SY8970_5

      Photo of evaluation board

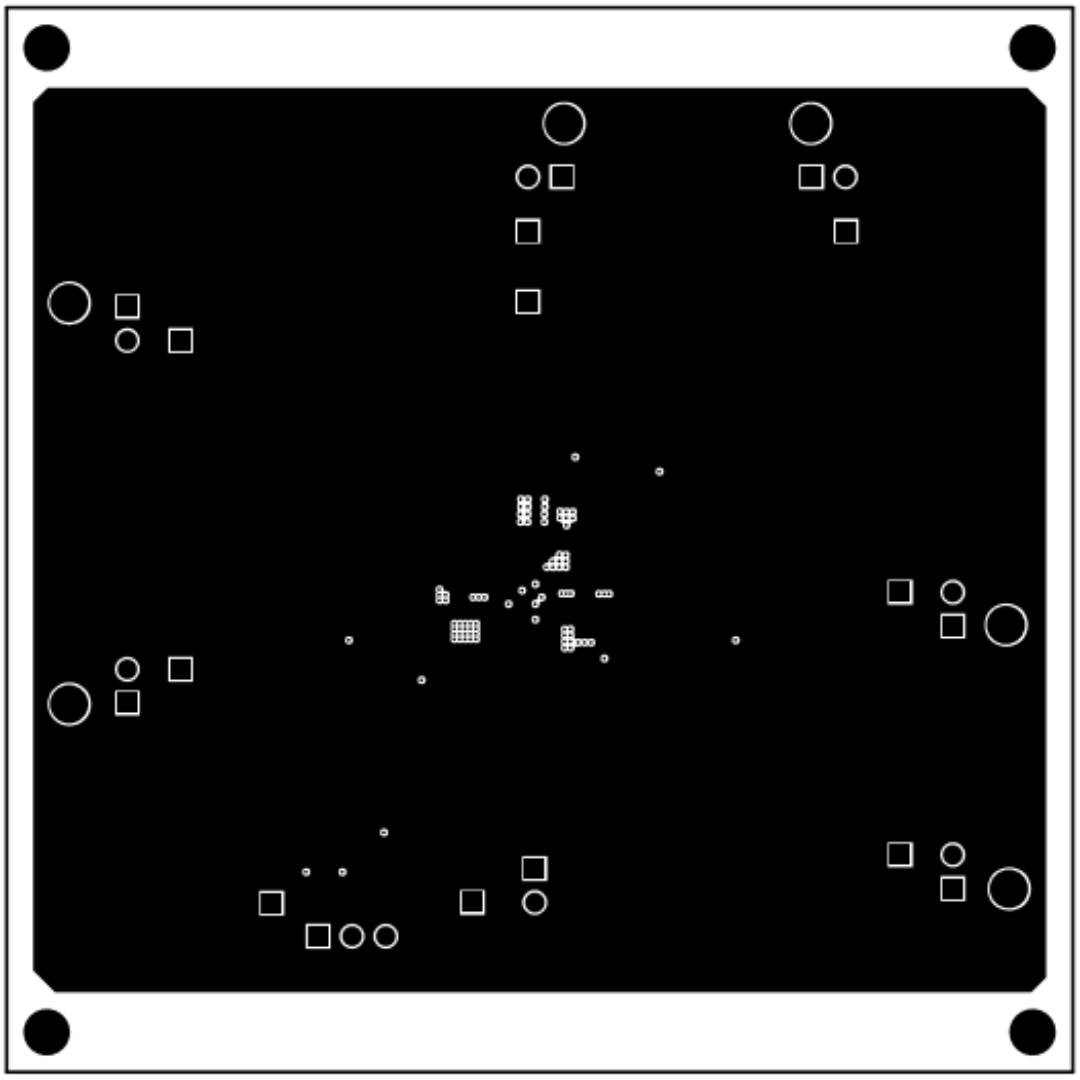

    • SY8970_6

      Photo of evaluation board

    EVB_SY8970UBC

    The EVB_SY8970UBC is intended for evaluating high efficiency high integration PMIC for SSD system.
