| Part number | SA52122BHHP |
|---|---|
| Vin (max) (V) | 32 |
| Vin (min) (V) | 4.5 |
| Number of half bridges | 12 |
| RDS(on) (HS + LS) (mΩ) | 1500 |
| Peak output current (A) | 1.5 |
| Sleep current (µA) | 1 |
| Integrated FETs(Yes/No) | Yes |
| Control interface | SPI |
| Features | Low power sleep mode, Support paralleled output mode, Support daisy chain functionality,Spread spectrum to optimize EMC performence, OVP, OCP, SCP, OLD, Undervoltage lockout |
| Operating temperature range(°C) | -40 to 125 |
| Package | TSSOP24 |
| Functional safety category | Functional safety capable |
The SA52122B is a twelve half-bridge motor driver solution designed for automotive, industrial, and mechatronic applications. The half-bridges are fully controllable, facilitating forward, reverse, coasting, and braking motor operations. All the functions can be programmed through a serial peripheral interface (SPI).
The device includes protection features such as overcurrent protection, open load detection, undervoltage lockout, overvoltage lockout, and thermal shutdown for reliable operation.
The open-drain nFAULT output can be configured to signal fault conditions to the host.
The device is available in a TSSOP24E package with an exposed pad for improved thermal dissipation.

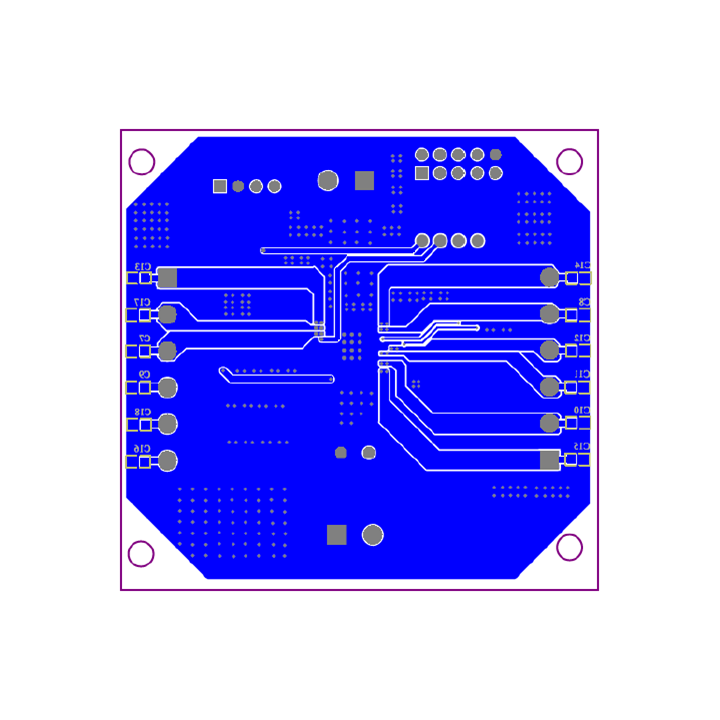

Photo of evaluation board

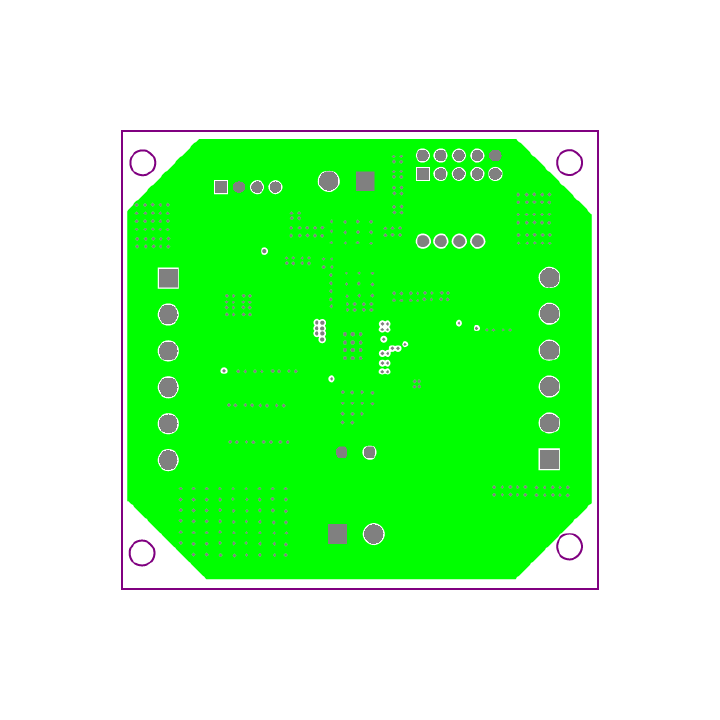

Photo of evaluation board

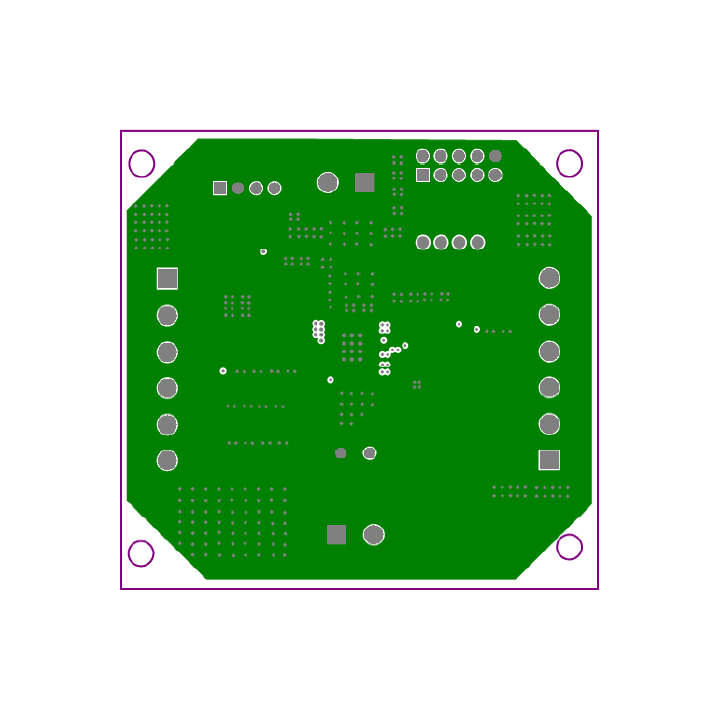

Photo of evaluation board

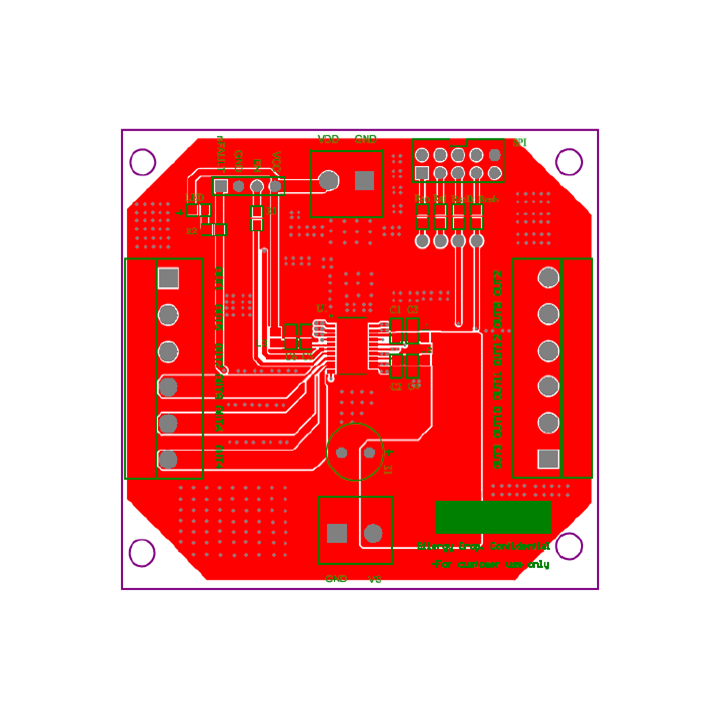

Photo of evaluation board
The EVB_SA52122BHHP is intended for evaluating Twelve Half-Bridge Driver with SPI Control SA52122BHHP.
