SA52280BYGQ

• Operating Voltage: 4.45V to 36V
• 1μA Shutdown Current (Typical 25°C)
• Optional Spread Spectrum Function (SPI Version)
• Spread Spectrum Function (Hardware)
• Flexible Input Control:
•    --2 Versions: SPI Version and Hardware (HW)
•    --Supports 3.3V and 5V Logic Inputs
• Integrated H-Bridge:
•    --RHS_ON=49mΩ
•    --RLS_ON=46mΩ
•    --Internal Asserted Dead Time
•    --Maximum 12A Current Capability
•    --Maximum PWM Frequency: 25kHz
•    --Configurable Output Slew Rate
• Integrated Current Sense Function:
•    --Load Current Feedback on ISEN Pin
•    --Configurable Current Limit
• Integrated Diagnostics and Protection Features:
•    --Off-State Short/Open Diagnostics
•    --On-State Open Load Diagnostics (SPI Version)
•    --Overcurrent Protection (OCP)
•    --VIN Overvoltage and Undervoltage Protection
•    --Thermal Shutdown (TSD)
•    --Fault Indicator: nFAULT Pin
• QFN3×4.5-14 Package with Wettable Flanks
• MSL Rating: MSL 1
• AEC-Q100 Grade 1

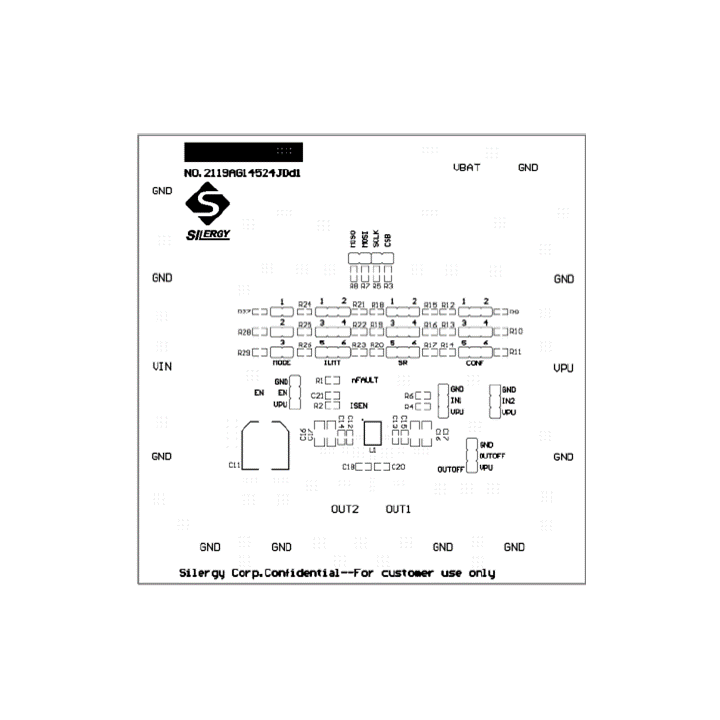

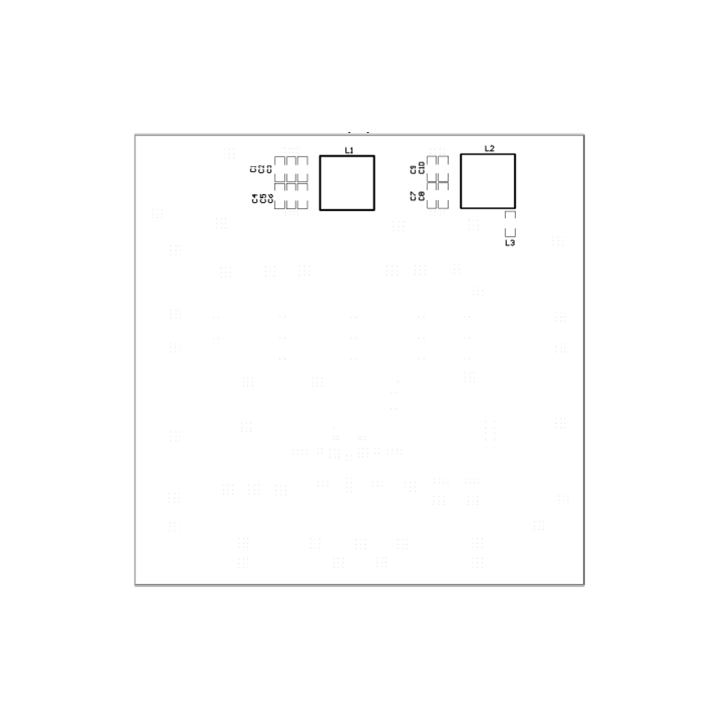

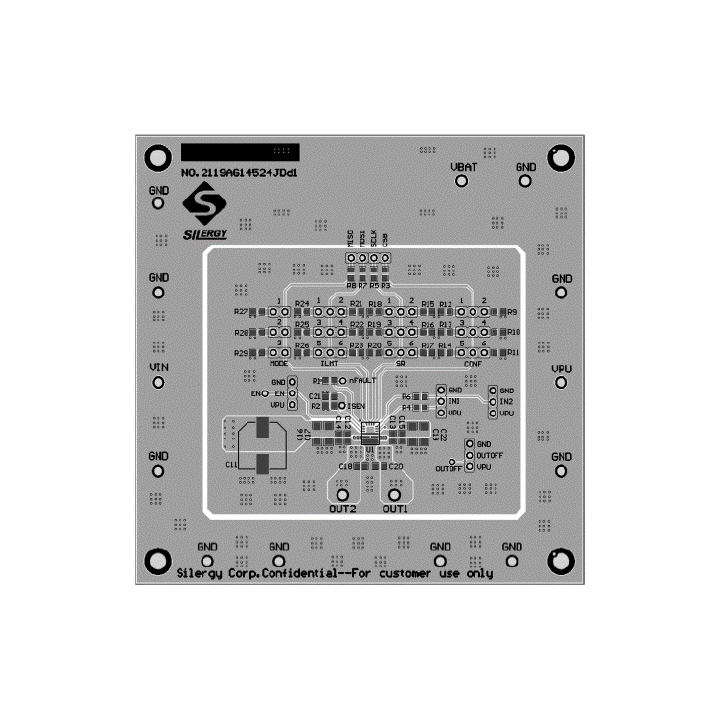

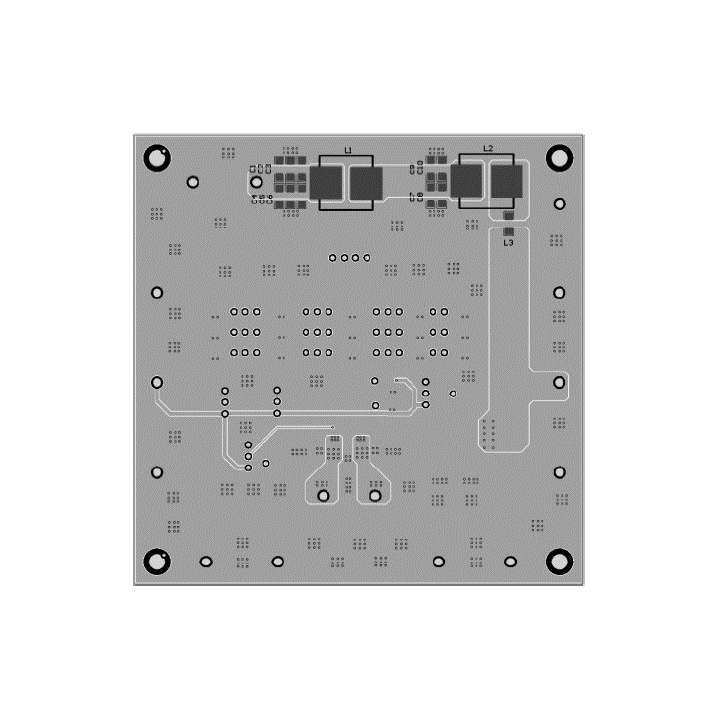

The SA52280 is an automotive H-bridge motor driver that integrates a full N-channel H-bridge. Suitable for a wide range of automotive applications, the device can operate in either full-bridge mode or independent half-bridge mode.

The SA52280 features an integrated charge pump, high-side MOSFET current sensing, and current-proportional output. It is also equipped with protection features, including overcurrent protection, input undervoltage lockout, input overvoltage protection, and thermal shutdown. The device supports both off-state and on-state diagnostic functions.

The SA52280 offers two variants: an SPI version and an HW version. The device is available in a QFN3×4.5-14 package with wettable flanks.
