Low Loss Power Distribution Switch with Programmable Current limit
![]()
- Parameters
- Features
- Description
| Part number |
SQ24201EDED |
| Vin (min) (V) |
2.5 |
| Vin (max) (V) |
5.5 |
| Vabs cont. (max) (V) |
6 |
| Iout (max) (A) |
2 |
| Protection mode |
OCP, OTP |
| Over current response |
Current limiting |
| Current limit (A) |
Adjustable |
| Fault response |
Auto-recovery |
| Ron (typ) (mΩ) |
65 |
| Certification recognition |
UL2367,IEC62368-1 |
| Iq (typ) (uA) |
45 |
| Enable logic |
High |
| Soft start |
Fixed |
| Features |
Reverse blocking, OCP alert |
| Package |
DFN2×2-6 |
| Operating temperature range(°C) |
-40 to 125 |
| Functional safety category |
|
- Input Voltage: 2.5V to 5.5V
- Extremely Low Power Path Resistance: 65mΩ(Typ.)
- Adjustable Current Limit up to 2A
- Reverse Blocking (No Body Diode)
- Fast Reverse Recovery
- Fault Flag (OCB) Output for Over Current and Fault Conditions
- At Shutdown, OUT Can Be Forced Higher than IN
- Built-in Soft-start
- RoHS Compliant and Halogen Free
- Compact Package Minimizes the Board Space: DFN2×2-6
- UL Certificate Number: UL-US-2435031-0
The SQ24201E is an ultra-low RDS(ON) power distribution switch with current limit to protect the power source from over current and short circuit conditions. It incorporates over temperature protection and reverse blocking function.
The SQ24201EDED is available in DFN2×2-6 package.
Evaluation Board
-

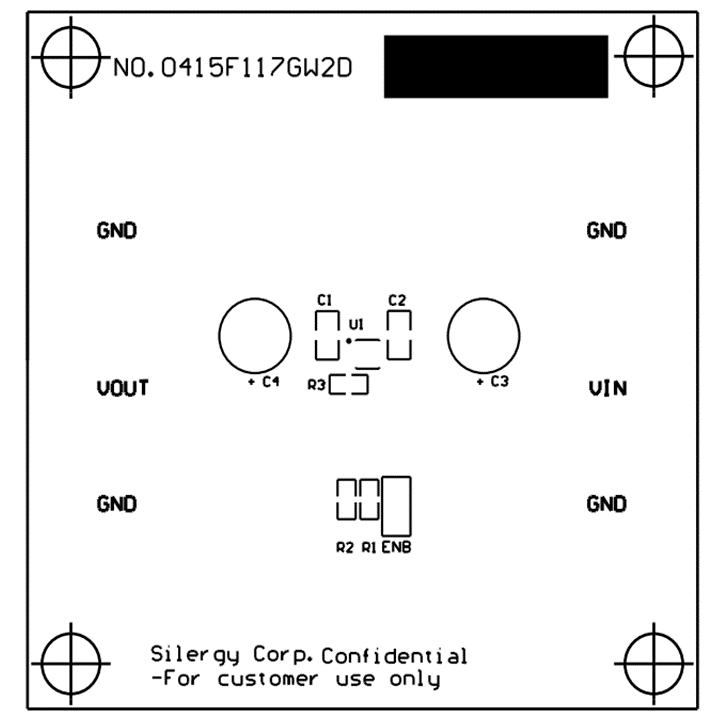

Photo of evaluation board
-

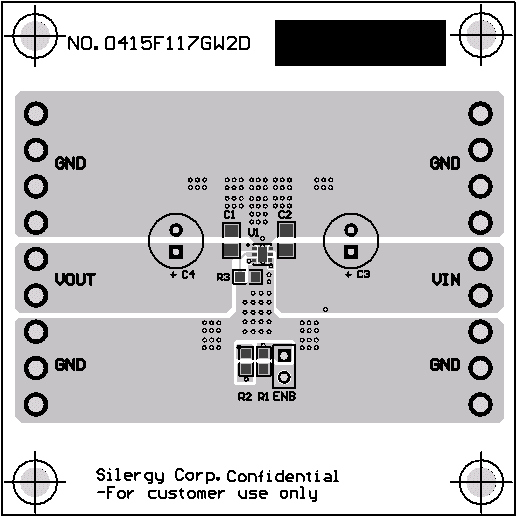

Photo of evaluation board
-

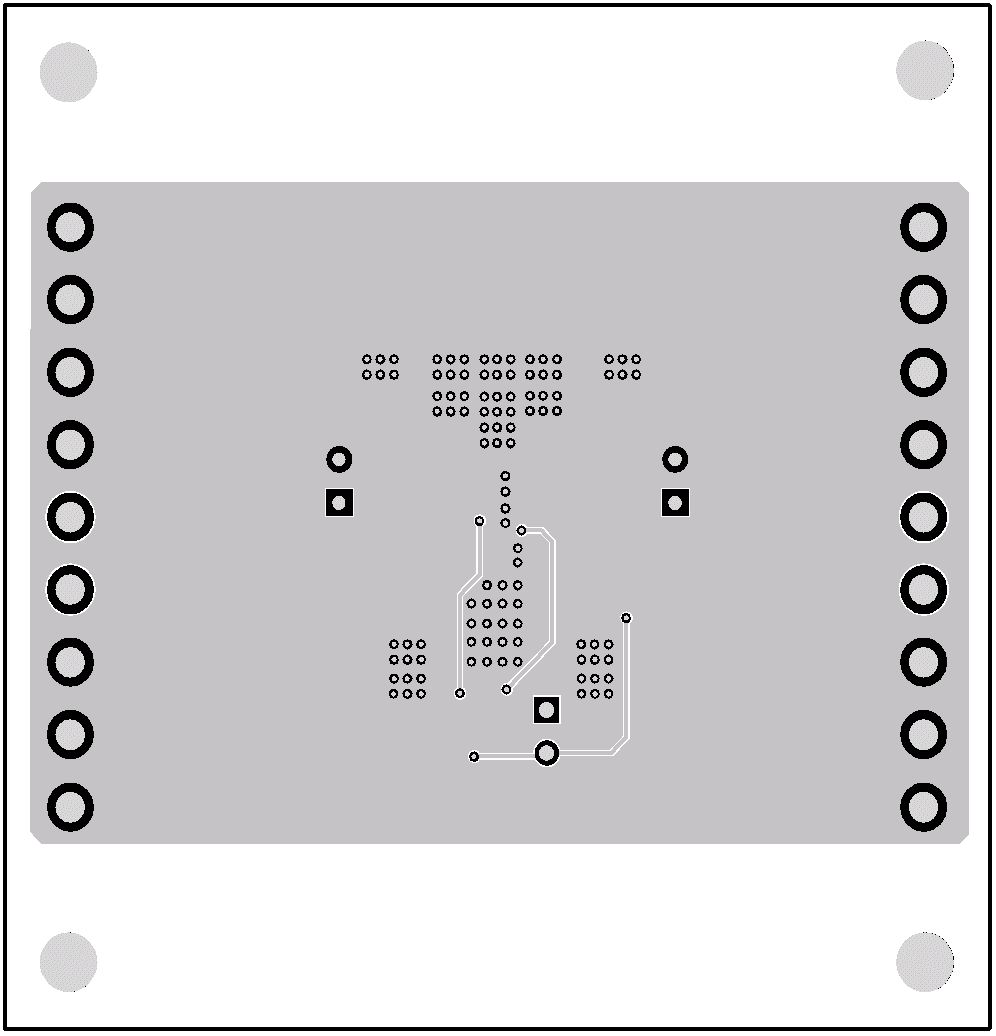

Photo of evaluation board
The EVB_SQ24201EDED is intended for evaluating 2.5V to 5.5V input, low loss power distribution Switch with programmable current limit SQ24201EDED.
