Dual-Channel LLC Synchronous Rectification Controller
- Parameters
- Features
- Description
| Part number | SQ33261FAP |
|---|
| Topology | LLC |
|---|
| Integrated FETs(Yes/No) | NO |
|---|
| Integrated FETs type | |
|---|
| Breakdown voltage (V) | 200V |
|---|
| Ron (typ) (mΩ) | |
|---|
| ZVS function | NO |
|---|
| Operation mode | CCM/DCM |
|---|
| Dual supply channel | YES |
|---|
| Features | Wide power supply,Dual-channel interlock |
|---|
| Package | SO8 |
|---|
| Operating temperature range(°C) | -40 to 125 |
|---|
| Functional safety category | |
|---|
- Dual-Channel SR Controller for LLC Resonant Converters
- Supports CCM, DCM Operation
- DA/DB Pins sensing up to 200V
- Wide 4.2V to 38V Power Supply Range
- 110µA Low Quiescent Current in Green Mode
- Dual-Channel Interlock to Prevent Short Circuit between Channels
- 15ns Fast Turn-Off Propagation Delay
- 1.7A Sink, 0.3A Source Gate Driver Capability
- Compact Package: SO8
Evaluation Board

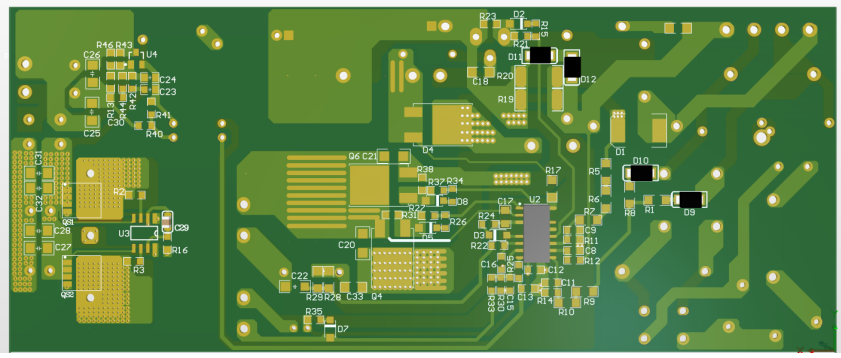

Photo of evaluation board

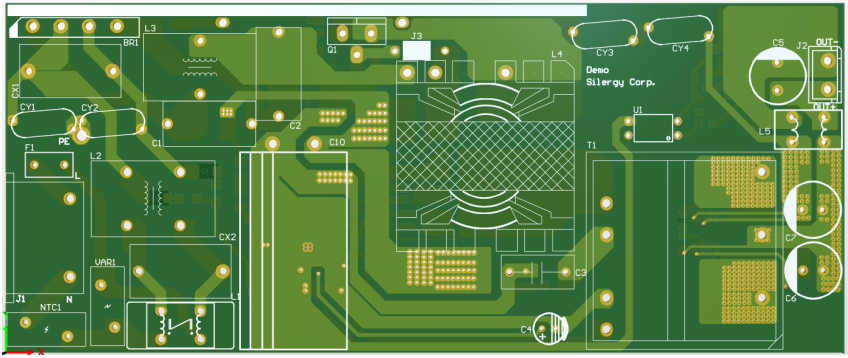

Photo of evaluation board
The EVB_SQ33261FAP is intended for evaluating LLC SR Controller
