• Flexible Phase Assignment and Arbitrary Firing Sequence, N<=6
• Differential Remote Sense
• Output Voltage Regulation Range Covers:

           ◦ 0.25~1.52V in 5mV Table

           ◦ 0.5~2.0V in 10mV Table

           ◦ 0.25~2V in Linear Mode (LSB=1.953mV)

• Programmable Soft-Start Slew Rate and Voltage Positioning Slew Rate
• Flexible Pin-Strap Settings Including:

          ◦ Multiple(8) Customer Configurations

          ◦ 5mV/10mV VID Table

          ◦ 4 PMBus Addresses with Additional 5 Bit Programmable Offset

          ◦ 8-Bit Boot Voltage

• PMBus 1.3.1 Compliant, 1.8/3.3V Signaling:

          ◦ System Configuration

          ◦ DVS using VOUT_COMMAND

         ◦ Operation Control and Fault Handling

         ◦ Status Reporting and Telemetry

• Flexible PWM Driver Design to Support SPS from Multiple Vendors
• Integrated Programmable Loop Compensation, Minimal External Components
• Adjustable Current Balancing with Optional Thermal Balancing Offsets
• Autonomous Phase Shedding with Enhanced Transient Performance
• Advanced Protection Scheme with Programmable Response and Thresholds

        ◦ Fault Response: Latched Shutdown,Hiccup, Autonomous Recovery

        ◦ IUVP, IOVP, OUVP, OOVP (Fix and Tracking)

        ◦ OCP

        ◦ OTP, DRV_FLT, DRV_NONRDY Protection

        ◦ Driver UVLO and Limp Mode fault detection

        ◦ SPS Current Sharing Protection

        ◦ Pulse by Pulse Current Limit

        ◦ Open/Short Voltage Sense Line Detection

        ◦ Per-Phase Negative Current Limit

• Internal NVM to Store Up to 8 Customer Configurations
• Switching Frequency Range from 300kHz to 1.2MHz with Frequency Compensation
• Single +3.3V Supply Operation
• 48-Lead QFN7x7 0.5mm Pitch Package

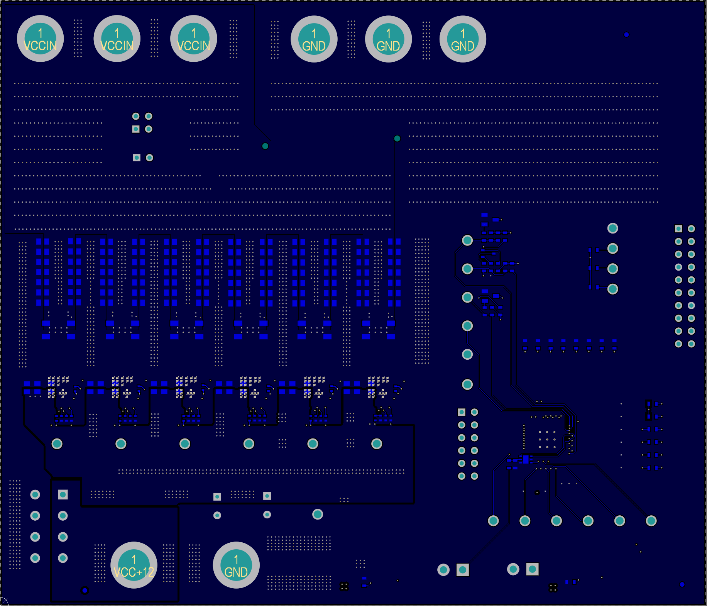

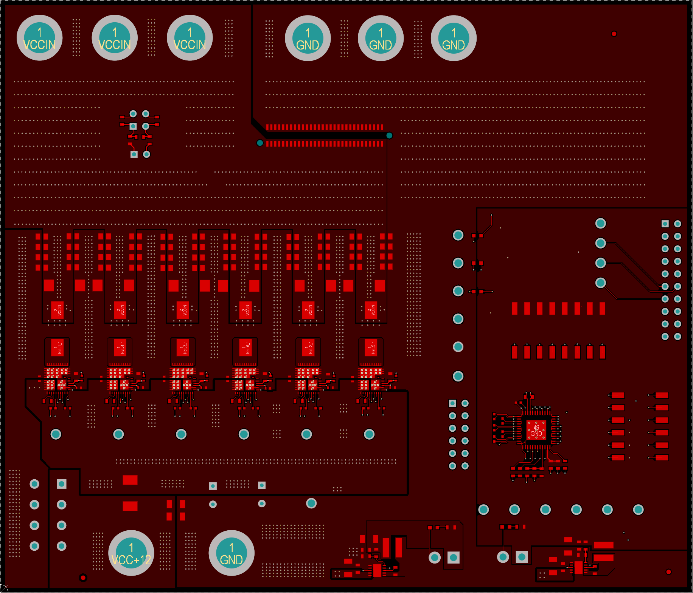

The SQ51202 single rail 6 phase digital controller provides power for high performance SoCs. Silergy’s unique ripple-based control with built-in flexible loop compensation provides fast transient response for high current applications. The controller supports integrated power stages that provide current and temperature sense. Additionally, SQ51202’s programmable PWM driving configuration provides flexibility when used with DrMOS devices from multiple vendors.

The SQ51202 supports the PMBus® communication interface and it is compatible with 1.8V/3.3V interface levels. Complying with PMBus, SQ51202 supports the following features: dynamic voltage scaling (DVS), reporting telemetry information of voltage, current, temperature, fault/waring status to the host, configurable fault response and thresholds. All programmable parameters can be stored in a nonvolatile memory.
