• Flexible Phase Assignment Between Two Rails and Arbitrary Firing Sequence, N+M ≤5
• Differential Remote Sense
• Output Voltage Regulation Range:

         ° 0.25~1.52V in 5mV Table

         ° 0.25~1.52V in Linear Mode (1mV Custom Table)

• Programmable Soft-Start Slew Rate and Voltage Positioning Slew Rate
• Flexible Pin-strap Settings including:

         ° 8 PMBus Device Address

        ° 16 Boot Voltage for Both Rails

• PMBus® 1.3.1 Compliant, 1.8/3.3V Signaling:

        ° System Configuration

        ° Dynamic Voltage Scaling using VOUT_COMMAND

        ° Operation Control and Fault Handling

        ° Status Reporting and Telemetry

• PMBus® PARTIII, AVSBus Compatible
• Flexible PWM Driver Design to Support SPS (Smart Power Stage) from Multiple Vendors
• Integrated Programmable Loop Compensation
• Adjustable Current Balancing with Optional Thermal Balancing Offsets
• Advanced Protection Scheme with Programmable Response and Thresholds:

         ° Fault Response: Latch Shutdown, Hiccup, Autonomous Recovery

         ° IUVP, IOVP, OUVP, OOVP (Fixed and Tracking)

         ° OCP

         ° OTP, DRV_FLT, DRV_NONRDY Protection

         ° SPS Current Sharing Protection

         ° Pulse-by-Pulse Current Limit

         ° Open/Short Voltage Sense Line Detection

• Internal NVM to Store Configuration
• Switching Frequency Range from 300kHz to 2MHz
• Single +5V Supply Operation
• 48-Lead QFN7x7 0.5mm Pitch Package

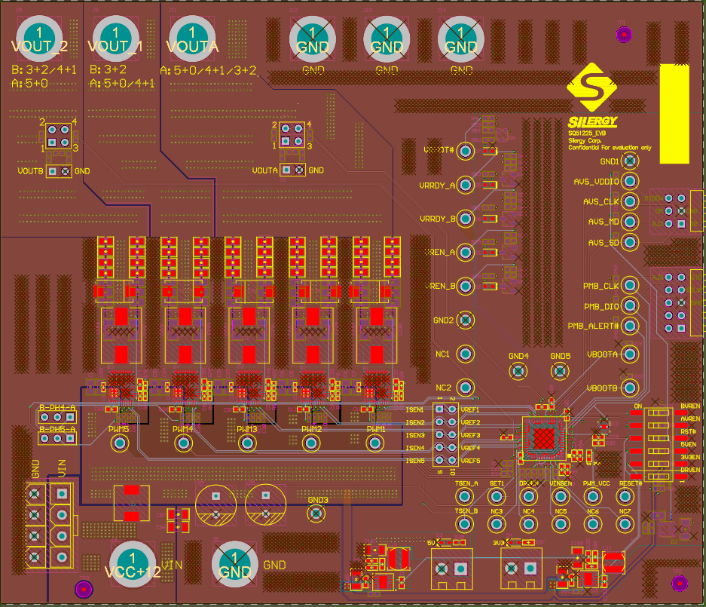

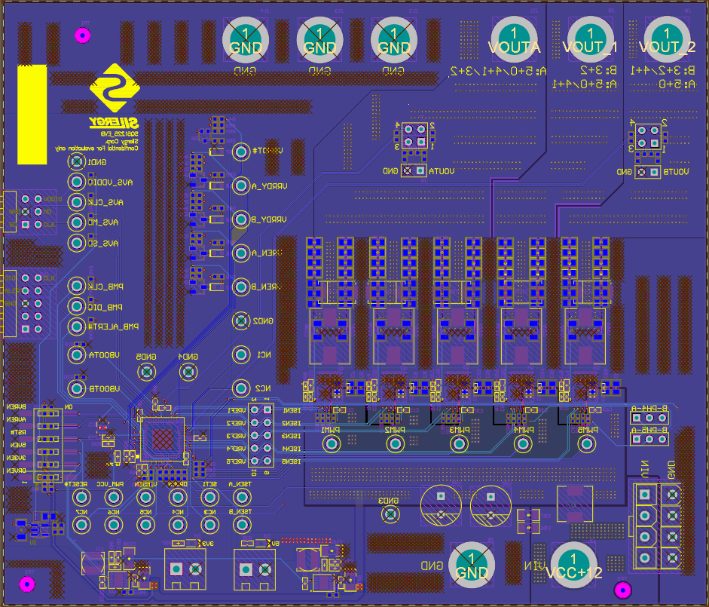

The SQ51225 dual rail N+M≤5 phase digital controller provides power for high performance ASICs. Silergy’s unique ripple-based control with built-in flexible loop compensation offers a fast transient response for high current applications. The controller supports integrated power stages that provide current and temperature sense. Additionally, SQ51225’s programmable PWM driving configuration provides flexibility when used with DrMOS from multiple vendors.

The SQ51225 supports the PMBus® communication interface and is compatible with 1.8V/3.3V logic levels. Compliant with PMBus, the SQ51225 supports system configurations, dynamic voltage scaling (DVS), and reporting telemetry information of voltage, current, temperature, as well as fault/ warning status to the host. It also provides configurable fault responses and thresholds. All programmable parameters can be stored in non-volatile memory.

Additionally, the SQ51225 includes an AVSBus® communication interface to facilitate and expedite point-to-point communication. The SQ51225 supports output voltage target setting, transient rate configuration, and telemetry of current, temperature, as well as fault status reporting with the AVSBus interface.
