SY20081AAC -


·       Low RDS(ON) for Internal Switches (Top/Bottom):

260mΩ/170 mΩ

·       2.5-5.5V Input Voltage Range

·       40μA Typical Quiescent Current

·       High Light Load Efficiency

·       2.0MHz Switching Frequency

·       Internal Softstart Limits the Inrush Current

·       100% Dropout Operation

·       RoHS Compliant and Halogen Free

· Compact Package: SOT23-5

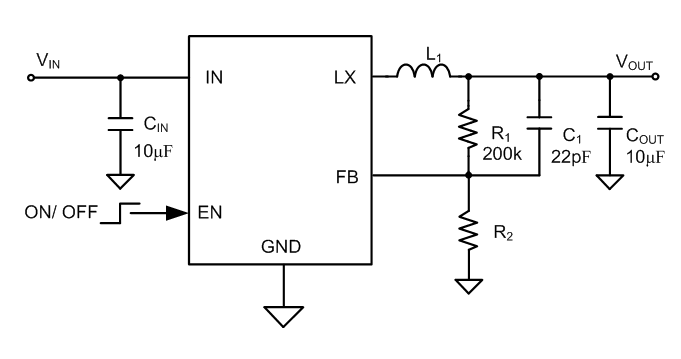

Typical Application


The SY20081 is a high-efficiency 2.0MHz synchronous step-down DC-DC converters capable of delivering up to1Aoutput current. It operates over a wide input voltage range from 2.5V to 5.5V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.


·       Wireless LAN Card

·       DVD Blu-ray Drive

· USB Datacard
