SY20113DFC (SY8003DFC)

Not recommended for new designs
High Efficiency 5.5V, 3A continuous, 1MHz Synchronous Step Down Regulator
Datasheet
SY20113DFC High Efficiency 5.5V, 3A continuous, 1MHz Synchronous Step Down Regulator Datasheet
    Part numberSY20113DFC
    Channel(#)
    Vin (min) (V)2.7
    Vin (max) (V)5.5
    Switching frequency (min)(kHz)
    Switching frequency (max)(kHz)
    Vout (min) (V)0.6
    Vout (max) (V)
    Iout (max) (A)3
    Vout2 (min)(V)
    Vout2 (max )(V)
    Iout2 (max)(A)
    Vref accuracy (±%)±2%
    Vout accuracy(±%)
    Control mode
    Duty cycle (max)(%)
    Operation mode
    Iq (typ) (uA)
    FeaturesPower Good Indicator,Auto-Discharge,100% Dropout Operation
    PackageDFN2x2-8
    Operating temperature range(°C)
    Functional safety category
    • Low RDS(ON) for Internal Switches(Top/Bottom):110mΩ/80mΩ
    • 3A Continuous Load Current Capability
    • 2.7-5.5V Input Voltage Range
    • High Switching Frequency Minimizes the External Components: 1MHz
    • Internal Soft-start Limits the Inrush Current
    • Reliable Short Circuit Protection:  Latch off Protection
    • Reliable Over-voltage Protection: Latch off Protection
    • 100% Dropout Operation
    • RoHS Compliant and Halogen Free
    • Compact Package: DFN2x2-8

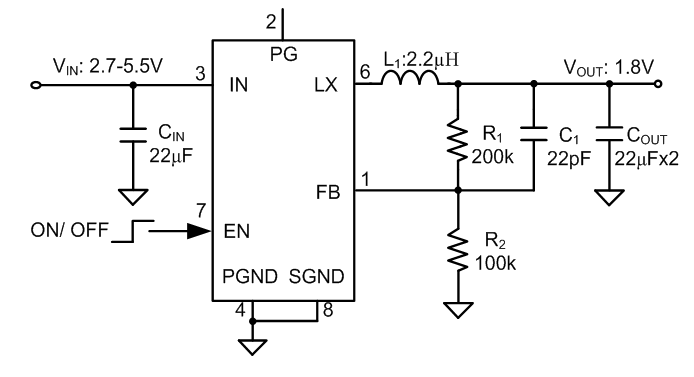

     The SY20113 is a high-efficiency, high frequency synchronous step-down DC/DC regulator capable of delivering up to 3A output current. The SY20113 operates over a wide input voltage range from 2.7V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.



    Low output voltage ripple and small external inductor and capacitor sizes are achieved with 1MHz switching frequency.



    SY20113 integrates reliable short circuit and over-voltage protection.
