High Efficiency, 1MHz, 3A Synchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part number |
SY20117DFC |
| Channel(#) |
|
| Vin (min) (V) |
2.5 |
| Vin (max) (V) |
5.5 |
| Switching frequency (min)(kHz) |
|
| Switching frequency (max)(kHz) |
|
| Vout (min) (V) |
0.6 |
| Vout (max) (V) |
|
| Iout (max) (A) |
3 |
| Vout2 (min)(V) |
|
| Vout2 (max )(V) |
|
| Iout2 (max)(A) |
|
| Vref accuracy (±%) |
±1.5% |
| Vout accuracy(±%) |
|
| Control mode |
|
| Duty cycle (max)(%) |
|
| Operation mode |
|
| Iq (typ) (uA) |
|
| Features |
Power Good Indicator,Auto-Discharge,100% Dropout Operation |
| Package |
DFN2x2-8 |
| Operating temperature range(°C) |
|
| Functional safety category |
|
- 2.5V to 5.5V Input Voltage Range
- 55μA Low Quiescent Current
- Low RDS(ON) for Internal Switches (Top/Bottom): 85mΩ /60mΩ
- High Switching Frequency 1MHz Minimizes the External Components
- Internal Soft-start Limits the Inrush Current
- 100% Dropout Operation
- Power Good Indicator
- Reliable Latch off Function When:
Ø Output Under Voltage
Ø Thermal Shutdown
Ø Output Voltage>120% of Regulated Voltage
- Output Auto Discharge Function
- RoHS Compliant and Halogen Free
- Compact Package: DFN2×2-8
The SY20117 is a high efficiency 1MHz synchronous step down DC/DC regulator, which is capable of delivering up to 3A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
The SY20117 integrates reliable latch off function when output over voltage, output short or thermal shutdown happens.
The low output voltage ripple, the small external inductor and the capacitor sizes are achieved with 1MHz switching frequency.
Evaluation Board
-
Photo of evaluation board
-
Photo of evaluation board
-
Photo of evaluation board

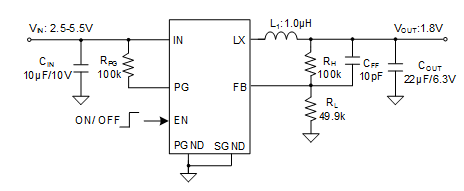

The EVB_SY20117DFC is intended for evaluating 1MHz, 3A, 2.5~5.5V input, 1.8V output synchronous Buck regulator. It features enable control.
