SY20183DEC -


·       Low RDS(ON) for Internal Switches (Top/Bottom):

o           SY20183:200mΩ/150 mΩ,1.5AContinuous,2APeak

·       2.5-5.5V Input Voltage Range

·       2.25MHz Switching Frequency

·       50uA Quiescent Current

·       Internal Softstart Limits the Inrush Current

·       1.5% 0.6V Reference

·       100% Dropout Operation

·       RoHS Compliant and Halogen Free

· Compact Package: DFN2x2 6 pins

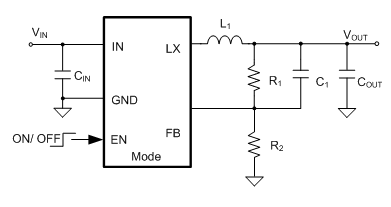

Typical Application


The SY20183L and SY20183 are high-efficiency 2.25MHz synchronous step-down DC-DC converters capable of delivering1.5Aoutput current. SY20183/L operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.


·       WiFi Card

·       Set Top Box

·       GPS

· Toy
