High Efficiency 3MHz, 4A Synchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part number |
SY20216DFC |
| Channel(#) |
1 |
| Vin (min) (V) |
2.7 |
| Vin (max) (V) |
5.5 |
| Switching frequency (min)(kHz) |
3000 |
| Switching frequency (max)(kHz) |
3000 |
| Vout (min) (V) |
0.6 |
| Vout (max) (V) |
5 |
| Iout (max) (A) |
4 |
| Vout2 (min)(V) |
|
| Vout2 (max )(V) |
|
| Iout2 (max)(A) |
|
| Vref accuracy (±%) |
1.5 |
| Vout accuracy(±%) |
|
| Control mode |
Clock+Ipeak |
| Duty cycle (max)(%) |
100 |
| Operation mode |
Auto PFM |
| Iq (typ) (uA) |
60 |
| Features |
Power good,Output discharge |
| Package |
DFN2×2-8 |
| Operating temperature range(°C) |
-40 to 125 |
| Functional safety category |
|
- Low RDS(ON) for Internal Switches (Top/Bottom): 35/15 mΩ
- 2.7-5.5V Input Voltage Range
- 3MHz Switching Frequency Minimizes the External Components
- Internal Soft-start Limits the Inrush Current
- Up to 92% Efficiency
- 4A Continuous Output Current Capability
- Shutdown Mode Draws<0.1µA Supply Current
- 100% Dropout Operation
- Power Good Indicator
- OCP/UVLO/OTP Protections
- RoHS Compliant and Halogen Free
- Compact Package: DFN2x2-8
The SY20216 is a high efficiency 3MHz synchronous step down DC/DC regulator capable of delivering up to 4A output current. It operates over a wide input voltage range from 2.7V to 5.5V. It integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss. High integrated solution and DFN2×2-8 package perform the optimized BOM cost and reduce external component count. Low input and output voltage ripple, small external inductor and capacitor sizes, small PCB layout space are achieved.
Evaluation Board
-
Photo of evaluation board
-
Photo of evaluation board
-
Photo of evaluation board
-
Photo of evaluation board
-
Photo of evaluation board

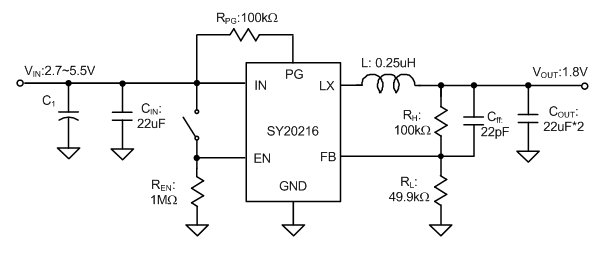

The EVB_SY20216DFC is intended for 3MHz, 4A, 2.7~5.5V input, 1.8V output synchronous step-down DC/DC regulator.
