SY20218DBC (SY8036DBC)

Production
High Efficiency 5.5V, 6A, 1 MHz Synchronous Step Down Regulator
Datasheet
SY20218DBC High Efficiency 5.5V, 6A, 1 MHz Synchronous Step Down Regulator Datasheet
Part number SY20218DBC
Channel(#) 1
Vin (min) (V) 2.7
Vin (max) (V) 5.5
Switching frequency (min)(kHz) 1000
Switching frequency (max)(kHz) 1000
Vout (min) (V) 0.6
Vout (max) (V) 5
Iout (max) (A) 6
Vout2 (min)(V)
Vout2 (max )(V)
Iout2 (max)(A)
Vref accuracy (±%) 1.5
Vout accuracy(±%)
Control mode Clock+Ipeak
Duty cycle (max)(%) 100
Operation mode Auto PFM
Iq (typ) (uA) 150
Features Power good, Output discharge
Package DFN3×3-10
Operating temperature range(°C) -40 to 125
Functional safety category
  •      Low RDS(ON) for Internal Switches (Top/Bottom): 40/30mΩ
  •      Input Voltage Range: 2.7-5.5V
  •      1 MHz Switching Frequency Minimizes the External Components
  •      External Adjustable Soft-start Limits the Inrush Current
  •      100% Dropout Operation
  •      Power Good Indicator
  •      RoHS Compliant and Halogen Free
  •      Compact Package: DFN3x3-10

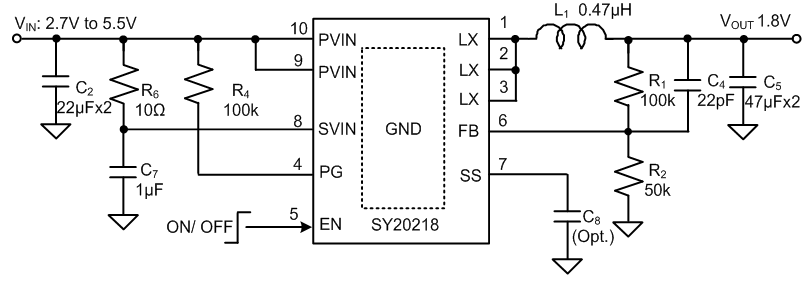

SY20218 is a high-efficiency 1 MHz synchronous step-down DC/DC regulator capable of delivering up to 6A output current. SY20218 operates over a wide input voltage range from 2.7V to 5.5V and integrates the main switch and the synchronous switch with very low RDS(ON) to minimize the conduction losses.

Low output voltage ripple and small external inductor and capacitor sizes are achieved with 1MHz switching frequency.

Evaluation Board

  • 20218-1

    Photo of evaluation board

  • 20218-2

    Photo of evaluation board

  • 20218-3

    Photo of evaluation board

  • 20218-4

    Photo of evaluation board

  • 20218-5

    Photo of evaluation board

EVB_SY20218DBC

The EVB_SY20218DBC is to facilitate the evaluation of SY20218DBC, 5.5V, 6A, 1 MHz synchronous Buck regulator.

Technical Documentation

Title Date
Silergy_Catalog_Q2_2026 2026-06-12
DFN3x3-10 2022-05-20
