SY20601QUC (SQ76081QUC)

Production
High Efficiency 3MHz, 0.6A Power Module
Datasheet
SY20601QUC High Efficiency 3MHz, 0.6A Power Module Datasheet
Part number SY20601QUC
Topology
Vin (min) (V) 2.5
Vin (max) (V) 5.5
Iout (max) (A) 0.6
Vout (min) (V)
Vout (max) (V)
Default Vout (V)
Package QFN2x1.5-8
Height(mm) 1
Fsw(MHz) 3
Vref accuracy (±%) ±2%
with I2C
with PG
Soft start
Features
MSL
  • Low RDS(ON) for Internal Switches (Top/Bottom) 230mΩ/150mΩ
  • Integrate an Inductor to Minimizes the External Components and PCB Layout Design
  • 2.5~5.5V Input Voltage Range
  • Output Voltage:SY20601: Output Voltage Adjustable
  • High Switching Frequency 3MHz Minimizes the External Components
  • Internal Soft-start Limits the Inrush Current
  • 100% Dropout Operation
  • RoHS Compliant and Halogen Free
  • Output Auto Discharge Function
  • Compact Package: QFN2×1.5-8

Evaluation Board

  • 20601

    Photo of evaluation board

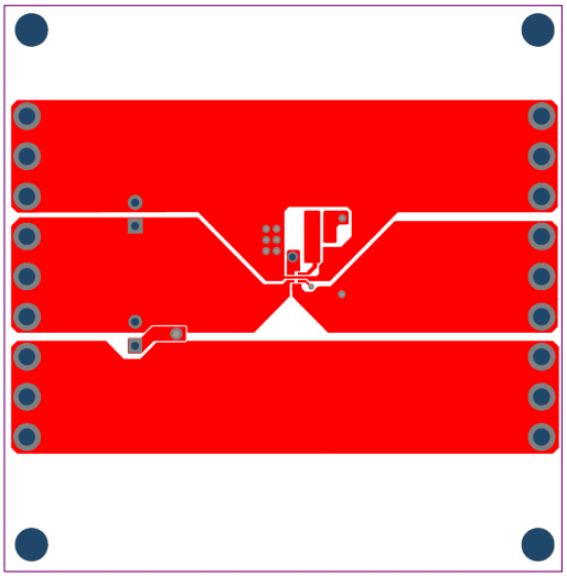

  • 20601-

    Photo of evaluation board

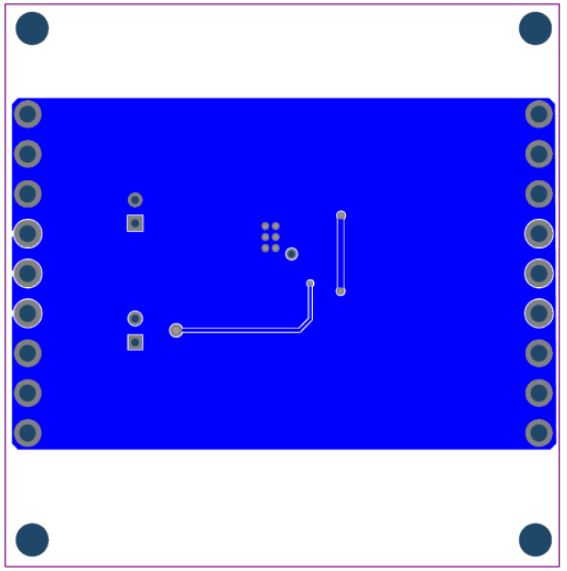

  • 20601--

    Photo of evaluation board

EVB_SY20601QUC

The EVB_SY20601QUC is used to evaluate 3MHz, 0.6A synchronous step-down converter SY20601QUC.
