SY20728BMAB (SY6103BMAB)

3A Fast-Response LDO Regulator

SY20728BMAB 3A Fast-Response LDO Regulator Datasheet

Parameters
Features
Description

Part number	SY20728BMAB
Vin (max) (V)	18
Vin (min) (V)	3
Iout (max) (A)	3
Output type	Adjustable
Vout (max) (V)	18
Vout (min) (V)	1.24
Iq (typ) (uA)
PSRR at 100kHz (dB)	30
Accuracy (±%)	2
Features	Enable,Fixed soft-start,Over current protection,Thermal shutdown
Operating temperature range(°C)	-40 to 125
Package	TO263-5
Functional safety category

High-current Capability:3A Over Full Temperature Range
Low-dropout Voltage of 480mV at Full Load 3A
Extremely-fast Transient Response
Zero-current Shutdown Mode
Adjustable Output Voltage
Low Ground Current
Over Current Limit
Over Temperature Protection.
Packages: TO263-5
RoHS Compliant and Halogen Free

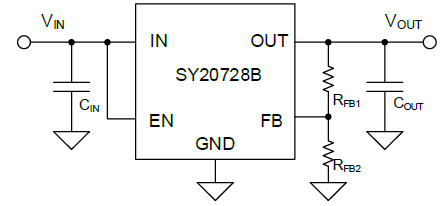

The SY20728B is a 3A high current capacity and low drop out voltage regulator, which features very fast transient recovery from input voltage surges and output load current changes. The SY20728B has an adjustable output which can be set by two external resistors to a voltage between 1.24V to 18V. SY20728B with fully protection includes over current limit, and over temperature operation.

Evaluation Board

Photo of evaluation board
Photo of evaluation board
Photo of evaluation board

EVB_SY20728BMAB

EVB File

The EVB_SY20728BMAB is intended for evaluating 3A high current capacity and low drop out voltage LDO regulator.

Technical Documentation

Title	Date
Silergy_Catalog_Q2_2026	2026-06-12
