SY20737HDGD (SQ24345HDGD)
36V, 500mA LDO Regulator
![]()
- Parameters
- Features
- Description
| Part number |
SY20737HDGD |
| Vin (max) (V) |
36 |
| Vin (min) (V) |
4 |
| Iout (max) (A) |
0.5 |
| Output type |
Adjustable |
| Vout (max) (V) |
36 |
| Vout (min) (V) |
0.6 |
| Iq (typ) (uA) |
7 |
| PSRR at 100kHz (dB) |
25 |
| Accuracy (±%) |
2 |
| Features |
Enable,Fixed soft-start,Auto-discharge,Low Iq,Over current protection,Thermal shutdown |
| Operating temperature range(°C) |
-40 to 125 |
| Package |
DFN2×3-8 |
| Functional safety category |
|
- Input Voltage Range: 4V to 36V
- VABS = 40V
- VFB: 1.235V (±1%)
- Output Voltage Tolerance: ±1%
- Line Regulation: 0.2%/V
- Load Regulation: 0.25%
- PSRR: 60dB
- Noise Level: 150μVRMS
- Operating TJ: -40℃ to 125℃
- Auto Retry-During Fault Conditions
- Compact Package: DFN2×3-8
The SY20737H is a high-voltage input Linear Voltage Regulator (LDO) operating with input voltages from 4V to 36V and capable of delivering 500mA to a load, with ultralow ground current and low dropout voltage.
The SY20737H has an adjustable output that can be configured using two external resistors. The device offers protection features, including an over-current limit, output short and over-temperature protections.
The Enable input allows disabling the part to reduce power consumption. The High-Power Supply Rejection Ratio (PSRR) and low noise makes this part suitable for many applications in industrial and consumer products.
The SY20737H is available in a compact DFN 2mm×3mm-8pin package.
Evaluation Board
-

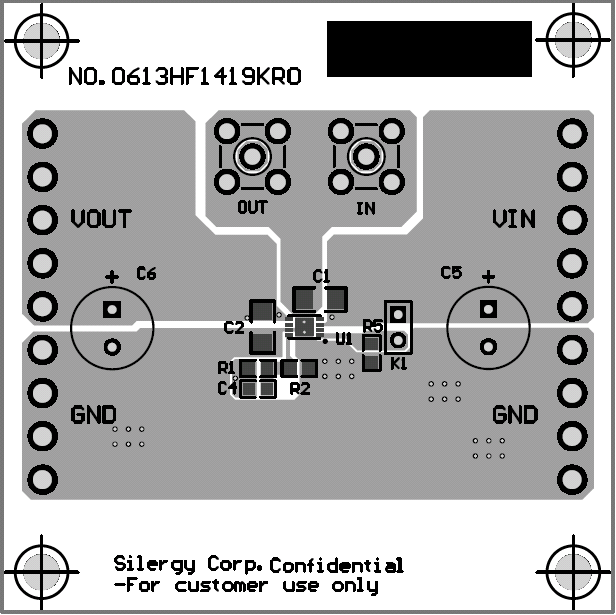

Photo of evaluation board
-

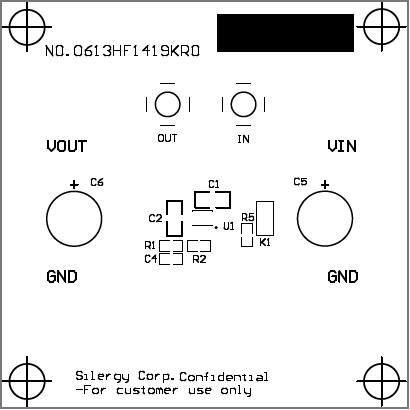

Photo of evaluation board
-
Photo of evaluation board
The EVB_SY20737HDGD is intended for evaulating the 36V input, 500mA LDO Regulator SY20737HDGD.
