SY20809ACC (SY6282ACC)

Production
6V, 3A Low Loss Power Distribution Switch
Datasheet
SY20809ACC 6V, 3A Low Loss Power Distribution Switch Datasheet
Part number SY20809ACC
Channel(#) 1
Vin (min) (V) 2.4
Vin (max) (V) 6
Iout (max) (A) 3
Iq (typ) (uA) 38
Protection mode Auto-recovery OCP,Auto-recovery OTP
Current limit (A) Adjustable
Ron (typ) (mΩ) 50
Enable logic High
Output discharge YES
Certification recognition
Features Reverse blocking
Package TSOT23-5
Operating temperature range(°C) -40 to 125
Functional safety category
  • Input Voltage: 2.4V to 6V
  • 3A Load Current Capability
  • Quiescent Current IQ 38µA (typ.)
  • Shutdown Current ISHDN 0.2µA (typ.)
  • Programmable Current Limit
  • Overtemperature Protection
  • Reverse Blocking (No Body Diode)
  • OUT Can be Forced Higher than IN During Shutdown
  • Compact Package: TSOT23-5
  • RoHS Compliant and Halogen Free

The SY20809 is an ultra-low RDS(ON) power distribution switch. It uses a resistor programmable current limit to protect the power source from overcurrent and short-circuit conditions.

The device incorporates short-circuit, overtemperature protection and a reverse blocking function to ensure reliable operation. Its low quiescent and very low shutdown currents make this part attractive for battery powered applications.

The SY20809 is available in a TSOT23-5 package.

Evaluation Board

  • 20809L-9

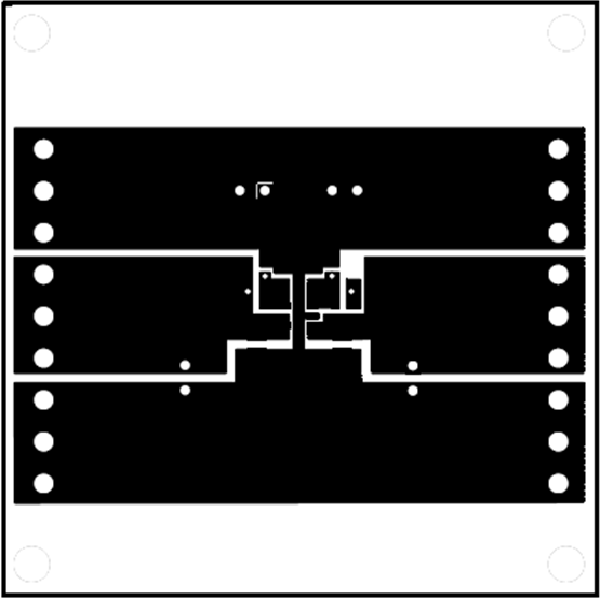

    Photo of evaluation board

  • 20809L-8

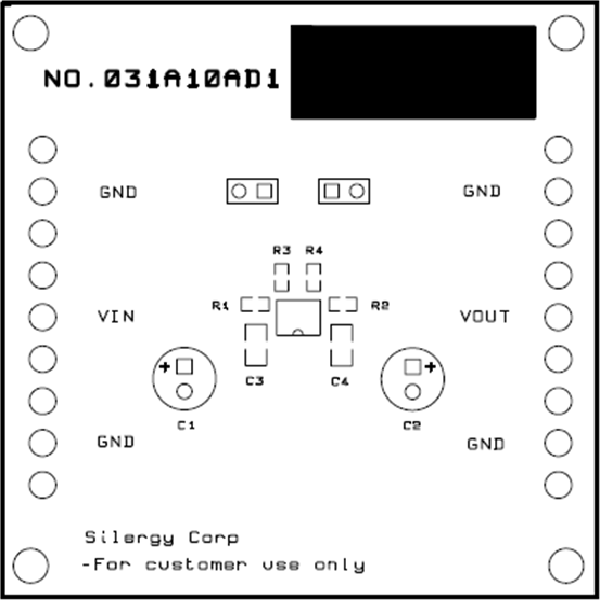

    Photo of evaluation board

  • 20809L-7

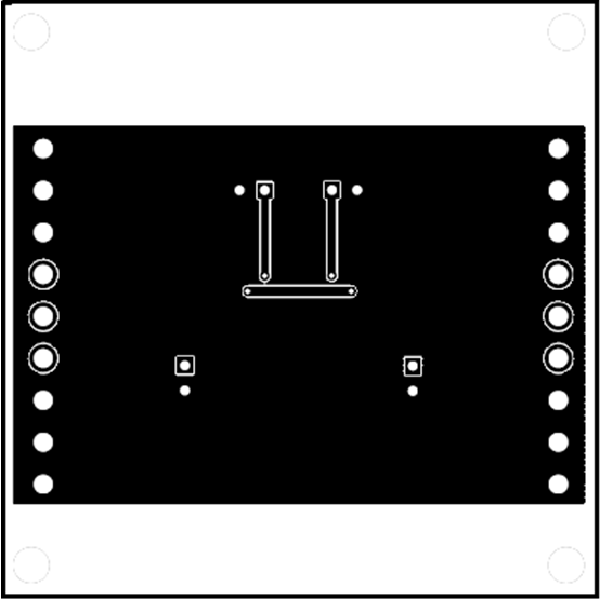

    Photo of evaluation board

EVB_SY20809ACC

The EVB_SY20809ACC is used to evaluate is an ultra-low RDS(ON) switch with programmable current limit to protect the power source from over current and short circuit conditions.

Technical Documentation

Title Date
Silergy_Catalog_Q2_2026 2026-06-12
