• Integrated Single Channel Load Switch
• V_BIAS Voltage Range: 2.5V to 5.5V
• V_IN Voltage Range: 0.6V to VBIAS
• On-Resistance

--R_ON = 2.8 mΩ (typical) at V_IN = 5 V (V_BIAS=5V)

--R_ON = 2.8 mΩ (typical) at V_IN = 3.3 V (V_BIAS=3.3V)

• 10-A Maximum Continuous Switch Current
• Quiescent Current

--I_Q__VBIAS = 63μA at V_BIAS = 5V

• Shutdown Current

--I_{SD_VBIAS} = 5.5μA at V_BIAS = 5V

--I_{SD_VIN} = 4nA at V_BIAS = 5V, V_IN = 5V

• Controlled and Adjustable Slew Rate through C_SST
• Power Good (PG) Indicator
• Compacted DFN2x3-10 package

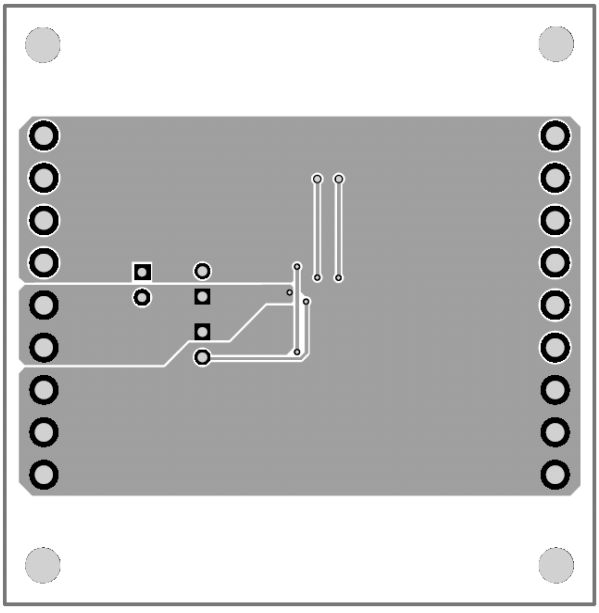

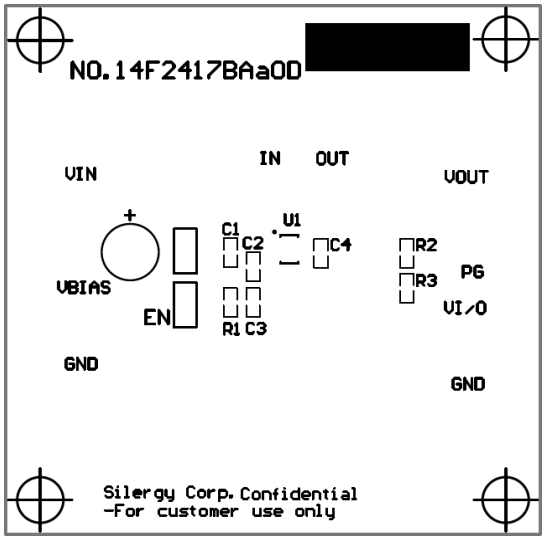

The SY20810 is a single-channel load switch with a 2.8mΩ resistance. It features a controlled and adjustable turn-on mechanism and comes with an integrated Power Good (PG) indicator.

The device contains an N-channel MOSFET that can operate over an input voltage range of 0.6V to 5.5V and can support a maximum continuous current of 10A. The wide input voltage range and high current capability enable the device to be used in various applications. The low ON resistance of 2.8mΩ minimizes the voltage drop across the load switch, effectively reducing power loss.

The device's controlled rise time significantly mitigates inrush current associated with large bulk load capacitances, effectively minimizing or eliminating power supply droop. The design flexibility is enhanced through the adjustable slew rate via CSST, allowing for a tradeoff between inrush current and power-up timing requirements. Additionally, the integrated PG indicator informs the system of the load switch status, aiding in seamless power sequencing.

The SY20810 is available in a compact DFN 2mm×3mm-10pin package with an integrated thermal pad, enabling efficient dissipation of high power. The device is designed for operation across a wide temperature range, from -40°C to +105°C in free-air conditions.
