SY20812AAAC (SY6280AAAC)

Production
5.5V, 2A Low Loss Power Distribution Switch
Datasheet
SY20812AAAC 5.5V, 2A Low Loss Power Distribution Switch Datasheet
Part number SY20812AAAC
Channel(#) 1
Vin (min) (V) 2.4
Vin (max) (V) 5.5
Iout (max) (A) 2
Iq (typ) (uA) 38
Protection mode Auto-recovery OCP,Auto-recovery OTP
Current limit (A) Adjustable
Ron (typ) (mΩ) 63
Enable logic High
Output discharge NO
Certification recognition
Features Reverse blocking,
Package SOT23-5
Operating temperature range(°C) -40 to 125
Functional safety category
  • Input Voltage: 2.4V to 5.5V
  • 2A Load Current Capability
  • Programmable Current Limit
  • Enable Polarity: Active High
  • Over Temperature Protection
  • Reverse Blocking (No Body Diode)
  • OUT Can be Forced Higher Than IN at Shutdown
  • No Output Discharge Function
  • Compact SOT23-5 Package Minimizes the Board Space

Evaluation Board

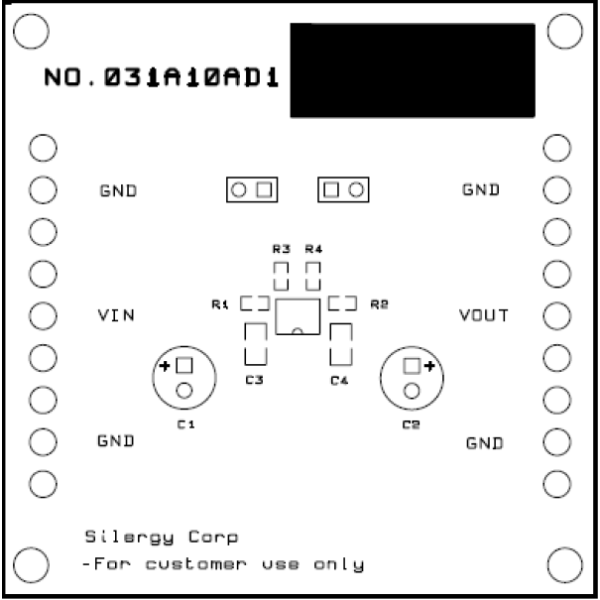

  • 6280-9

    Photo of evaluation board

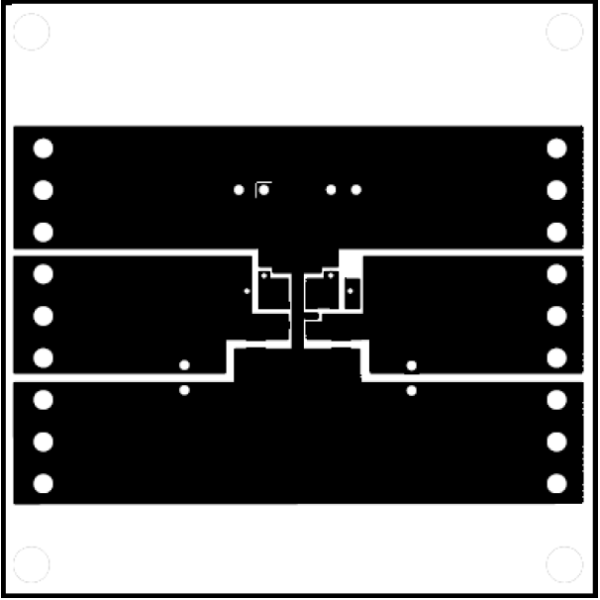

  • 6280-8

    Photo of evaluation board

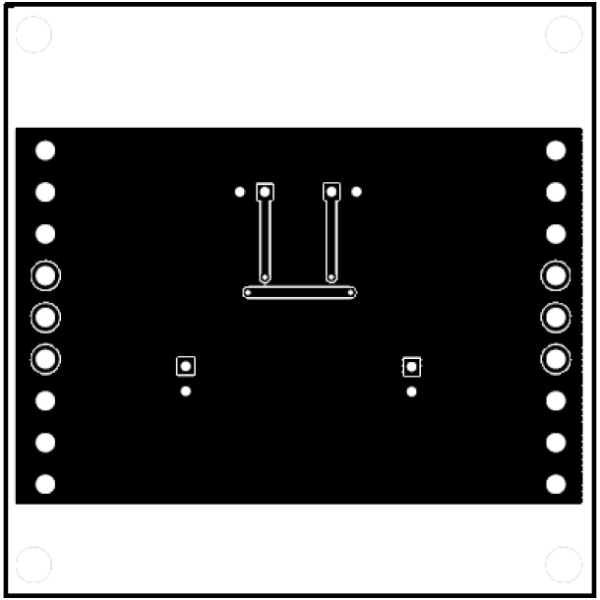

  • 6280-7

    Photo of evaluation board

EVB_SY20812AAAC

The EVB_SY20812AAAC is used to evaluate 5.5V, 2A Low Loss Power Distribution Switch.
