SY20822AAC (SY6821AAC)

Production
Single 3A, Ultra Low Loss Load Switch
Datasheet
SY20822AAC Single 3A, Ultra Low Loss Load Switch Datasheet
Part number SY20822AAC
Channel(#) 1
Vin (min) (V) 0.6
Vin (max) (V) 3.6
Iout (max) (A) 3
Iq (typ) (uA) 100
Ron (typ) (mΩ) 45
Current limit (A)
Soft start Adjustable
Output discharge Auto discharge
Features Programmable turn-on delay
Package SOT23-5
Operating temperature range(°C) -40 to 125
Functional safety category
  • Input Voltage Range: 0.6V to 3.6V
  • Bias Range: 2.5V to 5.5V
  • Low RDS(ON) for Internal Pass Switch:45mΩ
  • Maximum Output Current:3A
  • Accurate Turn On Threshold to Allow Programmable Turn On Delay to Enable Power Sequencing
  • Programmable Turn On Slew Rate
  • Quiescent Bias Current: 100μA
  • Automatic shutdown Discharge: 100Ω
  • RoHS Compliant and Halogen Free
  • Compact Package: SOT23-5



Evaluation Board

  • 6821-9

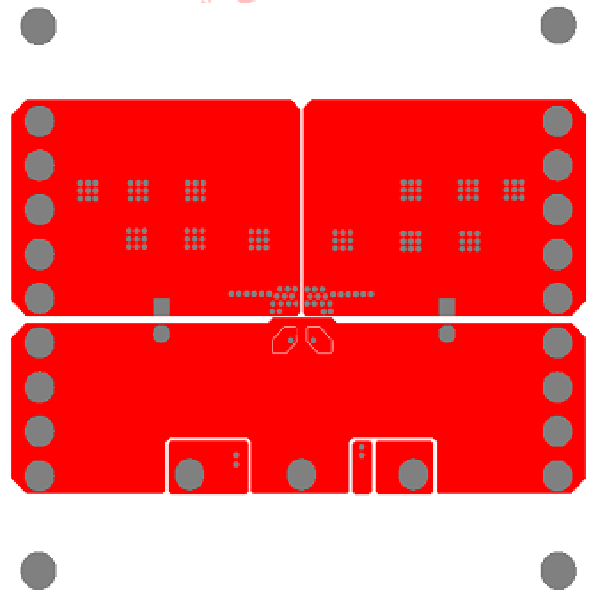

    Photo of evaluation board

  • 6821-8

    Photo of evaluation board

  • 6821-7

    Photo of evaluation board

EVB_SY20822AAC

The EVB_SY20822AAC is used to evaluate is a single 3A load switch, 2.5V-5.5V Vbias with internal charge pump.
