6.5V 5A Current Limit Switch with OVP Clamp
![]()
- Parameters
- Features
- Description
| Part number |
SY20855ADBC |
| Vin (min) (V) |
2.5 |
| Vin (max) (V) |
6.5 |
| Vabs cont. (max) (V) |
12 |
| Iout (max) (A) |
5 |
| Protection mode |
OCP,VCP,OTP |
| Over current response |
Current limiting |
| Current limit (A) |
Fixed |
| Fault response |
Auto-recovery |
| Ron (typ) (mΩ) |
40 |
| Certification recognition |
|
| Iq (typ) (uA) |
50 |
| Enable logic |
High |
| Soft start |
Adjustable |
| Features |
3.3V/5V Voltage Clamping |
| Package |
DFN3×3-10 |
| Operating temperature range(°C) |
-40 to 85 |
| Functional safety category |
|
- Input Voltage Range: 2.5V to 6.5V with Surge Up to 12V
- 5A Fixed Current Limit
- Ultra Low Bias Current: 50uA (typ.)
- Extremely Low RDS(ON) for the Integrated Protection Switch: 40 mΩ
- Programmable Soft-Start Time
- Short-Circuit Protection
- Selectable Input Range and Output Clamping Voltage
- Enable Interface Pin
- Thermal Shutdown Protection & Auto Recovery
- RoHS Compliant and Halogen Free
- Compact package: DFN3×3-10
The SY20855A is a current limit switch with input voltage range selection and output voltage clamping. Extremely low RDS(ON) of the integrated protection N-channel MOSFET helps to reduce power loss during normal operation. The programmable soft-start time controls the slew rate of the output voltage during start-up.
The SY20855A uses an enable control for system sequencing. The device integrates short-circuit and over-temperature protections.
The SY20855A is available in a compact DFN 3mmx3mm-10 pin package.

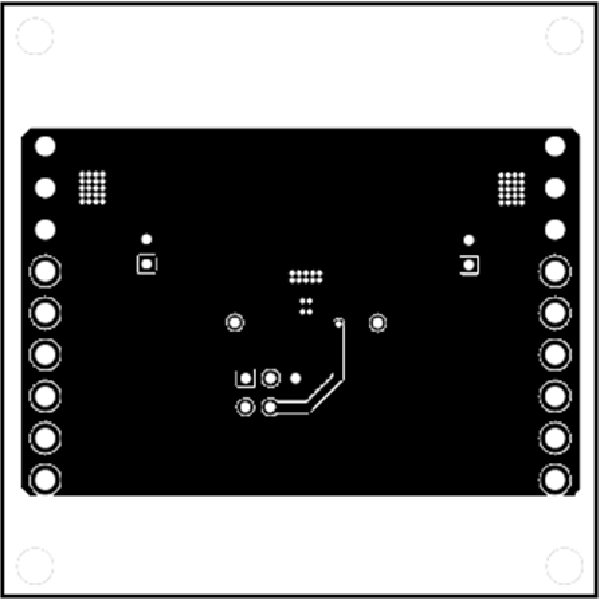

Evaluation Board
-
Photo of evaluation board
-
Photo of evaluation board
-
Photo of evaluation board
The EVB_SY20855ADBC is intended for evaluating a current limit switch with input voltage range selection and output voltage clamping.
