SY21036ABC (SY8301ABC)

Production
High Efficiency, 1A 40V Input Buck
Datasheet

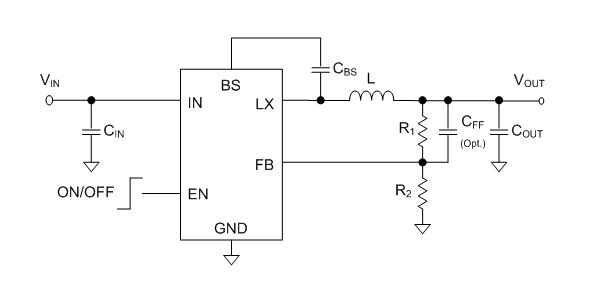

SY21036ABC High Efficiency, 1A 40V Input Buck Datasheet
    Part NumberSY21036ABC
    Vin_min (V)4.5
    Vin_max (V)40
    Vo_min (V)0.8
    Io_max (A)1
    Vref Accuracy
    Fsw (MHz)2
    Iq (uA)18
    PackageSOT23-6
    Protection ModeHic-cup SCP
    Features / Special Function
    • Low RDS(ON) for Internal Switches (Top/Bottom):380mΩ/180mΩ
    • 4.5-40V Input Voltage Range
    • 1A Output Current Capability
    • 2MHz Fixed Switching Frequency
    • 0.8V±1.0% Reference Voltage
    • Low Quiescent Current
    • Internal Soft-start Limits the Inrush Current
    • Hic-cup Mode Output Short Circuit Protection
    • Thermal Shutdown and Auto Recovery
    • Compact Package: SOT23-6

    Evaluation Board

    • 21036-1

      Photo of evaluation board

    • 21036-2

      Photo of evaluation board

    • 21036-3

      Photo of evaluation board

    EVB_SY21036ABC

    The EVB_SY21036ABC is intended for evaluating fast response, 1A, 40V synchronous Buck regulator.
