High Efficiency Fast Response, 2A, 18V Input 1MHz Synchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part number |
SY21081ABC |
| Channel(#) |
|
| Vin (min) (V) |
4.5 |
| Vin (max) (V) |
18 |
| Switching frequency (min)(kHz) |
|
| Switching frequency (max)(kHz) |
|
| Vout (min) (V) |
0.6 |
| Vout (max) (V) |
|
| Iout (max) (A) |
2 |
| Vout2 (min)(V) |
|
| Vout2 (max )(V) |
|
| Iout2 (max)(A) |
|
| Vref accuracy (±%) |
± 2% |
| Vout accuracy(±%) |
|
| Control mode |
|
| Duty cycle (max)(%) |
|
| Operation mode |
|
| Iq (typ) (uA) |
|
| Features |
|
| Package |
SOT23-6 |
| Operating temperature range(°C) |
|
| Functional safety category |
|
· Low RDS(ON) for internal switches (top/bottom):140/130 mΩ
· 4.5-18V input voltage range
· 2A load current capability
· Instant PWM architecture to achieve fast transient responses
· Internal softstart limits the inrush current
· 2% 0.6V reference
· RoHS Compliant and Halogen Free
· Compact package: SOT23-6/ DFN2x2-6

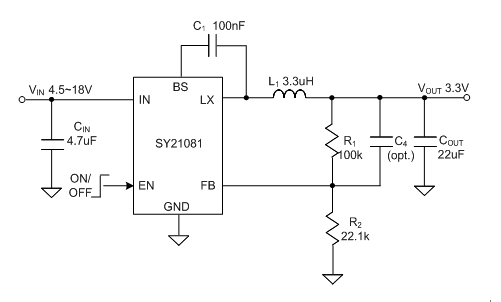

SY21081 develops high efficiency synchronous step-down DC-DC converter capable of delivering 2A load current. SY21081 operates over a wide input voltage range from 4.5V to 18V and integrates main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
SY21081 adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates at pseudo-constant frequency of 1 MHz under heavy load conditions to minimize the size of inductor and capacitor.
Evaluation Board
-
Photo of evaluation board
-
Photo of evaluation board
-
Photo of evaluation board
