SY21113E1ADC (SY8113E1ADC)
High Efficiency, Fast Response, 3.0A, 18V Input Synchronous Step Down Regulator
![]()
- Parameters
- Features
- Description
| Part number |
SY21113E1ADC |
| Channel(#) |
|
| Vin (min) (V) |
4.5 |
| Vin (max) (V) |
18 |
| Switching frequency (min)(kHz) |
|
| Switching frequency (max)(kHz) |
|
| Vout (min) (V) |
0.6 |
| Vout (max) (V) |
|
| Iout (max) (A) |
3 |
| Vout2 (min)(V) |
|
| Vout2 (max )(V) |
|
| Iout2 (max)(A) |
|
| Vref accuracy (±%) |
±1.5% |
| Vout accuracy(±%) |
|
| Control mode |
|
| Duty cycle (max)(%) |
|
| Operation mode |
|
| Iq (typ) (uA) |
|
| Features |
|
| Package |
TSOT23-6 |
| Operating temperature range(°C) |
|
| Functional safety category |
|
- Low RDS(ON) for Internal Switches (Top/Bottom): 80mΩ/40mΩ
- 4.5-18V Input Voltage Range
- 3A Output Current Capability
- 500 kHz Switching Frequency Minimize the External Components
- Stable with 10µF COUT and 2.2µH Inductor
- Instant PWM Architecture to Achieve Fast Transient Responses
- Internal Soft-start Limits the Inrush Current
- Forced PWM Operation
- Cycle-by-cycle Peak/Valley Current Limitation
- Hic-cup Mode Output Short Circuit Protection
- Thermal Shutdown with Auto Recovery
- Output Auto Discharge Function
- Compact Package: TSOT23-6

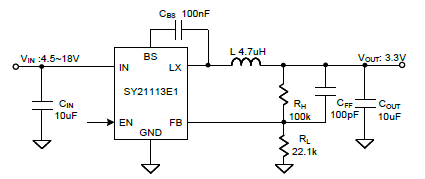

The SY21113E1 is a high efficiency, 500 kHz synchronous step-down DC/DC regulator capable of delivering up to 3A load current. It can operate over a wide input voltage range from 4.5V to 18V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
The SY21113E1 adopts the instant PWM architecture to achieve fast transient responses for high step down applications. In addition, it operates at pseudo-constant frequency of 500 kHz to minimize the size of the inductor and the capacitor.
Evaluation Board
-
Photo of evaluation board
-
Photo of evaluation board
-
Photo of evaluation board
The EVB_SY21113E1ADC is intended for evaluating 3A, 18V, 500kHz synchronous Buck regulator.
